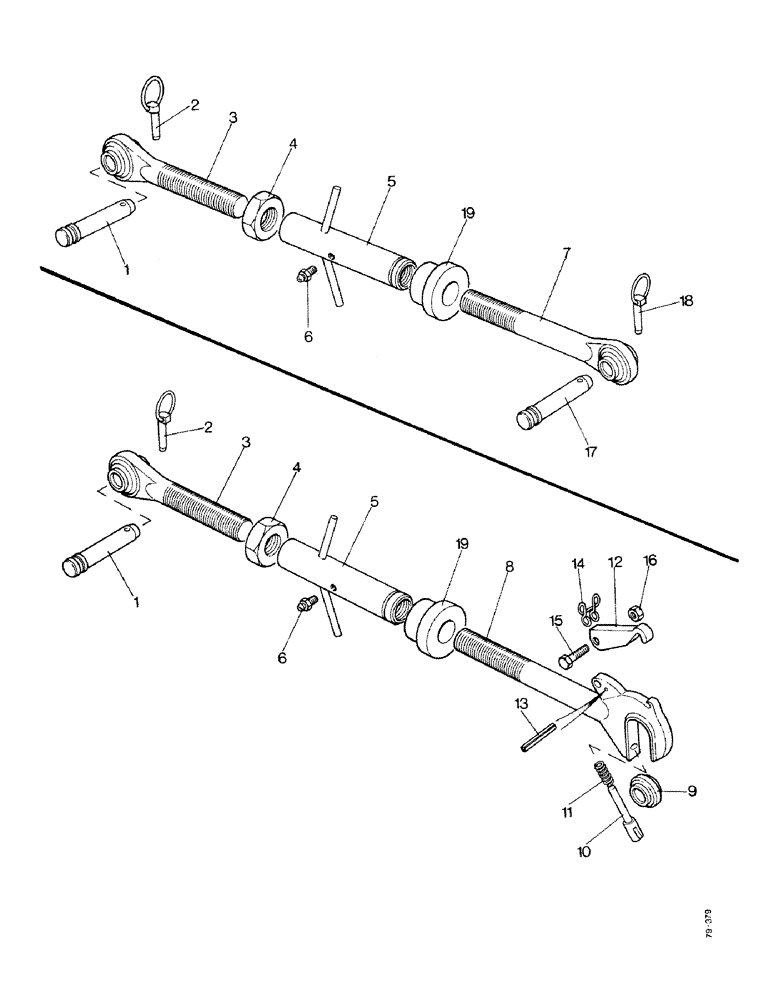

Запчасти Case IH 1490 (L06-1) - LIFT LINK, LOW PROFILE AND HIGH PLATFORM (09) - IMPLEMENT LIFT

1

K919725

PIN,19.05mm OD x 111.13mm L

LINK PIN - sensing unit

1шт.

2

K66408

PIN

- klik

1шт.

UK4605

LINK

ASSEMBLY - lift, Includes: Ref. 3 - 7

1шт.

3

K920798

BALL

SCREW HOUSING - tractor end

1шт.

4

K19448

LOCK NUT

LOCKNUT - 1-1/4 BSF

1шт.

5

K920800

TURNBUCKLE

- link

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

7

K964864

SHAFT

SCREW AND HOUSING - implement end

1шт.

UK4606

LINK

LIFT LINK ASSEMBLY - hitch, Includes: Ref. 3 - 16

1шт.

3

K920798

BALL

SCREW AND HOUSING - tractor end

1шт.

4

K19448

LOCK NUT

LOCKNUT - 1-1/4 BSF

1шт.

5

K920800

TURNBUCKLE

- link

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

8

K201785

HOOK

SCREW AND HOOK - implement end, Includes: Ref. 9 - 16

1шт.

9

K201787

BALL

- pivot

1шт.

10

K201788

PIN

RETAINING PIN - retaining

1шт.

11

K201789

SPRING

- hook

1шт.

12

K201790

LEVER

- release

1шт.

13

K201791

PIN

- 5/32 x 3/4" (3.969 x 19.05 mm)

1шт.

14

K201792

SPRING

EYE - spring

2шт.

15

K201793

BOLT

- 5/16 Whitworth x 1-3/8"

1шт.

16

K201731

NUT

- 5/16 Whitworth, self-locking

1шт.

17

K65690

HITCH PIN

LINK PIN - implement

1шт.

18

A33509

PIN,11.18mm OD

- klik

1шт.

19

K203566

BUSHING

- top link

1шт.

K303358

LATCH

HOOK - link

1шт.

K692198

WASHER

- link

1шт.
