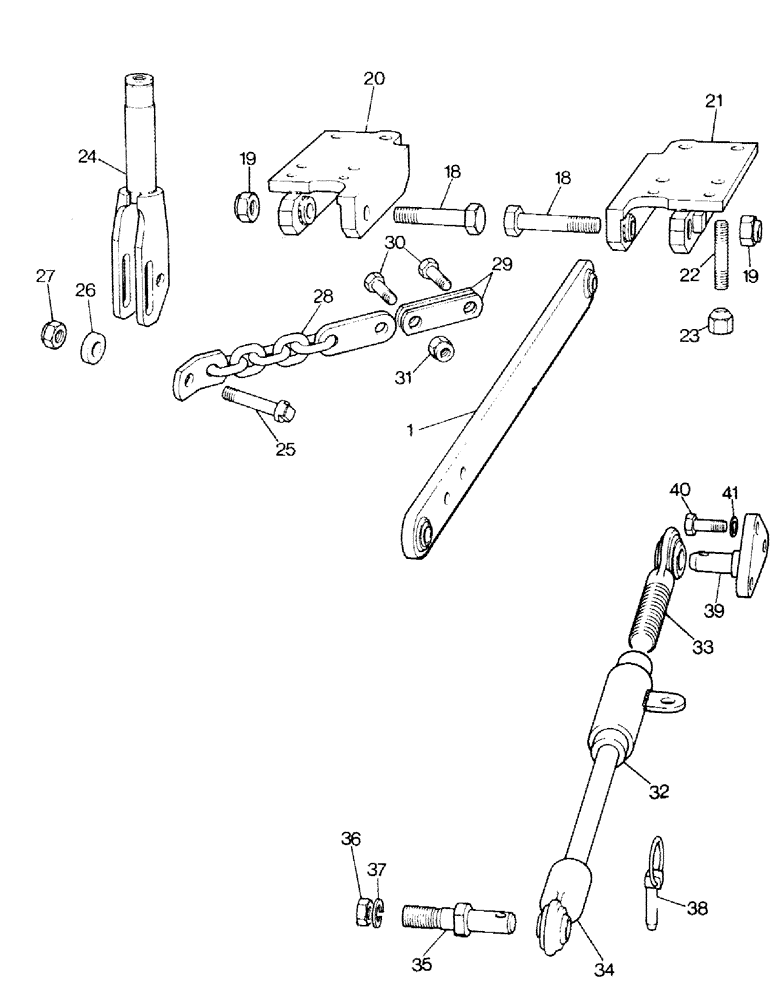

Запчасти Case IH 1490 (L04-1) - LOWER LINK AND STABILIZER (09) - IMPLEMENT LIFT

1

K202765

LINK

LOWER LINK

2шт.

18

K612065

BOLT

- 1-1/8 UNF x 5"

2шт.

19

K617595

LOCK NUT

- 1-1/8 UNF, self locking

2шт.

20

K203394

BRACKET

HITCH BRACKET - left hand

1шт.

21

K203397

BRACKET

HITCH BRACKET - right hand

1шт.

22

K608703

STUD

- 3/4 UNC/UNF x 4", brackets to rear axle

8шт.

23

K617176

NUT

- 3/4 UNF special, brackets to rear axle

8шт.

24

K203400

FORK

END - lift rod and levelling rear

2шт.

25

K201523

BOLT

BOLT - 7/8" UNC special

2шт.

26

K948365

COLLAR

2шт.

27

K607464

NUT

- 3/4 UNC, self locking

2шт.

28

K946107

CHAIN (AG)

CHECK CHAIN

2шт.

29

K924022

PLATE

CONNECTING PLATE

2шт.

30

K600804

BOLT

- 1/2 UNC x 1-3/4"

4шт.

31

K607462

NUT

- 1/2 UNC, self locking

4шт.

UK4621

LINKAGE

STABILIZER UNIT, Includes: Ref. 32 - 41

1шт.

32

K954646

STABILIZER

BAR ASSEMBLY, Includes: Ref. 33 and 34

2шт.

33

K914993

END

BALL HOUSING - front

1шт.

34

K954647

TIE-ROD,8.125" L

TUBE AND BALL HOUSING - rear

1шт.

35

K203465

PIN

- lower link

2шт.

36

280954

NUT,3/4"-10, G5

- 3/4 UNC

2шт.

37

K19486

WASHER, LOCK

WASHER - lock, 3/4"

2шт.

38

K920359

PIN

- klik

4шт.

39

K922664

PLATE

BRACKET - normal clearance

2шт.

40

K603274

SCREW

BOLT - 5/8 UNC x 1-3/8"

6шт.

41

K19485

WASHER

- lock, 5/8"

6шт.
