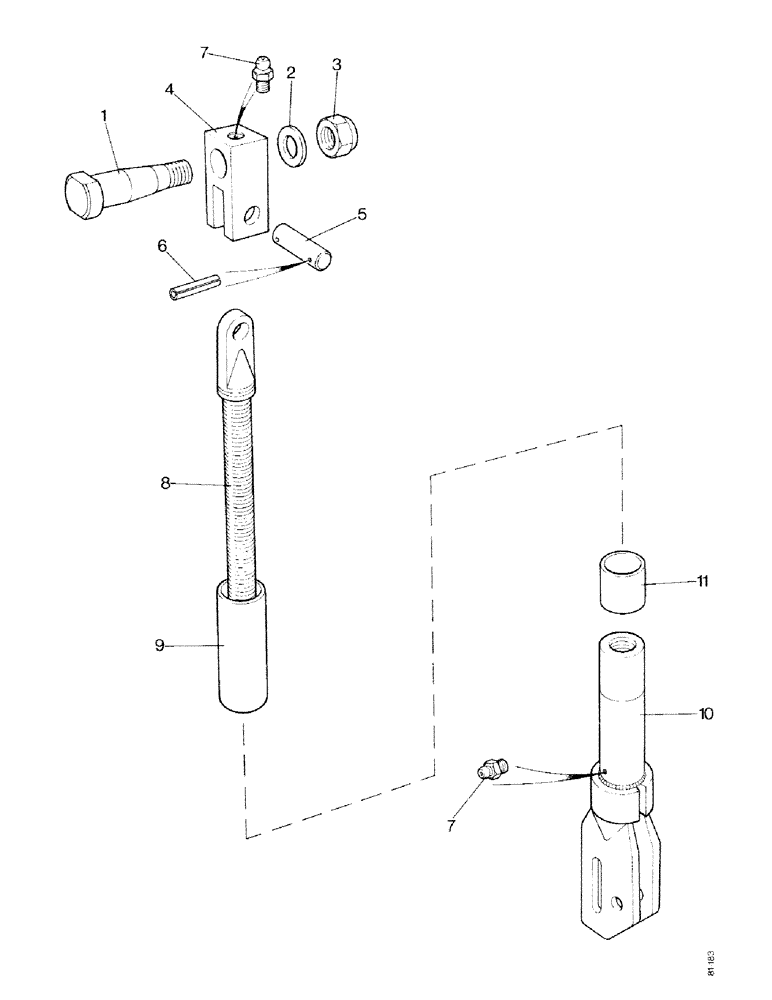

Запчасти Case IH 1490 (L03-1) - LIFT LINK, LOW PROFILE, HIGH PLATFORM, CAB (09) - IMPLEMENT LIFT

1

K914191

PIN

BOLT - 3/4 UNC, special

1шт.

2

K19476

WASHER

- 3/4" (19.05 mm)

1шт.

3

K607446

NUT

- 3/4 UNC, self-locking

1шт.

K203406

ROD

LIFT ROD ASSEMBLY, Includes: Ref. 4 - 11

1шт.

4

K921914

FORK

END - ramshaft

1шт.

5

K948353

PIVOT PIN

- 5/8 x 2-1/4" (15.875 x 57.15 mm)

1шт.

6

K623740

SPLIT PIN/SAFETY PIN

PIN - 3/16 x 7/8" (4.762 x 22.225 mm)

2шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

8

K962976

ADJUSTMENT SCREW

ADJUSTING SCREW - with tube, Includes: Ref. 9

1шт.

9

K940509

TUBE,1.75" DIA x 7.125" L

1шт.

10

K203400

FORK

END - lower link

1шт.

11

K202602

BUSHING

SPACER (High Platform, Cab)

2шт.
