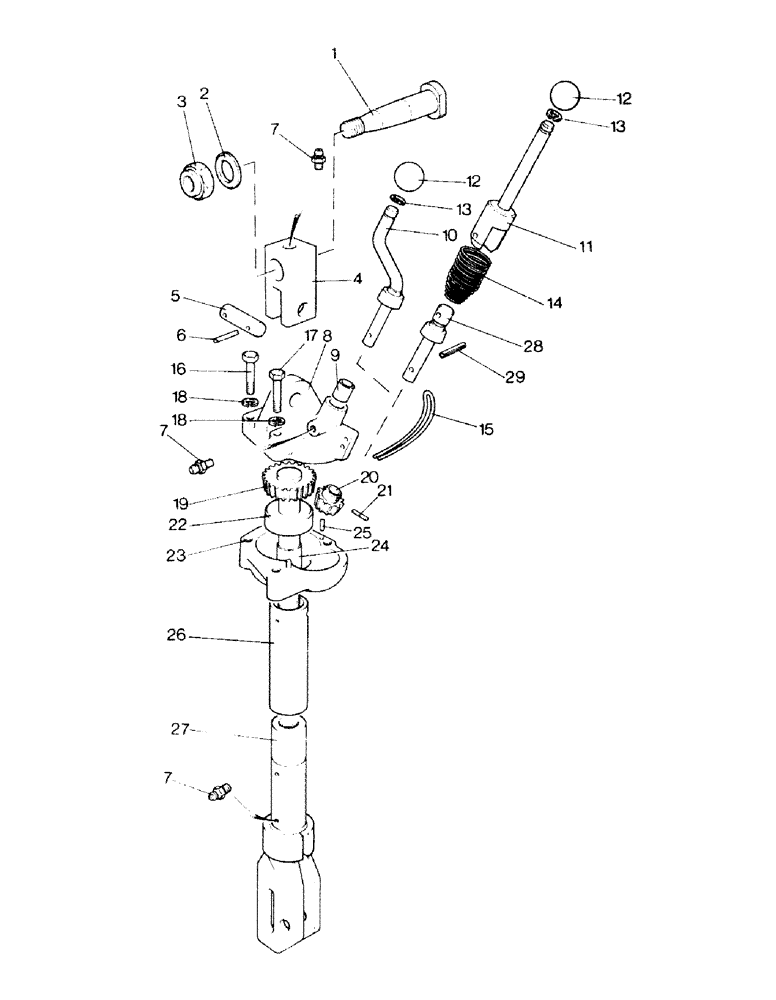

Запчасти Case IH 1490 (L02-1) - LEVELLING LEVER, LOW PROFILE, HIGH PLATFORM, CAB (09) - IMPLEMENT LIFT

1

K914191

PIN

BOLT - 3/4 UNC, special, Serial Range: lever-ramshaft

1шт.

2

K19476

WASHER

- 3/4" (19.05 mm), Serial Range: lever-ramshaft

1шт.

3

K607446

NUT

- 3/4 UNC, self-locking, Serial Range: lever-ramshaft

1шт.

K203404

LEVER

LEVELLING LEVER ASSEMBLY (Low Profile), IncludesL Ref. 4 - 28

1шт.

K204915

LEVER

LEVELLING LEVER ASSEMBLY (High Platform, Cab), Includes: Ref. 4 - 28

1шт.

4

K921914

FORK

END - ramshaft

1шт.

5

K948353

PIVOT PIN

- 5/8 x 2-1/4" (15.875 x 57.15 mm)

1шт.

6

K623740

SPLIT PIN/SAFETY PIN

PIN - 3/16 x 7/8" (4.762 x 22.225 mm)

2шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

3шт.

8

K962691

COVER

CAP - with bushings

1шт.

9

K621340

BUSHING

2шт.

10

K919761

LEVER

HANDLE - with knob (Low Profile), Includes: Ref. 12 and 13

1шт.

11

K204898

LEVER

HANDLE - with knob (High Platform, Cab), Includes: Ref. 12 and 13

1шт.

Also needs K206042 latch and K206043 clip.

1шт.

12

K919763

BUTTON

KNOB

1шт.

13

K621790

RING, SNAP

RING - snap, 1/2" (12.7 mm) internal

1шт.

14

K204914

SPRING

- (High Platform, Cab)

1шт.

15

K924723

SPRING

LATCH (Low Profile)

1шт.

16

K600475

BOLT

- 3/8 UNC x 1-1/2"

2шт.

17

K600407

BOLT

- 3/8 UNC x 1-7/8"

2шт.

18

K19482

SPRING WASHER

WASHER - lock, 3/8"

4шт.

19

K924725

SHAFT

BEVEL GEAR - with shaft

1шт.

20

K919769

GEAR

BEVEL PINION

1шт.

21

K623946

PIN

- 5/32 x 15/16" (3.969 x 23.812 mm)

1шт.

22

K19187

THRUST BEARING

BEARING

1шт.

23

K962975

HOUSING

GEAR HOUSING ASSEMBLY, Includes: Ref. 24 and 25

1шт.

24

K621339

BUSHING

2шт.

25

K32063

PIN

DOWEL - 3/16 x 1/2" (4.762 x 12.7 mm)

2шт.

26

K940510

TUBE,1.75" ID x 6.187" L

1шт.

27

K203400

FORK

END - lower links

1шт.

28

K954077

SHAFT

- bevel pinion (High Platform, Cab)

1шт.

29

K691356

PIN

- 5 x 25 mm (High Platform, Cab)

1шт.
