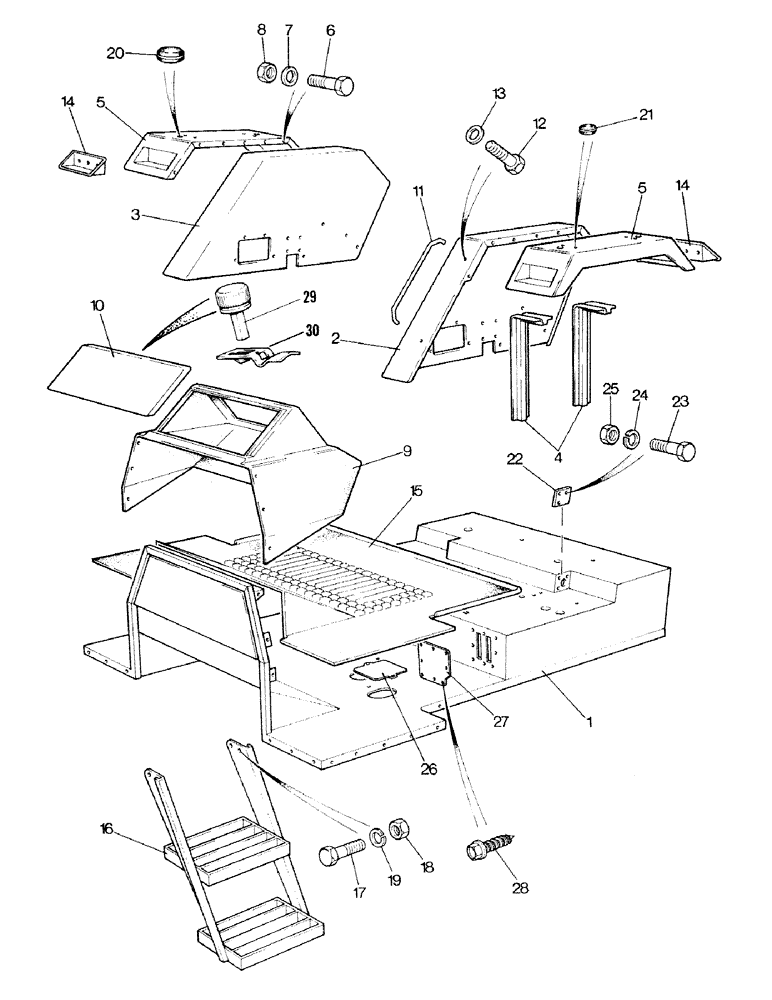

Запчасти Case IH 1490 (N12-1) - HIGH PLATFORM (08) - SHEET METAL

1

K301481

NO LONGER SERVICED

HIGH PLATFORM - operator, Includes: Ref. 2 - 15

1шт.

2

K302015

FENDER

- left-hand (Sekura 43219)

1шт.

3

K302016

FENDER

- right-hand (Sekura 43220)

1шт.

4

K303819

BRACKET

SUPPORT BRACKET - (Sekura 416014)

4шт.

5

K302019

EXTENSION

- fenders (Sekura 43162)

2шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

14шт.

7

K651778

WASHER

- 8 mm

14шт.

8

825-1108

NUT,Hex, M8, Cl 8

1шт.

9

K302013

PANEL

INSTRUMENT PANEL - (Sekura 23501)

1шт.

10

K302014

COVER

- (Sekura 43164)

1шт.

11

K302024

HANDLE

GRAB HANDLE - (Sekura 43196)

1шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

2шт.

13

K651778

WASHER

- 8 mm

2шт.

14

K303612

HOUSING

- side/rear lamps (Sekura 23355)

4шт.

15

K302023

FLOOR

MAT - (Sekura 416012) (Replaces K303023)

1шт.

16

K303775

STEP

- (Sekura 43010)

1шт.

17

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

4шт.

18

825-1108

NUT,Hex, M8, Cl 8

4шт.

19

K651848

WASHER

- lock

4шт.

20

K627711

PLUG

- flood lamp holes

4шт.

21

K627713

PLUG

- fenders

2шт.

22

K302955

COVER

PLATE - cab floor, 2WD tractors

1шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

3шт.

24

K651848

WASHER

- lock, 8 mm

3шт.

25

825-1108

NUT,Hex, M8, Cl 8

3шт.

26

K303513

COVER

PLATE - floor

2шт.

27

K301350

PLATE

- power-shift tractors

1шт.

28

K652829

SCREW

- self-tapping, no. 10 x 16 mm

8шт.

29

K303817

FASTENER

- cover (Sekura 970433)

1шт.

30

K303818

RETAINER

RETAINING SPRING - fastener (Sekura 970432)

1шт.
