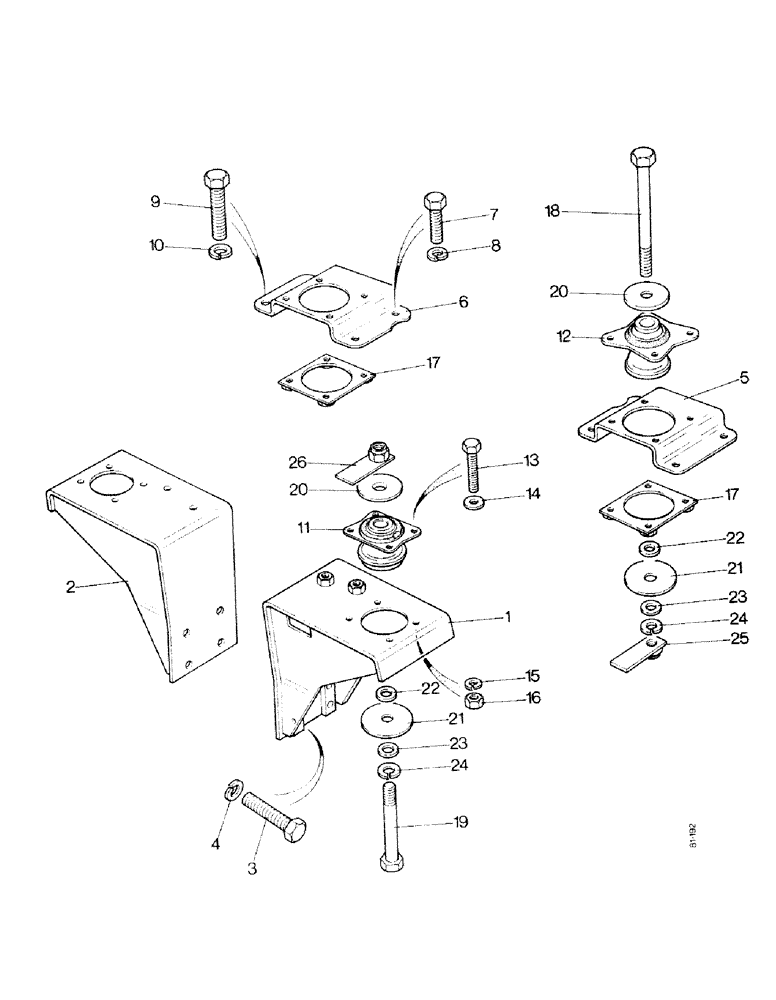

Запчасти Case IH 1490 (N11-1) - MOUNTING BRACKETS, HIGH PLATFORM (08) - SHEET METAL

1

K201510

BRACKET

SUPPORT BRACKET - left-hand front

1шт.

2

K201599

BRACKET

SUPPORT BRACKET - right-hand front

1шт.

3

K603307

SCREW

SETSCREW - 5/8 UNC x 1-5/8", bracket to main frame

8шт.

4

K19485

WASHER

- lock, 5/8", bracket to main frame

8шт.

5

K201651

MOUNTING PARTS

SUPPORT BRACKET - left-hand rear

1шт.

6

K201654

BRACKET

SUPPORT BRACKET - right-hand rear

1шт.

7

K603140

SCREW

SETSCREW - 1/2 UNC x 1-1/8", brackets to rear axle

4шт.

8

K626345

LOCK WASHER

WASHER - lock, 1/2", brackets to rear axle

4шт.

9

K603307

SCREW

SETSCREW - 5/8 UNC x 1-5/8", brackets to final drives

4шт.

10

K19485

WASHER

- lock, 5/8", brackets to final drives

4шт.

11

K949839

BUMPER

RUBBER MOUNTING - front

2шт.

12

K949838

DAMPER

RUBBER MOUNTING - rear

2шт.

13

K602936

SCREW,3/8" - 16 x 1 1/2", Gr S

SETSCREW - 3/8 UNC x 1-1/4"

16шт.

14

K19472

WASHER

- 3/8" (9.525 mm)

16шт.

15

K19482

SPRING WASHER

WASHER - lock, 3/8"

16шт.

16

280136

NUT,3/8"-16, G8

Front mountings 3/8"-16, G8

8шт.

17

K203523

NUT

FASTENING PLATE - rear mountings

2шт.

18

K601378

BOLT

- 5/8 UNC x 6-1/2", mountings to high platform

2шт.

19

K601332

BOLT

- 5/8 UNC x 4", mountings to high platform

2шт.

20

K949668

WASHER

- 5/8 x 3-5/16", special (15.875 x 84.138 mm) mountings to high platform

4шт.

21

K955087

WASHER

- 5/8 x 3-1/2", special (15.875 x 88.9 mm) mountings to high platform

4шт.

22

K626930

WASHER

- 5/8 x 1-1/8", special (15.875 x 28.575 mm) mountings to high platform

4шт.

23

K626855

WASHER

- 5/8 (15.875 mm) mountings to high platform

4шт.

24

K19485

WASHER

- lock, 5/8", mountings to high platform

4шт.

25

K203647

NUT

- 5/8 UNC, special, mountings to high platform

2шт.

26

K203648

NUT

- 5/8 UNC, special, mountings to high platform

2шт.
