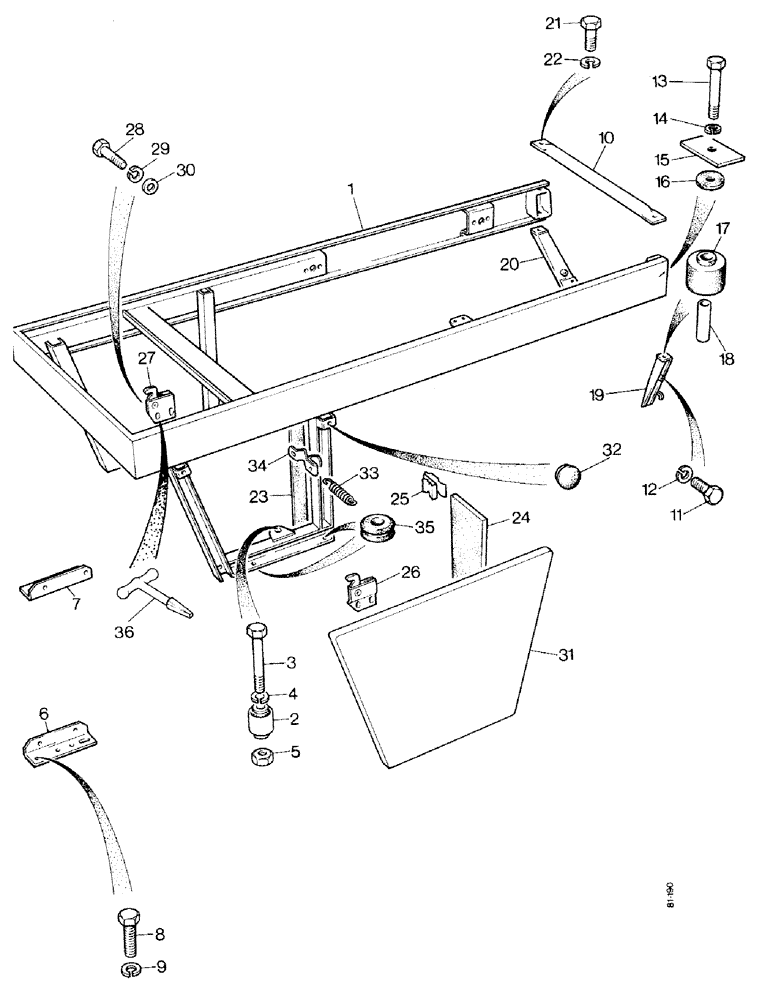

Запчасти Case IH 1490 (N09-1) - ENGINE COVER, FRAME, HIGH PLATFORM (08) - SHEET METAL

1

K300291

SUPPORT

FRAME - engine cover

1шт.

2

K622851

BUSHING

FLEXIBLE MOUNTING

2шт.

3

K650648

BOLT

- M8 x 50

2шт.

4

K651848

WASHER

- lock, 8 mm

2шт.

5

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

6

K300292

BRACKET

- left-hand

1шт.

7

K300294

BRACKET

- right-hand

1шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bracket to front extension Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

9

K19482

SPRING WASHER

WASHER - lock, 3/8", bracket to front extension

4шт.

10

K302606

BRACKET

STRUT - rear

1шт.

11

K650641

SCREW

SETSCREW - M8 x 16

2шт.

12

K651848

WASHER

- lock, 8 mm

2шт.

13

K653830

BOLT

BOLT - M6 x 40, frame to rear supports

2шт.

14

K651847

WASHER, LOCK

WASHER - lock, 6 mm, frame to rear supports

2шт.

15

K915726

PLATE

CLAMPING PLATE - frame to rear supports

2шт.

16

K915725

WASHER

RUBBER WASHER - frame to rear supports

2шт.

17

K626462

DAMPER

RUBBER SPACER - frame to rear supports

2шт.

18

K627007

TUBE,0.375" OD x 1.016" L

SLEEVE

2шт.

19

K300600

SUPPORT

- left-hand rear

1шт.

20

K300608

SUPPORT

- right-hand rear

1шт.

21

K602982

SCREW,3/8" - 16 x 3/4", Gr S

SETSCREW - 3/8 UNC x 3/4", supports to clutch housing

4шт.

22

K19482

SPRING WASHER

WASHER - lock, 3/8", supports to clutch housing

4шт.

23

K301073

STRIP

SEALING STRIP - radiator side

2шт.

24

K301072

SEAL

- side panel

2шт.

25

K621744

CLIP

8шт.

26

K300500

LOCK

- left-hand

1шт.

27

K300499

LOCK

- right-hand

1шт.

28

K650628

BOLT

- M6 x 20

4шт.

29

K651847

WASHER, LOCK

WASHER - lock, 6 mm

4шт.

30

K651777

WASHER

- 6 mm

4шт.

31

K300267

PANEL

SIDE PANEL

2шт.

32

K627771

BUTTON

RUBBER PLUG

4шт.

33

K624940

SPRING

2шт.

34

K915791

GRIP

FINGER GRIP

2шт.

35

K627754

GROMMET

- 14 mm

4шт.

36

K946448

GRIP

KEY - lock

1шт.
