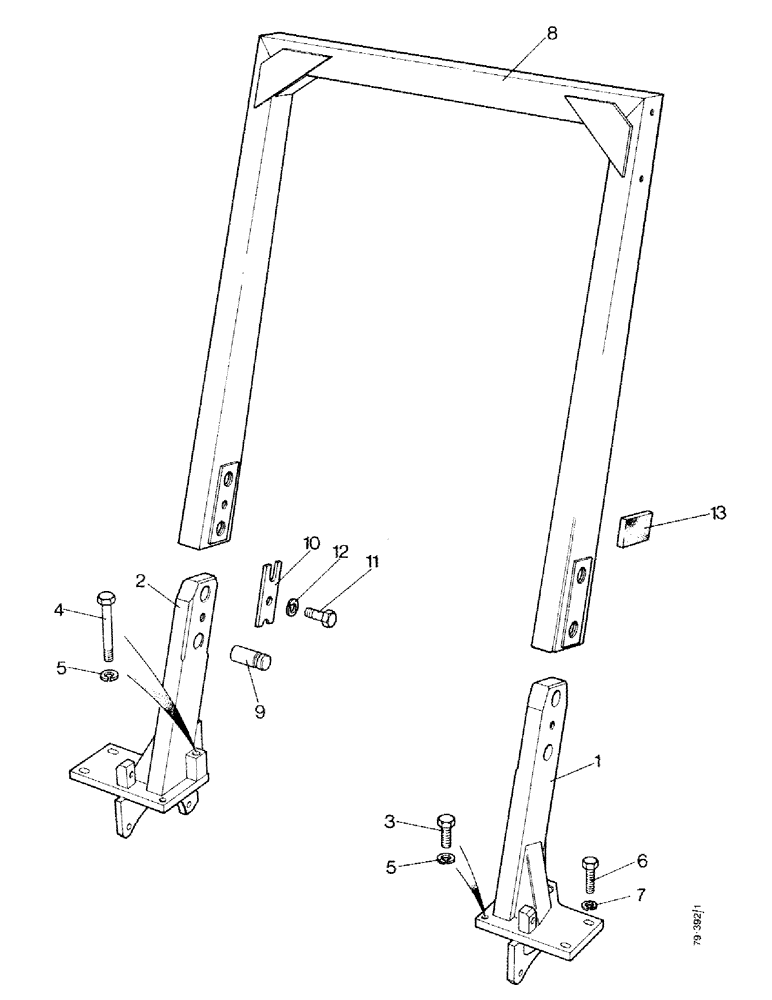

Запчасти Case IH 1490 (N07-1) - TWO POST ROLL BAR (U4701/11), LOW PROFILE (08) - SHEET METAL

1

K302800

BAR

SUPPORT - left-hand

1шт.

2

K302801

BAR

SUPPORT - right-hand

1шт.

3

K603143

SCREW

SETSCREW - 1/2 UNC x 1-1/2", supports to rear axle

2шт.

4

K600907

BOLT

- 1/2 UNC x 5", supports to rear axle

2шт.

5

K626345

LOCK WASHER

WASHER - lock, 1/2", supports to rear axle

4шт.

6

K601360

BOLT

- 5/8 UNC x 2-1/2", supports to final drives

4шт.

7

K19485

WASHER

- lock, 5/8", supports to final drives

4шт.

8

K300161

BAR

ROLL BAR

1шт.

9

K301379

PIN

4шт.

10

K301380

PLATE

LOCATING PLATE

2шт.

11

K601465

BOLT

- 3/4 UNC x 2-1/4"

2шт.

12

K19486

WASHER, LOCK

WASHER - lock, 3/4"

2шт.

13

K302607

PAD

- roll, Serial Range: bar-fender

2шт.

A165090

FOUR POST ROPS - complete with seat belt and hardware (Sims B-1000-0705) (Machinery item) (Not illustrated), low profile

1шт.

A164851

COVER

CANOPY - (Machinery item) (Not illustrated), 4 post rops low profile

1шт.
