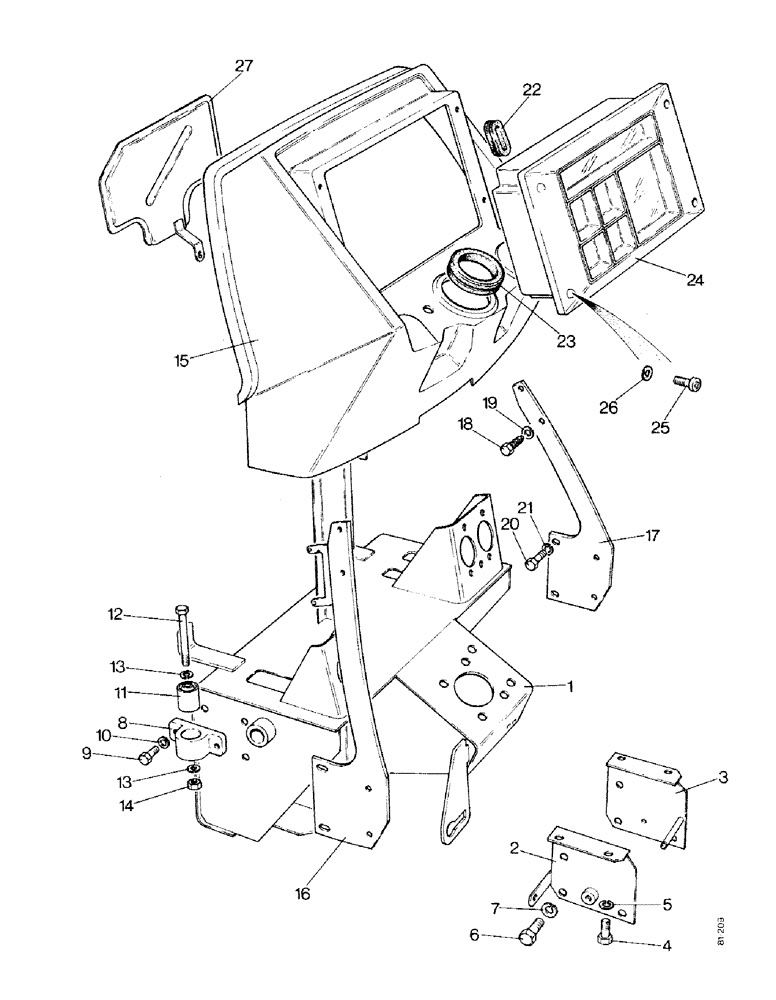

Запчасти Case IH 1490 (N06-1) - INSTRUMENT PANEL AND PEDAL SUPPORT, LOW PROFILE (08) - SHEET METAL
№
Артикул
Название
Примечание
Количество
1
K302660
PEDAL
SUPPORT BRACKET - pedals, Start Serial: 11182354
1шт.
1
K202021
SUPPORT
BRACKET - pedals, Serial Range: -11182354
1шт.
2
K302649
MOUNTING PARTS
MOUNTING BRACKET - left-hand, Start Serial: 11182354
1шт.
2
K201969
MOUNTING PARTS
MOUNTING BRACKET - left-hand, Serial Range: -11182354
1шт.
3
K302650
MOUNTING PARTS
MOUNTING BRACKET - right-hand, Start Serial: 11182354
1шт.
3
K201970
MOUNTING PARTS
MOUNTING BRACKET - right-hand, Serial Range: -11182354
1шт.
4
K650659
BOLT
- M10 x 20, Serial Range: bracket-support
4шт.
5
K651849
WASHER
- lock, 10 mm, Serial Range: bracket-support
4шт.
6
K650659
BOLT
- M10 x 20, support to clutch housing
6шт.
7
K651849
WASHER
- lock, 10 mm, support to clutch housing
6шт.
8
K201951
BRACKET
2шт.
9
K650628
BOLT
- M6 x 20
4шт.
10
K651847
WASHER, LOCK
WASHER - lock, 6 mm
4шт.
11
K622851
BUSHING
FLEXIBLE MOUNTING
2шт.
12
K650648
BOLT
- M8 x 50, pedal, Serial Range: support-waistrail
2шт.
13
K651848
WASHER
- lock, 8 mm, pedal, Serial Range: support-waistrail
2шт.
15
K300775
PANEL
INSTRUMENT PANEL
1шт.
16
K302651
PANEL
SUPPORT BRACKET - left-hand
1шт.
17
K300727
SUPPORT
BRACKET - right-hand
1шт.
18
K624533
SCREW
- M8, special, Serial Range: panel-supports
8шт.
19
K651848
WASHER
- lock, 8 mm, Serial Range: panel-supports
8шт.
20
K650640
BOLT
- M8 x 14, instrument, Serial Range: panel-waistrail
4шт.
21
K651848
WASHER
- lock, 8 mm, instrument, Serial Range: panel-waistrail
4шт.
22
K627761
GROMMET
- throttle lever
1шт.
23
K627760
GROMMET
- steering column
1шт.
24
K300268
CLUSTER
INSTRUMENT CLUSTER - see Figure B10-1
1шт.
25
K652502
SCREW,Pan, M5 x 0.8 x 16mm
- M5 x 10, Serial Range: cluster-panel
4шт.
26
K651846
WASHER, LOCK
WASHER - lock, 5 mm, Serial Range: cluster-panel
4шт.
27
K954265
GUARD
HEAT SHIELD, Start Serial: 11182354
1шт.
Выбрано товаров: 30
