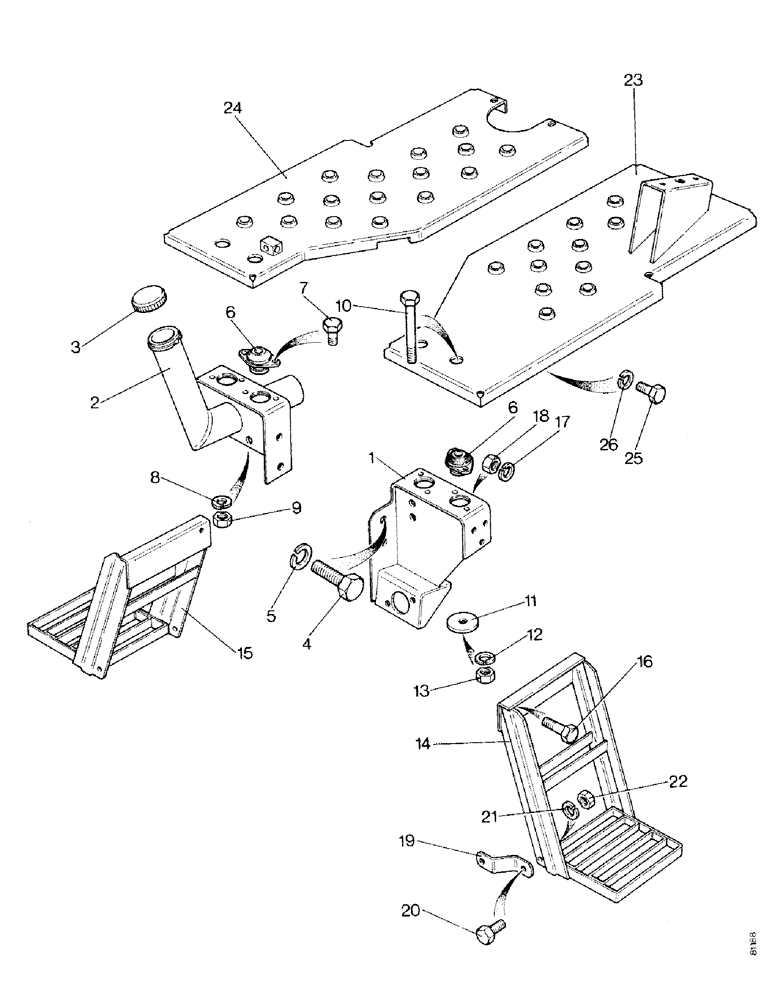

Запчасти Case IH 1490 (N04-1) - FOOTPLATES AND STEPS, LOW PROFILE (08) - SHEET METAL

1

K300866

SUPPORT

MOUNTING BRACKET - left-hand front

1шт.

2

K301075

BRACKET

MOUNTING BRACKET - right-hand front

1шт.

3

K901983

CAP

FILLER CAP - fuel tank

1шт.

4

K603304

SCREW

SETSCREW - 5/8 UNC x 1-1/4", mounting, Serial Range: bracket-frame

6шт.

5

K19485

WASHER

- lock, 5/8", mounting, Serial Range: bracket-frame

6шт.

6

K300649

BLOCK

RUBBER MOUNTING - front

4шт.

7

K650627

BOLT,M6 x 16mm

- M6 x 16, rubber, Serial Range: mounting-bracket

8шт.

8

K651847

WASHER, LOCK

WASHER - lock, 6 mm, rubber, Serial Range: mounting-bracket

8шт.

9

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

Rubber mounting to bracket M6, Cl 10

8шт.

10

K600510

BOLT

- 3/8 UNC x 2", Serial Range: mountings-footplates

4шт.

11

K627465

WASHER

- 10 mm, special, Serial Range: mountings-footplates

4шт.

12

K19482

SPRING WASHER

WASHER - lock, 3/8", Serial Range: mountings-footplates

4шт.

13

280136

NUT,3/8"-16, G8

Mountings to footplates 3/8"-16, G8

4шт.

14

K300834

STEP

- left-hand

1шт.

15

K300838

STEP

- right-hand

1шт.

16

K650342

BOLT

- M8 x 20, Serial Range: step-bracket

6шт.

17

K651848

WASHER

- lock, 8 mm, Serial Range: step-bracket

6шт.

18

K651507

NUT

- M8, Serial Range: step-bracket

6шт.

19

K203222

BRACKET

SUPPORT BRACKET - step

2шт.

20

K602849

SCREW

SETSCREW - 5/16 UNC x 7/8"

4шт.

21

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.

22

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

4шт.

23

K300822

BRACKET

FOOTPLATE - left-hand

1шт.

24

K300818

PLATE

FOOTPLATE - right-hand

1шт.

25

K650641

SCREW

BOLT - M8 x 16, footplate to fenders and cover

8шт.

26

K651848

WASHER

- lock, 8 mm, footplate to fenders and cover

8шт.
