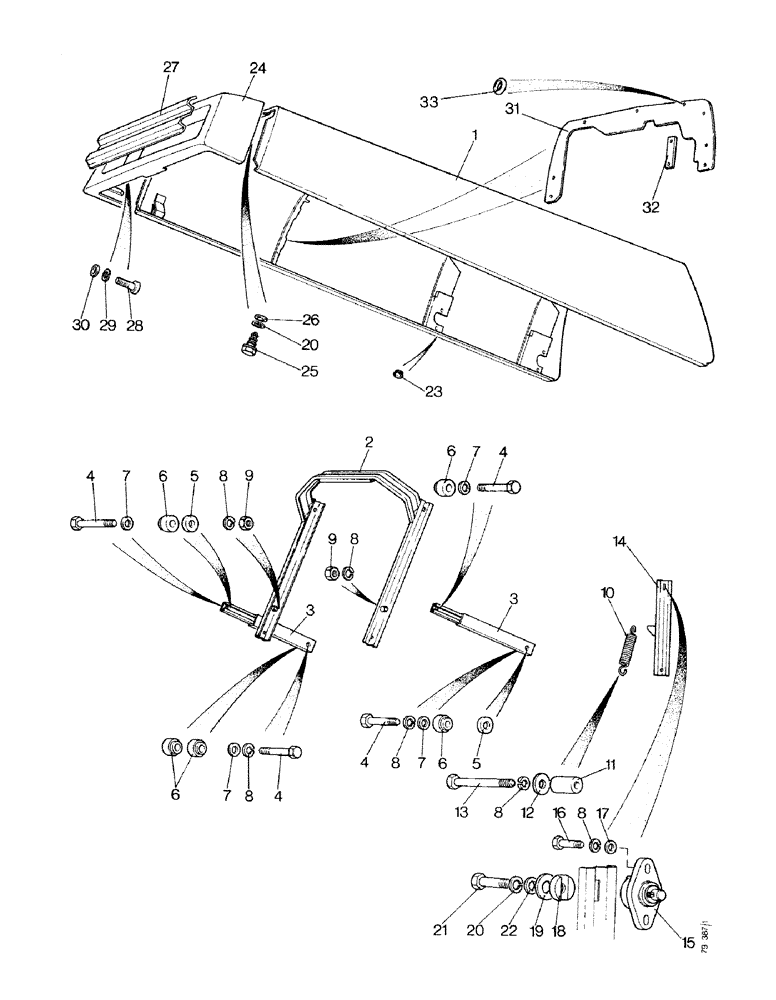

Запчасти Case IH 1490 (N03-1) - ENGINE COVER, TOP AND HINGE, LOW PROFILE (08) - SHEET METAL

1

K300368

HOOD

ENGINE COVER - top

1шт.

2

K300461

LINK

- front

1шт.

3

K300420

SLIDE

STAY - front link

2шт.

4

K650631

BOLT

- M6 x 35

1шт.

4

K650630

BOLT

- M6 x 30

2шт.

4

K650629

SCREW

BOLT - M6 x 25

1шт.

5

K301548

BUSHING

SPACER - 14 mm diameter x 3 mm

2шт.

6

K300922

BUSHING

SPACER - 14 mm diameter x 7 mm

5шт.

7

K651777

WASHER

- 6 mm

4шт.

8

K651847

WASHER, LOCK

WASHER - lock, 6 mm

6шт.

9

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

10

K300451

SPRING

2шт.

11

K300419

PIN

ANCHOR PIN - spring

2шт.

12

K692200

WASHER

- 6 mm, special

2шт.

13

K650801

BOLT

- M6 x 65, special

2шт.

14

K300467

LINK

- rear

2шт.

15

K300928

SUPPORT

PIVOT BRACKET

8шт.

16

K658629

BOLT - M6 x 20, Serial Range: bracket-frame

8шт.

8

K651847

WASHER, LOCK

WASHER - lock, 6 mm, Serial Range: bracket-frame

16шт.

17

K19470

WASHER

- 6 mm, Serial Range: bracket-frame

16шт.

18

K300910

WASHER

- 8 mm, special

6шт.

19

K692199

WASHER

- 8 mm, special

6шт.

20

K651848

WASHER

- lock, 8 mm

8шт.

21

K650643

BOLT

- M8 x 25, link to pivot bracket

8шт.

21

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8, Link to pivot bracket

2шт.

21

K650641

SCREW

BOLT - M8 x 16, link to pivot bracket

2шт.

22

K301561

WASHER

- 8 mm, link to pivot bracket

2шт.

23

K916596

PLUG

RUBBER PLUG

4шт.

24

K956313

HOOD

NOSE - engine cover

1шт.

25

K624533

SCREW

- self-tapping, 8 mm

5шт.

20

K651848

WASHER

- lock, 8 mm

5шт.

26

K651778

WASHER

- 8 mm

5шт.

27

K301066

GUARD

GRILLE - upper

1шт.

28

K652464

SCREW

- M5 x 16

4шт.

29

K651846

WASHER, LOCK

WASHER - lock, 5 mm

4шт.

30

K626946

WASHER

- 5 mm, special

4шт.

31

K301070

BAFFLE

- radiator

1шт.

32

K301514

STRIP

CLAMPING STRIP

2шт.

33

K626776

WASHER

CUP WASHER - 1/8" (3.175 mm)

4шт.
