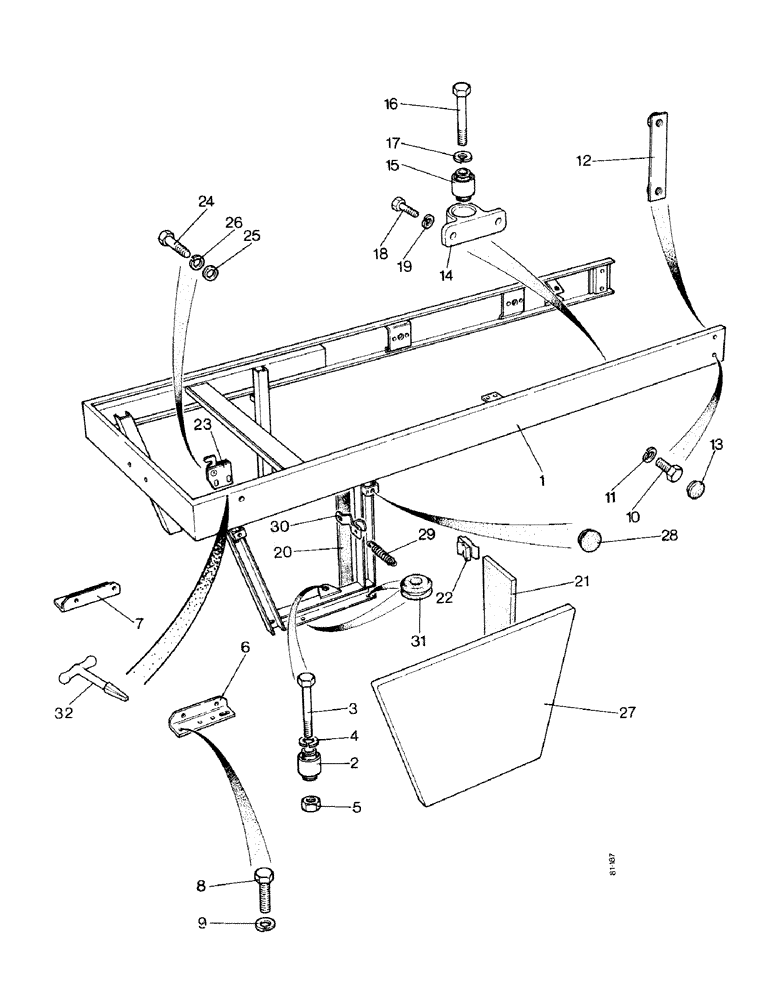

Запчасти Case IH 1490 (N02-1) - ENGINE COVER, FRAME, LOW PROFILE (08) - SHEET METAL

1

K300712

SUPPORT

FRAME - engine cover

1шт.

2

K622851

BUSHING

FLEXIBLE MOUNTING

2шт.

3

K650648

BOLT

- M8 x 50 mm

2шт.

4

K651848

WASHER

- lock, 8 mm

2шт.

5

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

6

K300292

BRACKET

- left-hand

1шт.

7

K300294

BRACKET

- right-hand

1шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bracket to front extension Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

9

K19482

SPRING WASHER

WASHER - lock, 3/8", bracket to front extension

4шт.

10

K654046

BOLT

SETSCREW - M8 x 16, frame to instrument panel

4шт.

11

K651874

SPRING

WASHER - lock, 8 mm, frame to instrument panel

4шт.

12

K302503

NUT

PLATE - M8, frame to instrument panel

2шт.

13

K627992

PLUG

PLASTIC PLUG - frame to instrument panel

4шт.

14

K201951

BRACKET

MOUNTING BRACKET - frame to pedal support

2шт.

15

K622851

BUSHING

FLEXIBLE MOUNTING - frame to pedal support

2шт.

16

K650628

BOLT

- M6 x 18, frame to pedal support

4шт.

17

K651847

WASHER, LOCK

WASHER - lock, 6 mm, frame to pedal support

4шт.

18

K650648

BOLT

- M8 x 50, frame to pedal support

2шт.

19

K651848

WASHER

- lock, 8 mm, frame to pedal support

2шт.

20

K301073

STRIP

SEALING STRIP - radiator side

2шт.

21

K301072

SEAL

- side panel

2шт.

22

K621744

CLIP

8шт.

23

K300500

LOCK

- left-hand

1шт.

23

K300499

LOCK

- right-hand

1шт.

24

K650628

BOLT

- M6 x 20

4шт.

25

K651777

WASHER

- 6 mm

4шт.

26

K651847

WASHER, LOCK

WASHER - lock, 6 mm

4шт.

27

K300267

PANEL

SIDE PANEL

2шт.

28

K627771

BUTTON

PLUG - plastic

4шт.

29

K624940

SPRING

- side panel

2шт.

30

K915791

GRIP

FINGER GRIP

2шт.

31

K627754

GROMMET

4шт.

32

K946448

GRIP

KEY - lock

1шт.
