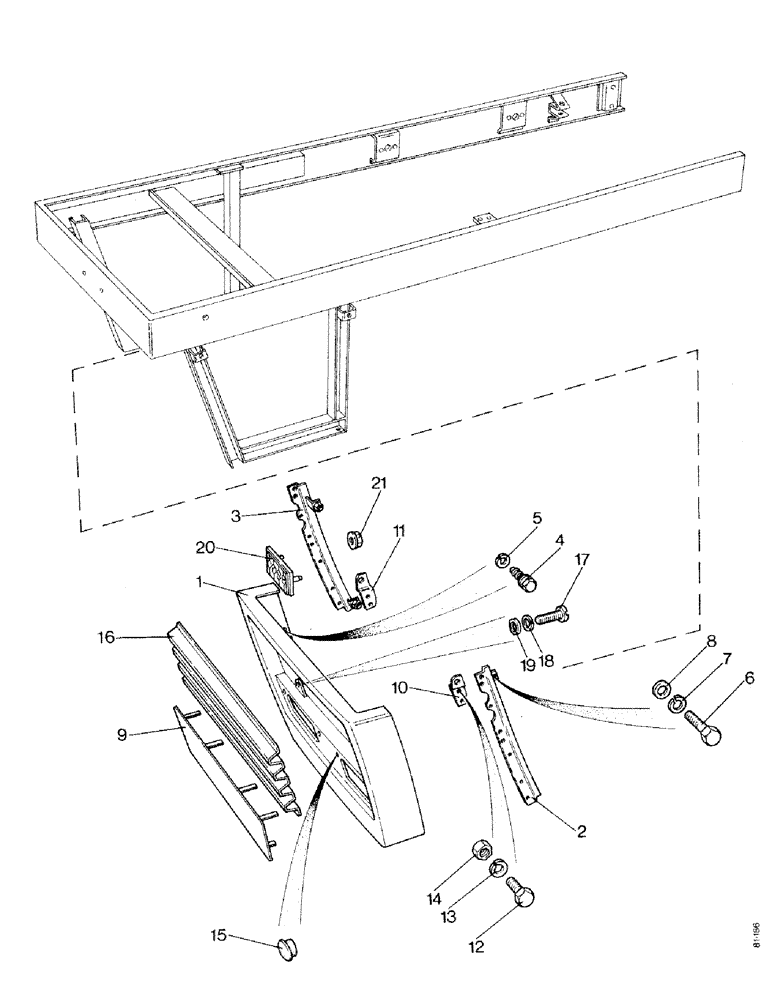

Запчасти Case IH 1490 (N01-1) - ENGINE COVER, FRONT, LOW PROFILE (08) - SHEET METAL

K301763

HOOD

NOSE ASSEMBLY, Includes: Ref. 1 - 5

1шт.

1

K301763

HOOD

NOSE - lower

1шт.

2

K302742

SUPPORT

- left-hand

1шт.

3

K302743

SUPPORT

- right-hand

1шт.

4

K624533

SCREW

- self-tapping

6шт.

5

K651848

WASHER

- lock, 8 mm

6шт.

6

K650643

BOLT

- M8 x 24

4шт.

7

K651848

WASHER

- lock, 8 mm

4шт.

8

K651778

WASHER

- 8 mm

4шт.

9

K302207

PLATE

- nose, tractors with outboard head lamps, not North America

1шт.

10

K302149

BRACKET

- left-hand head lamp, tractors with outboard head lamps, not North America

1шт.

11

K302150

BRACKET

- right-hand head lamp, tractors with outboard head lamps, not North America

1шт.

12

K650341

SCREW

BOLT - M8 x 16, tractors with outboard head lamps, not North America

4шт.

13

K651848

WASHER

- lock, 8 mm, tractors with outboard head lamps, not North America

4шт.

14

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10 (With outboard head lamps) (Not North America)

4шт.

15

K627874

PLUG

- head lamp adjusters

4шт.

16

K300097

GUARD

GRILLE - lower

1шт.

17

K652464

SCREW

- M5 x 16

4шт.

18

K651846

WASHER, LOCK

WASHER - lock, 5 mm

4шт.

19

K626946

WASHER

- 5 MM, special

4шт.

20

K300238

EMBLEM CASE/IH

MEDALLION - Case logo

1шт.

21

K623280

NUT

- 1/4", special

2шт.
