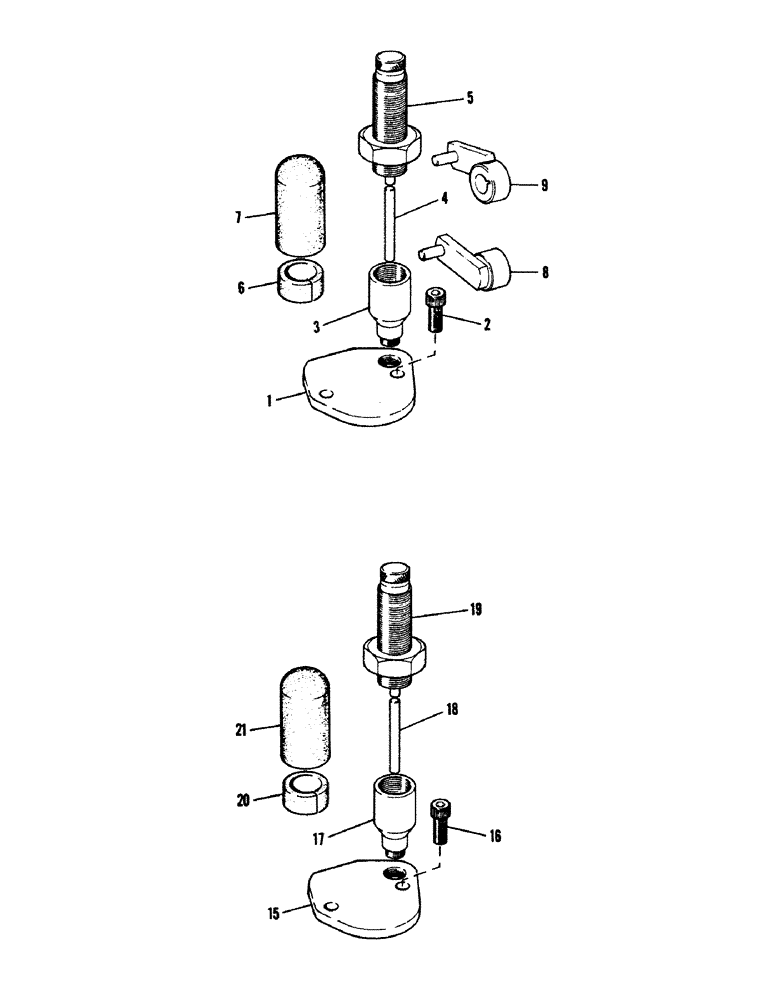

Запчасти Case IH 1490 (K24-1) - HYDRAULIC DAMPER KITS, HIGH PLATFORM, CAB MODEL, WITH DUMP VALVE, WITHOUT DUMP VALVE (07) - HYDRAULICS

UK5473

VALVE

DAMPER KITS - hydraulic (Without Dump Valve), Includes: Ref. 1 - 9

1шт.

UK5483

VALVE

DAMPER KITS - hydraulic (With Damp Valve), Includes: Ref. 1 - 9

1шт.

1

K206302

COVER

PLATE - cover (Without Dump Valve)

1шт.

1

K206612

COVER

PLATE - cover (With Dump Valve)

1шт.

2

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

- 5/16 x 3/4" NC hex socket head

1шт.

3

K206301

ADAPTER

- damper

1шт.

4

K206304

ROD

- damper

1шт.

5

K304968

CUSHION

DAMPER - hydraulic

1шт.

6

K206517

STRIP

SLEEVE - split, rubber

1шт.

7

K947518

COVER

- damper

1шт.

8

K206608

LEVER

- upper valve

1шт.

9

K206609

LEVER

- lower valve

1шт.

UK5497

VALVE

DAMPER KIT - hydraulic (Without Dump Valve)

1шт.

UK5484

VALVE

DAMPER KIT - hydraulic (With Dump Valve), Includes: Ref. 15 - 21

1шт.

15

K206302

COVER

PLATE - cover (Without Dump Valve)

1шт.

15

K206607

COVER

PLATE - cover (With Dump Valve)

1шт.

16

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

- 5/16 x 3/4" NC hex socket head

1шт.

17

K206301

ADAPTER

- damper

1шт.

18

K206304

ROD

- damper

1шт.

19

K304968

CUSHION

DAMPER - hydraulic

1шт.

20

K206517

STRIP

SLEEVE - split, rubber

1шт.

21

K947518

COVER

- damper

1шт.
