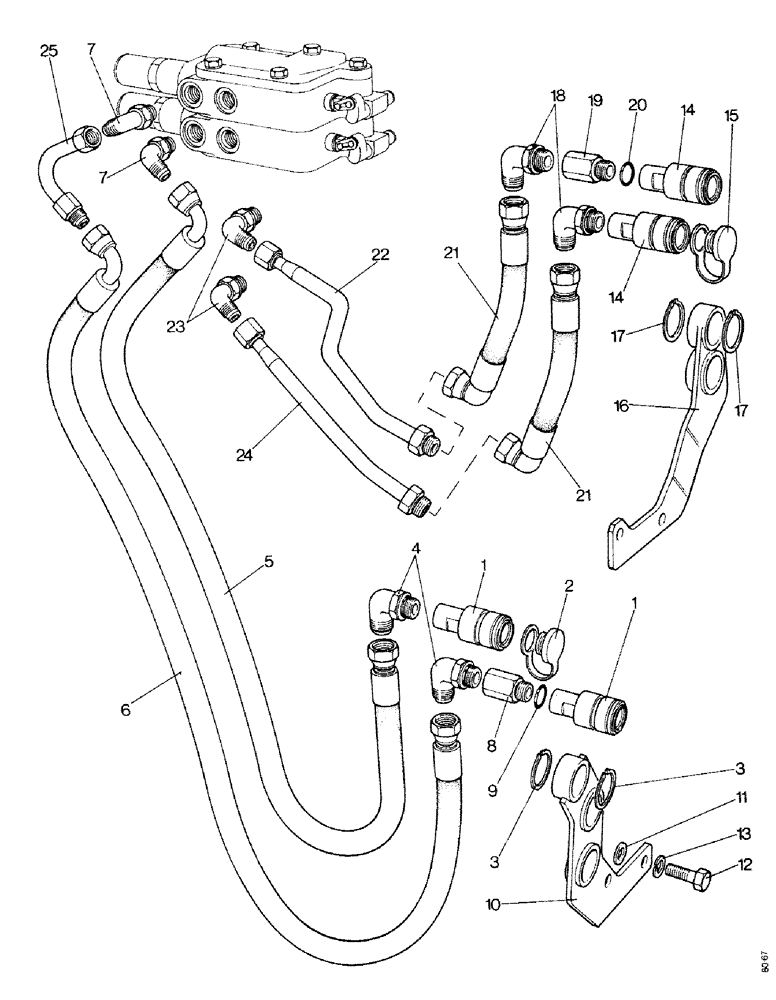

Запчасти Case IH 1490 (K22-1) - PIPES AND COUPLINGS FOR TWO SECTION REMOTE VALVE, LOW PROFILE, HIGH PLATFORM, CAB MODEL (07) - HYDRAULICS

UK4344

BREAKER POINTS

PIPES AND COUPLINGS UNIT - first valve, Includes: Ref. 1 - 9

1шт.

1

K201770

COUPLING, BREAK AWAY

QUICK RELEASE COUPLING - tractor half (Order A147888) (See Figure K21)

2шт.

2

K950297

PLUG

DUST PLUG - tractor coupling

2шт.

3

K621510

SNAP RING,#150, Ext

Ring, Snap, (38.1 mm) #150, Ext

4шт.

4

K622113

FITTING

ELBOW - 7/8 UNF (22.225 mm)

2шт.

5

K202622

HOSE

PIPE - flexible, 3/4 - 7/8 UNF x 24"

1шт.

6

K201876

HOSE

PIPE - flexible, 3/4 - 7/8 UNF x 28"

1шт.

7

K622114

FITTING

ELBOW - 3/4 UNF (19.05 mm)

2шт.

8

K626081

FITTING

EXTENSION - 7/8 UNF (22.225 mm)

1шт.

9

K623592

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4" (19.05 mm) internal diameter

1шт.

UK4345

BREAKER POINTS

MOUNTING BRACKET UNIT, Includes: Ref. 10 - 13

1шт.

10

K202578

BRACKET

MOUNTING BRACKET - left-hand

1шт.

11

K626686

WASHER

- 1/2" (12.7 mm)

2шт.

12

K603141

SCREW

SETSCREW - 1/2 UNC x 1-1/2"

2шт.

13

K626345

LOCK WASHER

WASHER - lock, 1/2"

2шт.

UK4346

CAB

PIPES AND COUPLINGS UNIT - second valve (Low Profile)

1шт.

UK4347

BREAKER POINTS

PIPES AND COUPLINGS UNIT - second valve (High Platform, Cab Model), Includes: Ref. 14- 25

1шт.

14

K201770

COUPLING, BREAK AWAY

QUICK RELEASE COUPLING - tractor half (Order A147888) (See Figure K21)

2шт.

15

K950297

PLUG

DUST PLUG - tractor coupling

2шт.

16

K202430

BRACKET

MOUNTING BRACKET - right-hand

1шт.

17

K621510

SNAP RING,#150, Ext

Ring, Snap, (38.1 mm) #150, Ext

4шт.

18

K622113

FITTING

ELBOW - 7/8 UNF (22.225 mm) (Low Profile)

2шт.

19

K626081

FITTING

EXTENSION - 7/8 UNF (22.225 mm) UNF (Low Profile)

1шт.

20

K623592

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4" (19.05 mm) internal diameter (Low Profile)

1шт.

21

K201520

HOSE

PIPE - flexible, 7/8 UNF x 7-1/2" (Low Profile)

2шт.

21

K202605

HOSE

PIPE - flexible, 3/4 - 7/8 UNF x 15" (High Platform, Cab Model)

1шт.

21

K202604

HOSE

PIPE - flexible, 3/4 - 7/8 UNF x 17-1/2" (High Platform, Cab Model)

1шт.

22

K201775

PIPE

(Low Profile)

1шт.

23

K622114

FITTING

ELBOW - 3/4 UNF (19.05 mm)

2шт.

24

K202622

HOSE

PIPE (Low Profile)

1шт.

25

K201766

PIPE

(Low Profile)

1шт.

K260824

KIT

CONVERSION KIT - single to two section valve (Low Profile), Start Serial: 11183658

1шт.

K260845

KIT

CONVERSION KIT - single to two section valve (Low Profile), Start Serial: 11183658

1шт.

K260815

KIT

CONVERSION KIT - single to two section valve (High Platform, Cab Model), Start Serial: 11183658

1шт.

K260847

KIT

CONVERSION KIT - single to two section valve (High Platform, Cab Model), Start Serial: 11183658

1шт.
