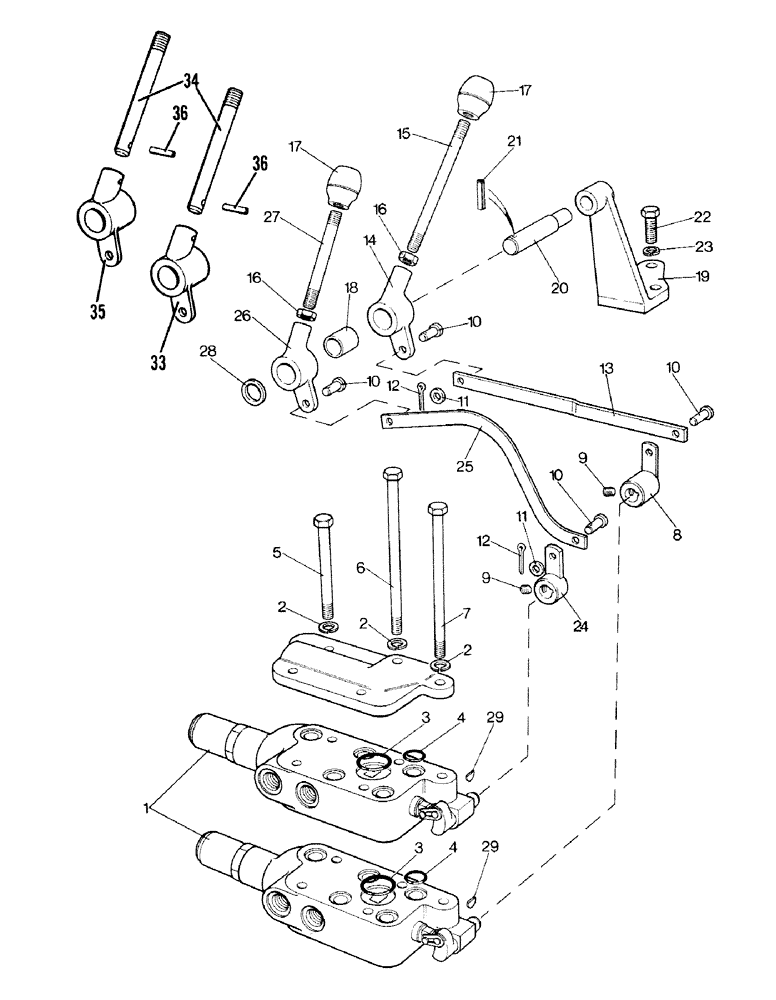

Запчасти Case IH 1490 (K19-1) - TWO SECTION REMOTE VALVE, LOW PROFILE (07) - HYDRAULICS

UK5024

VALVE

UNIT - detented valve, Includes: Ref. 1

2шт.

1

K956421

VALVE

ASSEMBLY - see Figure K23-1

1шт.

UK5023

FITTING

S UNIT - valve, Includes: Ref. 2 - 7

1шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

3

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16" (30.162 mm) internal diameter

2шт.

4

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16" (17.462 mm) internal diameter

10шт.

5

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

6

113-2252

BOLT,Hex, 3/8" - 16 x 7-1/4", Gr 5

- 3/8 UNC x 7-1/4"

2шт.

7

113-2253

BOLT,Hex, 3/8" - 16 x 7-3/4", Gr 5

- 3/8 UNC x 7-3/4"

1шт.

UK4366

CONTROL

UNIT - valve, Includes: Ref. 8 - 29

1шт.

8

K203190

LEVER

- control

1шт.

9

K616302

SET SCREW

SETSCREW - 5/16 UNF x 3/8"

2шт.

10

K625965

PIN

CLEVIS PIN - 1/4 x 3/8" (6.35 x 9.525 mm)

4шт.

11

K19470

WASHER

- 1/4" (6.35 mm)

4шт.

12

132-9

COTTER PIN

PIN - cotter, 1/16 x 1" (1.588 x 25.4 mm)

4шт.

13

K203193

LINK

- control

1шт.

14

K203194

HANDLE

BOSS - lever, Serial Range: -11184823

1шт.

15

K202087

LEVER

- hand, Serial Range: -11184823

1шт.

16

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

17

K950493

KNOB

- lever

2шт.

18

K621377

BUSHING

- pivot

2шт.

19

K203512

SUPPORT

BRACKET - support

1шт.

20

K203195

PIN

PIVOT PIN - pivot

1шт.

21

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, (3.175 x 25.4 mm) 1/8" x 1", Slotted

1шт.

22

113-184

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW - 5/16 UNC x 1-1/8"

3шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

24

K203197

LEVER

- control

1шт.

25

K203200

LINK

- control

1шт.

26

K203196

HANDLE

BOSS - lever, Serial Range: -11184823

1шт.

27

K202085

HANDLE

LEVER - hand, Serial Range: -11184823

1шт.

28

K19475

WASHER

- 5/8" (15.875 mm)

2шт.

29

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

2шт.

33

K205228

COLLAR

BOSS - lever, Start Serial: 11184823

1шт.

34

K205676

LEVER

- hand, Start Serial: 11184823

2шт.

35

K205227

COLLAR

BOSS - lever, Start Serial: 11184823

1шт.

36

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

2шт.

UK4344

BREAKER POINTS

PIPE AND COUPLING UNIT - see Figure K22-1

1шт.

UK4345

BREAKER POINTS

MOUNTING AND BRACKET UNIT - see Figure K22-1

1шт.

UK4346

CAB

PIPE AND COUPLING UNIT - see Figure K22-1

1шт.
