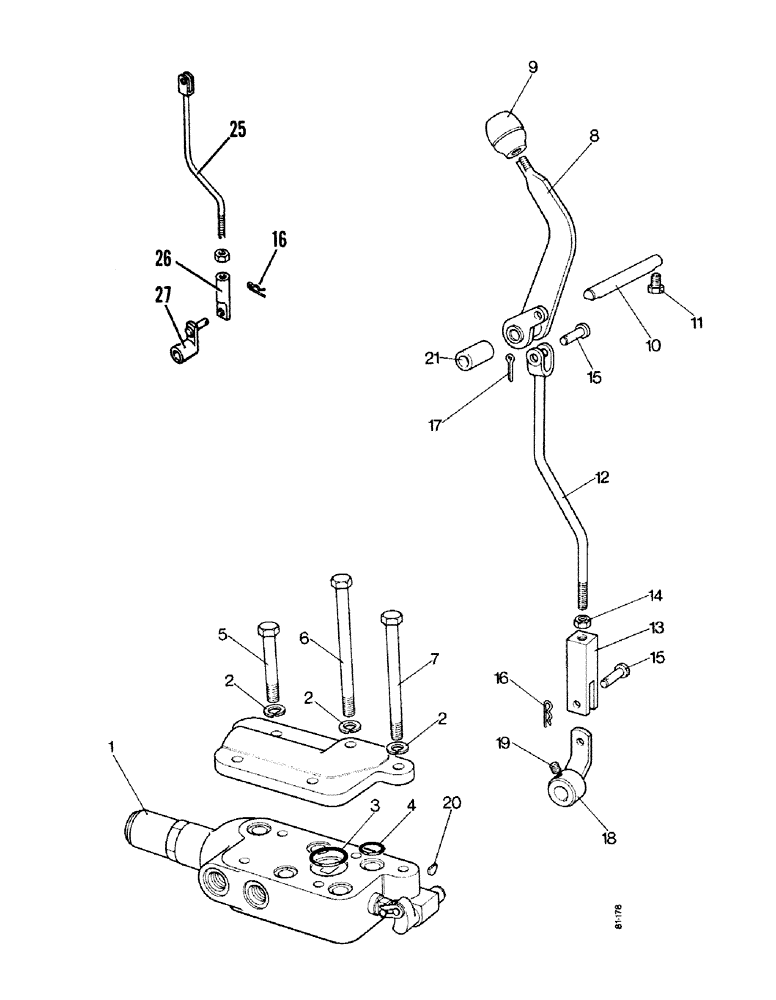

Запчасти Case IH 1490 (K18-1) - SINGLE REMOTE VALVE, HIGH PLATFORM (07) - HYDRAULICS

UK5024

VALVE

UNIT - detented valve 1

1шт.

1

K956421

VALVE

ASSEMBLY - see Figure K23-1

1шт.

UK5022

VALVE

FITTINGS UNIT - valve, Includes Ref. 2 - 7

1шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

3

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16" (30.162 mm) internal diameter

1шт.

4

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16" (17.462 mm) internal diameter

5шт.

5

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

6

113-258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

1шт.

7

113-2232

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

- 3/8 UNC x 5-1/2"

2шт.

UK5034

VALVE

CONTROLS UNIT - valve, Includes Ref. 8 - 21

1шт.

8

K202888

LEVER

- hand

1шт.

9

K950493

KNOB

- lever

1шт.

10

K950863

SHAFT

- lever

1шт.

11

K614021

SET SCREW,#10 - 32 x 1/2"

SETSCREW - no. 10 UNF x 1/2"

2шт.

12

K202885

ROD

- control, Serial Range: -11183658

1шт.

13

K202898

ROD

FORK END - 3/8 UNC, Serial Range: -11183658

1шт.

14

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

15

K625942

PIN

CLEVIS PIN - 1/4 x 3/4" (6.35 x 19.05 mm)

1шт.

16

K950865

CLIP

PIN - cotter

1шт.

17

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

18

K202882

LEVER

- bellcrank, Serial Range: -11183658

1шт.

19

K616302

SET SCREW

SCREW - 5/16 UNF x 3/8"

1шт.

20

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

1шт.

21

K950898

BUSHING

SPACER - pivot shaft

1шт.

25

K205002

ROD

- control, Start Serial: 11183658

1шт.

26

K204970

ROD

FORK END - 3/8" NC, Start Serial: 11183658

1шт.

27

K204968

LEVER

- bellcrank, Start Serial: 11183658

1шт.

UK4344

BREAKER POINTS

PIPE AND COUPLING UNIT - see Figure K21-1

1шт.

UK4345

BREAKER POINTS

MOUNTING BRACKET UNIT - see Figure K21-1

1шт.
