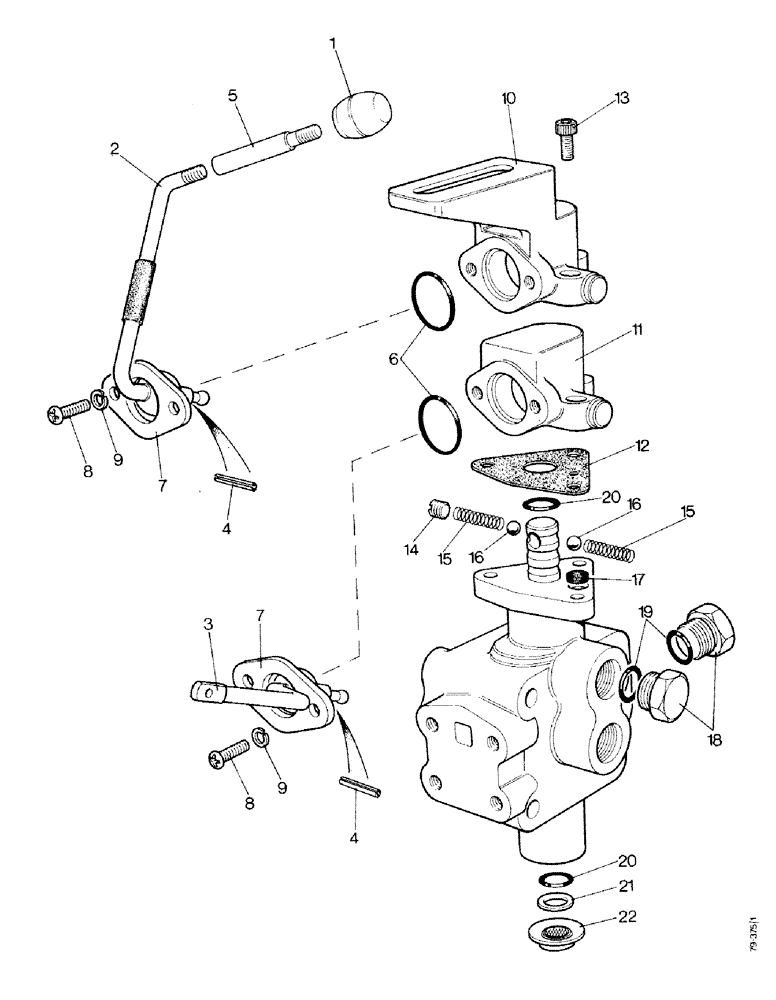

Запчасти Case IH 1490 (K16-1) - THREE-WAY VALVE ASSEMBLY, NOT NORTH AMERICA, LOW PROFILE, HIGH PLATFORM, CAB MODEL (07) - HYDRAULICS

K202874

VALVE

- three-way (Low Profile), Includes Ref. 1 - 22

1шт.

K202568

VALVE

- three-way (High Platform, Cab Model), Includes Ref. 1 - 22

1шт.

1

K950493

KNOB

- lever (Low Profile)

1шт.

2

K202620

LEVER

(Low Profile)

1шт.

3

K202206

LEVER

(High Platform, Cab Model)

1шт.

4

K943367

PIN

-, Serial Range: lever-cover

1шт.

5

K204787

LEVER

EXTENSION - hand lever (Low Profile)

1шт.

6

K16351

O-RING,3.53mm Thk x 24.99mm ID

- 1" (25.4 mm) internal

1шт.

7

K919613

SHIM

PLATE - lever retaining

1шт.

8

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

- no. 10 UNF x 1/2"

2шт.

9

K626340

RING

WASHER - lock, 3/16"

2шт.

10

K919611

COVER

(Low Profile)

1шт.

11

K929862

COVER

(High Platform, Cab Model)

1шт.

12

K944527

GASKET,0.15mm Thk

1шт.

13

K606501

SCREW

- 1/4 UNC x 5/8"

3шт.

14

K606020

SCREW

- 5/16 UNC x 1/4" (7.938 x 6.35 mm)

1шт.

15

K625208

SPRING

2шт.

16

K17063

BALL

STEEL BALL - 1/4" (6.35 mm)

2шт.

17

K915393

FOAM

BREATHER PAD

1шт.

18

K948415

PLUG

- 3/4 UNF (19.05 mm) (High Platform, Cab Model)

2шт.

18

K948415

PLUG

- 3/4 UNF (19.05 mm) special (Low Profile)

2шт.

19

K623589

O-RING

- 5/8" (15.875 mm) internal diameter

2шт.

20

K625408

O-RING

- 7/16" (11.112 mm) internal diameter

2шт.

21

K628059

RING,Split, 11.11mm ID x 15.88mm OD x 1.47mm Thk

BACK-UP RING

1шт.

22

K919826

BREATHER

1шт.

K965998

SEAL

KIT - seals, Includes Ref. 12 - 22

1шт.

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- 5/8" (15.875 mm) internal diameter

1шт.

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4" (19.05 mm) internal diameter

1шт.

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16" (17.462 mm) internal diameter

1шт.

19

K623589

O-RING

- 5/8" (15.875 mm)

1шт.

20

K625408

O-RING

- 7/16" (11.112 mm)

2шт.

21

K628059

RING,Split, 11.11mm ID x 15.88mm OD x 1.47mm Thk

BACK-UP RING

2шт.

17

K915393

FOAM

BREATHER PAD

1шт.

22

K919826

BREATHER

1шт.

12

K944527

GASKET,0.15mm Thk

1шт.
