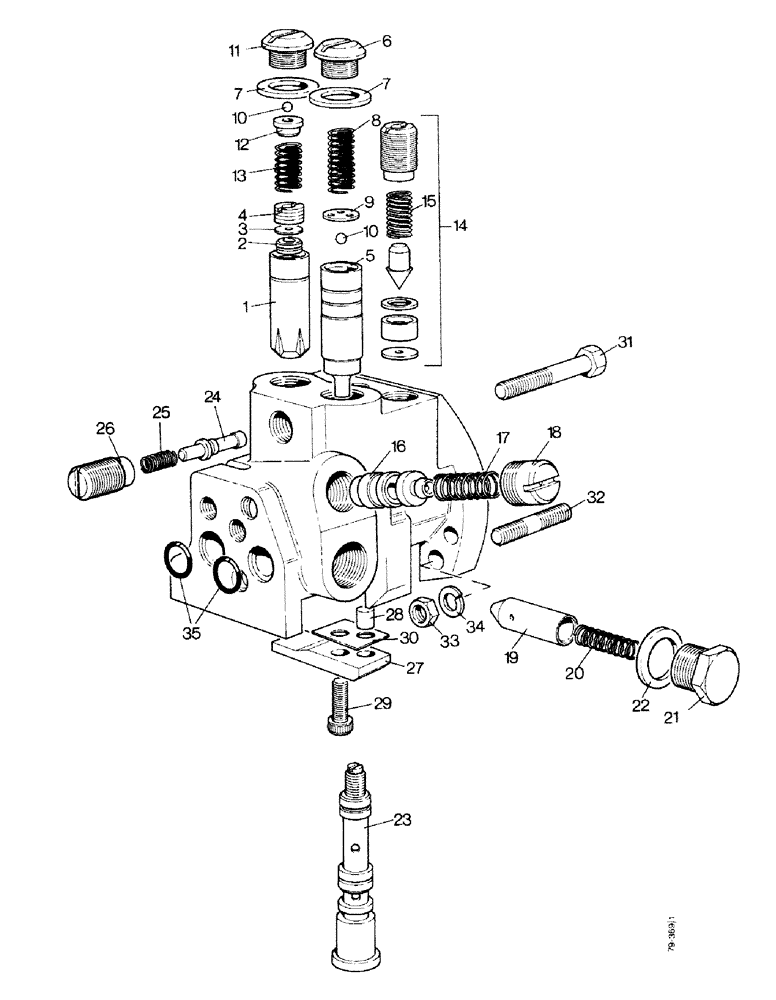

Запчасти Case IH 1490 (K09-1) - SELECTAMATIC CONTROL VALVE (07) - HYDRAULICS

K260462

VALVE

CONTROL VALVE ASSEMBLY - remanufactured

1шт.

K260900

RETURN NUMBER - use this part number to return valve core for credit

1шт.

K956606

VALVE

CONTROL VALVE ASSEMBLY, Includes Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

PLUNGER - by-pass valve

1шт.

2

K913621

WASHER

RESTRICTOR WASHER

1шт.

3

K921154

FILTER

- by-pass plunger

1шт.

4

K947759

PLUG

- 3/8 UNF (9.525 mm) special

1шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER - hold valve

1шт.

6

K913242

PLUG

- 5/8 UNF (15.875 mm)

1шт.

7

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

ING WASHER - 5/8" (15.875 mm)

2шт.

8

K24832

SPRING

1шт.

9

K920136

SHIM

RETAINER - steel ball

1шт.

10

K11548

BALL

STEEL BALL - 1/8" (3.175 mm)

2шт.

11

K948067

PLUG

- 5/8 UNF (15.875 mm) special

1шт.

12

K947977

RETAINER

- steel ball

1шт.

13

K24832

SPRING

- by-pass valve

1шт.

14

K961794

VALVE

RELIEF VALVE - set by manufacturer, Includes Ref. 15

1шт.

15

K625160

SPRING

- relief valve

1шт.

16

K202530

SPOOL

- rate of lowering valve

1шт.

17

K625108

SPRING

- rate of lowering valve

1шт.

18

K202531

CAP

PLUG - 3/8 BSP, special

1шт.

19

K916395

PLUNGER

- non-return valve

1шт.

20

K625167

SPRING

- non-return valve

1шт.

21

K916397

PLUG

- 3/4 UNF (19.05 mm) special

1шт.

22

K623530

SEAL

ING WASHER - 3/4" (19.05 mm)

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL VALVE

1шт.

24

NSS

NOT SOLD SEPARAT

PLUNGER - latching valve

1шт.

25

K625180

SPRING

- latching valve

1шт.

26

K913971

PLUG

- 9/16 UNF (14.288 mm) special

1шт.

27

K912464

WASHER

ABUTMENT PLATE

1шт.

28

K24853

PIN

DOWEL - 1/4 x 11/16" (6.35 x 17.462 mm)

1шт.

29

K606803

SCREW

- 1/4 UNC, self-locking

1шт.

30

K912467

SHIM,.015" Thk

(0.381 mm) .015" Thk

2шт.

30

K912465

SHIM,.003" Thk

(0.0762 mm) .003" Thk

1шт.

30

K912466

SHIM,.007" Thk

(0.1778 mm) .007" Thk

1шт.

31

K600211

BOLT

- 5/16 UNC x 2-1/4", valve to ramshaft bracket

1шт.

32

K608143

STUD

- 5/16 UNC x 1/2", valve to ramshaft bracket

2шт.

33

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC, valve to ramshaft bracket

2шт.

34

K19481

SPRING WASHER

WASHER - lock, 5/16 UNC, valve to ramshaft bracket

3шт.

35

K625408

O-RING

- 7/16" (11.112 mm) internal diameter

2шт.

K962813

GASKET

KIT - seals, control valve

1шт.
