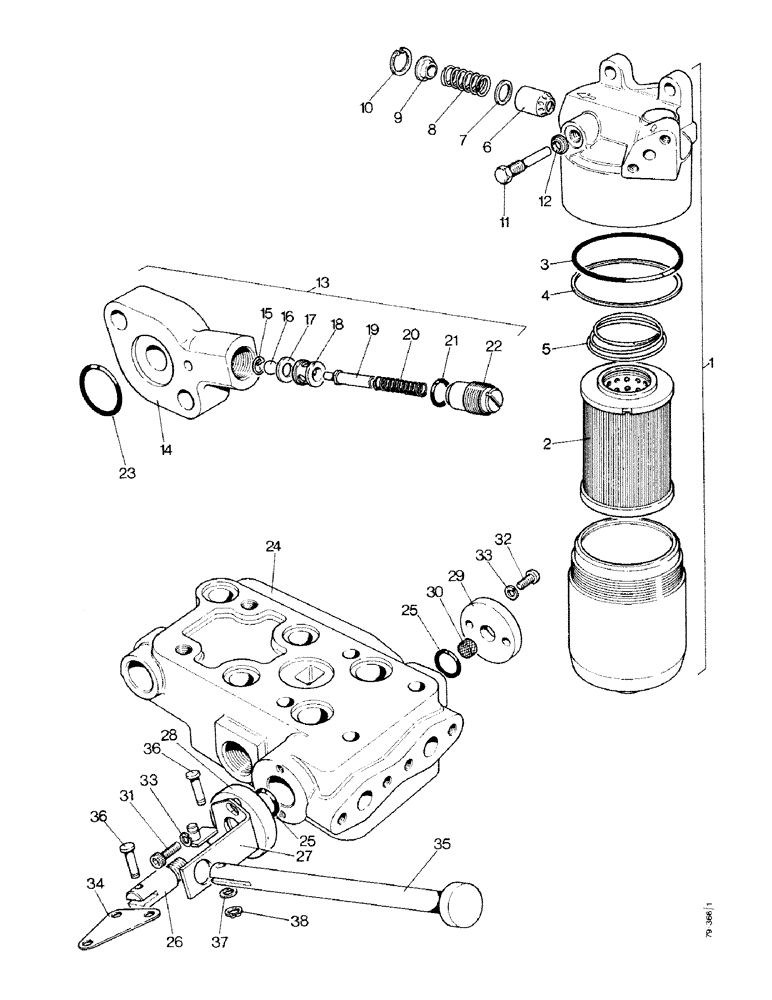

Запчасти Case IH 1490 (K06-1) - FILTER, BLEED VALVE AND COMBINING VALVE (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
K952363
FILTER
ASSEMBLY, Includes Ref. 2 - 10
1шт.
2
K946095
FILTER, ELEMENT
ELEMENT, Includes Ref. 3 and 4
1шт.
Includes the self-sealing ring (Ref. 3) and backup ring (Ref. 4) when ordered.
1шт.
3
K628866
O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro
SEALING RING
1шт.
4
K628915
RING
BACK-UP RING
1шт.
5
K625299
SPRING
- element
1шт.
6
K953564
VALVE
PLUNGER
1шт.
7
K626406
WASHER
1шт.
8
K625298
WASHER
SPRING
1шт.
9
K953563
RETAINER
1шт.
10
K621493
SNAP RING,#81K, .853", Int, Spiral
RING - snap
1шт.
11
K947791
PIN
SETSCREW - 7/16", special
1шт.
12
K626522
SEALING WASHER
SEALING WASHER - 7/16" (11.112 mm)
1шт.
13
K928525
VALVE
BLEED VALVE ASSEMBLY, Includes Ref. 14 - 22
1шт.
14
K928518
HOUSING
BODY
1шт.
15
K924115
BALL
RETAINER
1шт.
16
K620089
BALL
STEEL BALL - 9/32" (7.144 mm)
1шт.
17
K626792
WASHER
- 5/16" (7.938 mm) special
1шт.
18
K924321
VALVE
SEAT
1шт.
19
K924117
PLUNGER
1шт.
20
K625233
SPRING
1шт.
21
K24554
O-RING
- 3/8" (9.525 mm) internal diameter
1шт.
22
K924116
PLUG
- 5/8 UNF (15.875 mm) special
1шт.
23
K14509
O-RING,0.796" ID x 1.047" OD x 0.139"
- 13/16" (20.638 mm) internal diameter
1шт.
24
K203624
VALVE
COMBINING VALVE ASSEMBLY, Includes Ref. 25 - 33
1шт.
25
K625405
O-RING,0.549" ID x 0.103" Width
- 9/16" (14.288 mm) internal diameter
2шт.
26
K203441
SPOOL
EXTENSION - valve spool
1шт.
27
K203778
BRACKET
AND PIN
1шт.
28
K203774
CAP
END CAP
1шт.
29
K202852
CAP
END CAP AND BREATHER PAD, Includes Ref. 30
1шт.
30
K915393
FOAM
BREATHER PAD
1шт.
31
K616489
SOCKET/RECEPTACLE
SCREW - No. 10 UNF x 1"
2шт.
32
K616485
SCREW
- No. 10 UNF x 1/2"
2шт.
33
K626340
RING
WASHER - lock, 3/16"
4шт.
34
K202388
LEVER
1шт.
35
K203442
LEVER
HAND LEVER
1шт.
36
K203775
PIN
CLEVIS PIN - 1/4 x 3/4" (6.35 x 19.05 mm)
2шт.
37
K19470
WASHER
- 1/4" (6.35 mm)
3шт.
38
K24568
SNAP RING,#25, Ext
Ring, Snap, (6.35 mm) #25, Ext
3шт.
Выбрано товаров: 39
