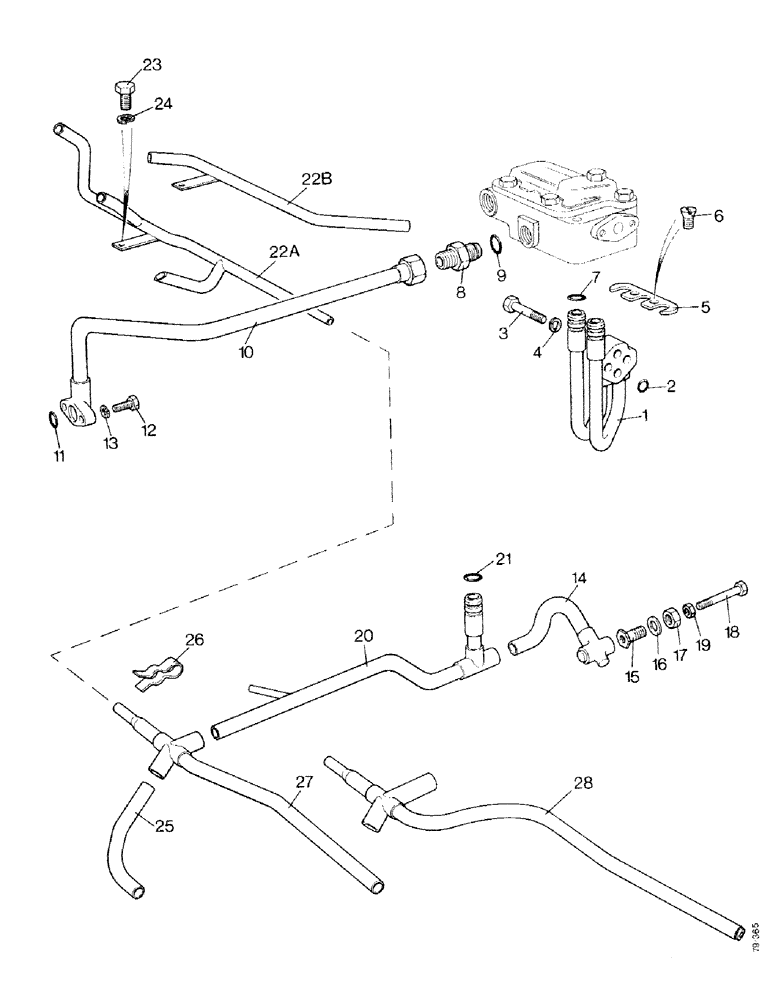

Запчасти Case IH 1490 (K05-1) - HYDRAULIC PIPES - REAR AXLE, SYNCHROMESH, POWER-SHIFT (07) - HYDRAULICS

1

K952224

PIPE

- control valve

1шт.

2

K625408

O-RING

- 7/16" (11.112 mm) internal diameter

2шт.

3

K600561

BOLT

- 3/8 UNC x 1-5/8"

2шт.

4

K19482

SPRING WASHER

WASHER - lock, 3/8"

2шт.

5

K915344

WASHER

LOCATING PLATE

1шт.

6

K603662

SCREW

SETSCREW - 1/4 UNC x 5/8"

2шт.

7

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16" (14.288 mm) internal diameter

2шт.

8

K626026

FITTING

UNION - 7/8 UNF (22.225 mm)

1шт.

9

K623592

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8" (15.875 mm) internal diameter

1шт.

10

K919244

PIPE,16.375, 4.875" L

- ram cylinder

1шт.

11

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16" (17.462 mm) internal diameter

1шт.

12

K602849

SCREW

SETSCREW - 5/16 UNC x 7/8"

2шт.

13

K19481

SPRING WASHER

WASHER - lock, 5/16"

2шт.

14

K915339

TUBE

PIPE - control valve to tee piece

1шт.

15

K912269

BUSHING

SCREWED BUSHING - 1/2 - 5/16 UNC

1шт.

16

K626577

WASHER

SEALING WASHER - 1/2" (12.7 mm)

1шт.

17

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT - 1/2 UNC

1шт.

18

K602816

SCREW

BOLT - 5/16 UNC x 2-3/8"

1шт.

19

K607081

LOCK NUT

LOCKNUT - 5/16 UNC

1шт.

20

K916891

PIPE

- distribution block to cross piece

1шт.

21

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16" (14.288 mm) internal diameter

1шт.

22

K203177

PIPE,19.437, 3.125" L

- gearbox lubrication (Synchromesh)

1шт.

22

K942372

PIPE

- gearbox lubrication (Power-Shift)

1шт.

23

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW - 1/4 UNC x 1/2"

1шт.

24

K626341

SPRING WASHER

WASHER - lock, 1/4"

1шт.

25

K913785

PIPE,0.5" OD

- ram cylinder lubrication

1шт.

26

K625009

SPRING

RETAINING CLIP

1шт.

27

K950514

PIPE

- reversible shaft PTO lubrication

1шт.

28

K919662

PIPE

- single and multi-speed PTO lubrication (Not North America)

1шт.
