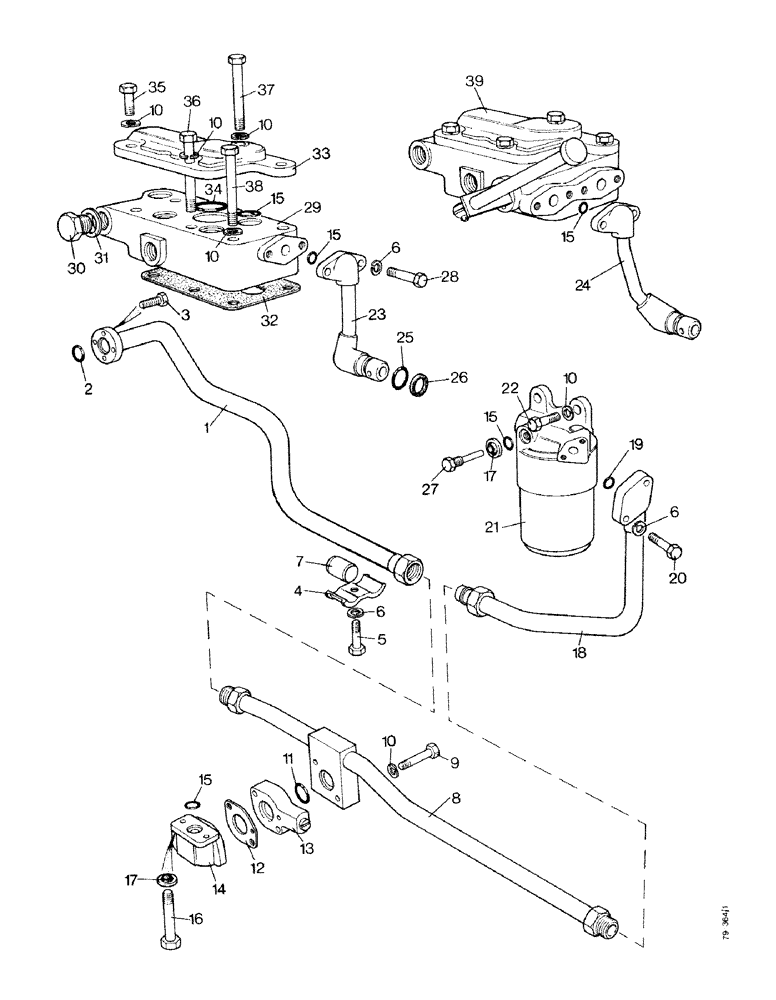

Запчасти Case IH 1490 (K04-1) - PIPES FOR REAR SECTION OF TANDEM PUMP (07) - HYDRAULICS

1

K204421

PIPE

- rear pump outlet, (52-1/8")

1шт.

Ref. 1A - K950128 Pipe (55 13/64")

1шт.

2

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- 5/8" (15.875 mm) internal diameter

1шт.

3

K606504

SCREW

- 1/4 UNC x 1"

4шт.

4

K916899

BRACKET

2шт.

5

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW - 5/16 UNC x 1-1/8"

2шт.

6

K19481

SPRING WASHER

WASHER - lock, 5/16"

2шт.

7

K919418

SUPPORT

BLOCK - tractor with single pump, not North America

1шт.

8

K204419

PIPE

- relief, Serial Range: valve-unions

1шт.

10

K19482

SPRING WASHER

WASHER - lock, 3/8"

2шт.

11

K14509

O-RING,0.796" ID x 1.047" OD x 0.139"

- 13/16" (20.638 mm) internal diameter

2шт.

12

K928522

SEAL

1шт.

13

K928525

VALVE

ASSEMBLY - for air removal, see Figure K06-1

1шт.

14

K952323

VALVE

RELIEF VALVE - set by manufacturer

1шт.

15

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16" (17.462 mm) internal diameter

1шт.

16

K600608

BOLT

- 7/16 UNC x 2-1/2"

2шт.

17

K626522

SEALING WASHER

SEALING WASHER - 7/16" (11.112 mm)

2шт.

18

K203628

PIPE

-, Serial Range: union-filter

1шт.

19

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16" (17.462 mm) internal diameter

1шт.

20

K602808

SCREW

SETSCREW - 5/16 UNC x 1-3/8"

2шт.

21

K952363

FILTER

ASSEMBLY - see Figure K06-1

1шт.

22

K602906

SCREW

SETSCREW - 3/8 UNC x 1-1/4"

2шт.

23

K202493

PIPE,0.625" OD

- filter outlet, single pump, not North America

1шт.

24

K202492

PIPE,0.625" OD

- filter outlet, tandem pump

1шт.

25

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4" (19.05 mm) internal diameter

1шт.

26

K628067

RING

BACK-UP RING - 3/4" (19.05 mm) internal diameter

1шт.

27

K947791

PIN

SETSCREW - 7/16 UNC, special

1шт.

28

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1"

2шт.

29

K957148

BLOCK

DISTRIBUTION BLOCK - tractors with single pump, not North America

1шт.

30

K619528

PLUG

- 7/8 UNF (22.225 mm) tractors with single pump, not North America

1шт.

31

K30085

GASKET

FIBER WASHER - 7/8" (22.225 mm) tractors with single pump, not North America

1шт.

32

K917387

GASKET

- tractors with single pump, not North America

1шт.

33

K919242

COVER

PLATE - tractors with single pump, not North America

1шт.

34

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16" (30.162 mm) internal diameter, tractors with single pump, not North America

1шт.

35

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Tractors with single pump, not North America Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

36

K600414

BOLT

- 3/8 UNC x 2-3/4", tractors with single pump, not North America

1шт.

37

K600416

BOLT

- 3/8 UNC x 3", tractors with single pump, not North America

2шт.

38

K600418

BOLT

- 3/8 UNC x 3-1/2", tractors with single pump, not North America

1шт.

10

K19482

SPRING WASHER

WASHER - lock, 3/8", tractors with single pump, not North America

6шт.

39

K203624

VALVE

COMBINING VALVE - see figure K06-1

1шт.
