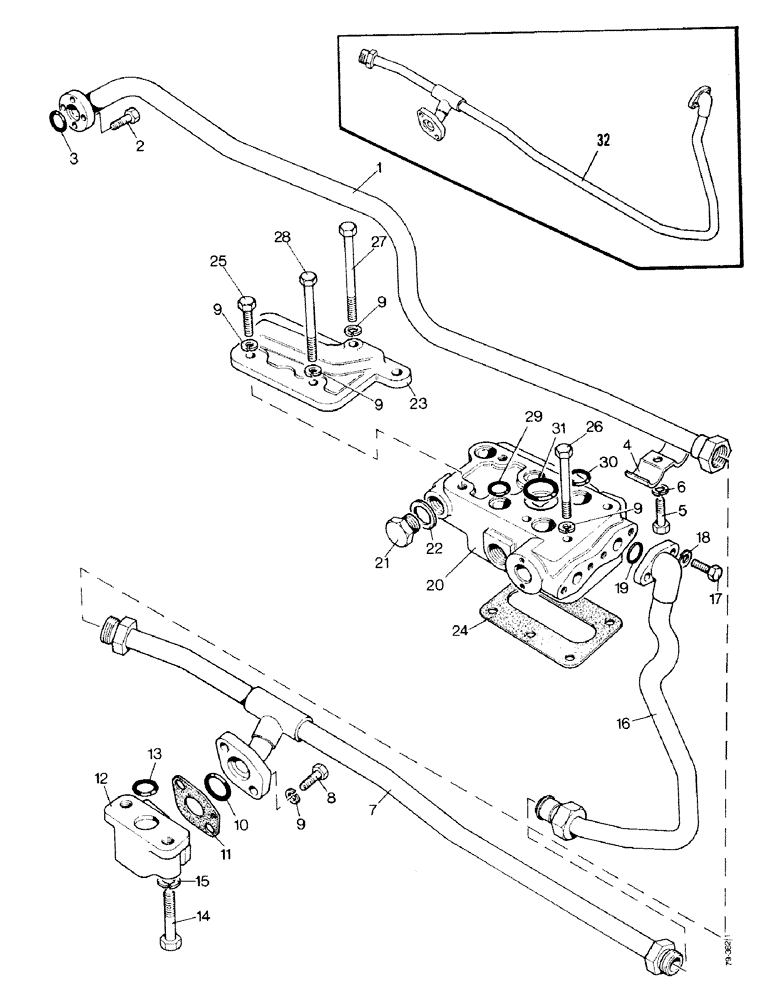

Запчасти Case IH 1490 (K03-1) - PIPES FOR FRONT SECTION OF TANDEM PUMP (07) - HYDRAULICS

1

K949975

PIPE

- pump outlet (Order K204425), Serial Range: -11180320

1шт.

1

K204425

PIPE

- pump outlet, Start Serial: 11180320

1шт.

2

K606504

SCREW

SETSCREW - 1/4 UNC x 1"

4шт.

3

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- 5/8" (15.875 mm) internal diameter

1шт.

4

K916899

BRACKET

2шт.

5

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW - 5/16 UNC x 1-1/8"

2шт.

6

K19481

SPRING WASHER

WASHER - lock, 5/16"

2шт.

7

K204423

PIPE

- relief valve to union, Start Serial: 11180320

1шт.

8

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

- 3/8 UNC x 1-1/8"

2шт.

9

K19482

SPRING WASHER

WASHER - lock, 3/8"

2шт.

10

K14509

O-RING,0.796" ID x 1.047" OD x 0.139"

- 13/16" (20.638 M) internal diameter

1шт.

11

K928522

SEAL

1шт.

12

K952323

VALVE

RELIEF VALVE - set by manufacturer

1шт.

13

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16" (17.462 mm) internal diameter

1шт.

14

K600608

BOLT

- 7/16 UNC x 2-1/4"

2шт.

15

K626344

WASHER, LOCK

WASHER - lock, 7/16"

2шт.

16

K203627

PIPE,15.562" L

- union to combining valve, Start Serial: 11180320

1шт.

17

K602849

SCREW

SETSCREW - 5/16 UNC x 7/8"

2шт.

18

K19481

SPRING WASHER

WASHER - lock, 5/16"

2шт.

19

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16" (17.462 mm) internal diameter

1шт.

20

K203624

VALVE

COMBINING VALVE ASSEMBLY

1шт.

21

K619528

PLUG

- 7/8 UNF (22.225 mm)

1шт.

22

K30085

GASKET

FIBER WASHER - 7/8" (22.225 mm)

1шт.

23

K919242

COVER

PLATE

1шт.

24

K917387

GASKET

1шт.

25

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

26

K600421

BOLT

- 3/8 UNC x 1-1/4"

1шт.

27

K600419

BOLT

- 3/8 UNC x 3-3/4"

2шт.

28

K600417

BOLT

- 3/8 UNC x 3-1/4"

1шт.

9

K19482

SPRING WASHER

WASHER - lock, 3/8"

6шт.

29

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16" (17.462 mm) internal diameter

3шт.

30

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4" (19.05 mm) internal diameter

2шт.

31

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 13/16" (20.638 mm) internal diameter

1шт.

32

K200992

PIPE

- relief valve to combining valve (Order K204423 and K203627), Serial Range: -11180320

1шт.
