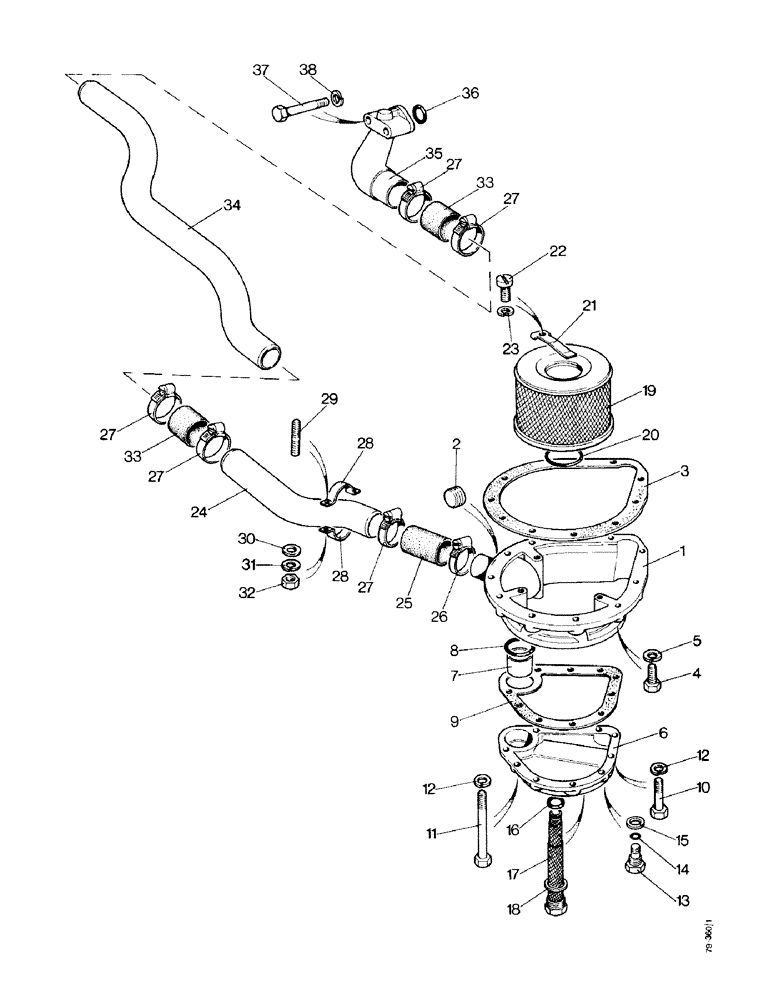

Запчасти Case IH 1490 (K01-1) - INLET FILTER AND PIPES, SYNCHROMESH, POWER-SHIFT (07) - HYDRAULICS

1

K940382

HOUSING

- inlet filter

1шт.

2

K609691

PLUG

TAPER PLUG - 1/2 NPT

1шт.

3

K940407

GASKET

1шт.

4

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SCREW - 5/16 UNC x 1-1/8"

10шт.

5

K19481

SPRING WASHER

WASHER - lock, -5/16"

10шт.

6

K940399

COVER

- filter housing

1шт.

7

K921882

SEAL

INSERT - cover

1шт.

8

K15533

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- 1-3/4" (44.45 mm) internal diameter

1шт.

9

K940408

GASKET

1шт.

10

K600211

BOLT

- 5/16 UNC x 2-1/4"

9шт.

11

K600226

BOLT

- 5/16 UNC x 5-1/4"

1шт.

12

K19481

SPRING WASHER

WASHER - lock, -5/16"

10шт.

13

K623842

PLUG

- 5/8 UNC, special

1шт.

14

K14573

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- 5/16" (7.938 mm) internal diameter

1шт.

15

K626795

WASHER

SEALING WASHER - 5/8" (15.875 mm)

1шт.

16

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

- 3/4" (19.05 mm) internal diameter (Power-Shift)

1шт.

17

K942039

FILTER

INLET FILTER - gearbox pump (Power-Shift)

1шт.

17

K623830

PLUG

- 1" BSP (Synchromesh)

1шт.

18

K11120

SEALING WASHER

SEALING WASHER - 1-1/4" (31.75 mm) internal diameter

1шт.

19

K946089

STRAINER ELEMENT

INLET FILTER - hydraulic pump

1шт.

20

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- 1-3/4" (44.45 mm) internal diameter

1шт.

21

K953845

RETAINER

PLATE - filter

1шт.

22

K613984

SCREW

- No. 10 UNF x 1/2"

1шт.

23

K19485

WASHER

- lock, -3/16"

1шт.

24

K204088

HOSE,1.75" OD x 11.312, 3.562" L

INLET PIPE - rear

1шт.

25

K924378

HOSE

CONNECTION - straight

1шт.

26

K622031

CLAMP

HOSE CLAMP - 2-1/2" (63.5 mm)

1шт.

27

K622030

CLAMP

HOSE CLAMP - 2-1/4" (57.15 mm)

5шт.

28

K916897

SHIM

BRACKET

4шт.

29

K608128

STUD

- 5/16 UNC x 1-3/8"

4шт.

30

K626682

WASHER

- 5/16" (7.938 mm)

1шт.

31

K19481

SPRING WASHER

WASHER - lock, -5/16"

4шт.

32

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

4шт.

33

K917126

HOSE

CONNECTION - 1-3/4 x 2-3/8" (44.45 x 60.325 mm)

2шт.

34

K204087

PIPE

INLET PIPE - front

1шт.

35

K950129

FITTING

ELBOW - pump inlet

1шт.

FOR A DOWTY PUMP IS K205713.

1шт.

36

K623561

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

- 1" (25.4 mm) internal diameter

1шт.

37

K600211

BOLT

- 5/16 UNC x 2-1/4"

2шт.

38

K19481

SPRING WASHER

WASHER - lock, - 5/16"

2шт.
