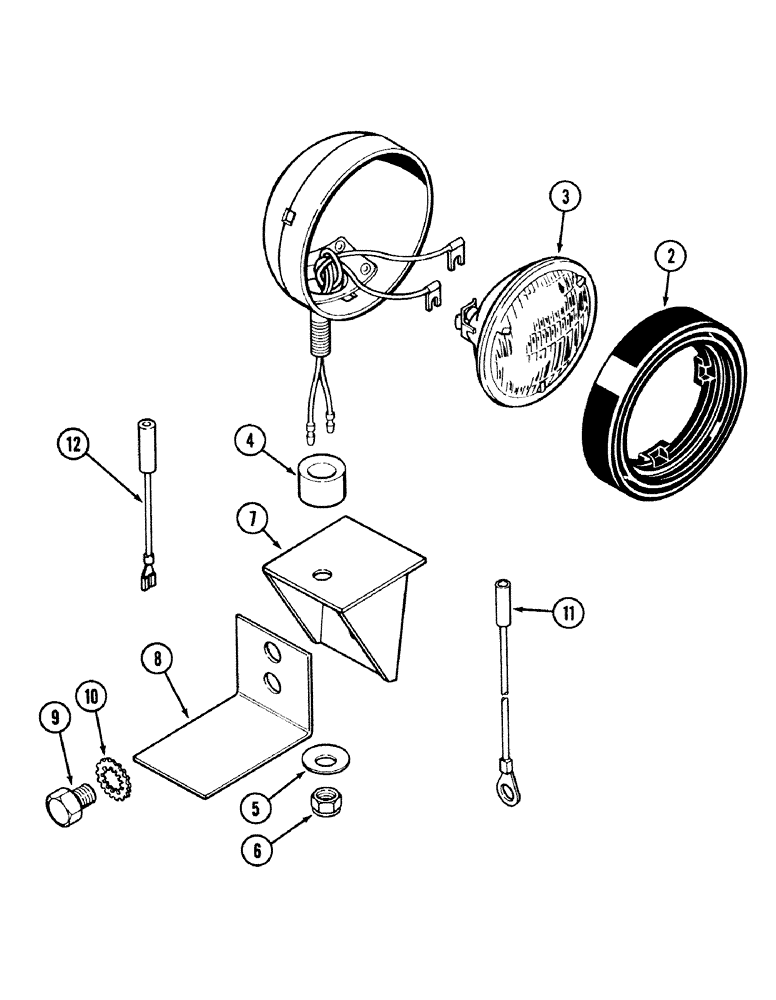

Запчасти Case IH 1490 (S15-1) - UPPER FLOOD LAMP ATTACHMENT, CAB MODELS (06) - ELECTRICAL SYSTEMS

A161898

X

ATTACHMENT - upper flood lamp, front and rear, Includes: Ref. 2 - 12

1шт.

A145495

LAMP

ASSEMBLY, Includes: Ref. 2 - 4

2шт.

2

A25213

RETAINER

- bulb

1шт.

3

A47179

BULB

- sealed beam (#H7606)

1шт.

4

D37048

BUSHING

- pivot

1шт.

5

D37049

WASHER

- mounting

2шт.

6

129-125

NUT,1/2"-20, G5

2шт.

7

A149102

BRACKET

- mounting

2шт.

8

A149792

GUARD

SHIELD - flood lamp

2шт.

9

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

10

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

11

A147344

ELECTRICAL WIRE

WIRE - ground

2шт.

12

A160351

ELECTRICAL WIRE

WIRE - adapter

2шт.
