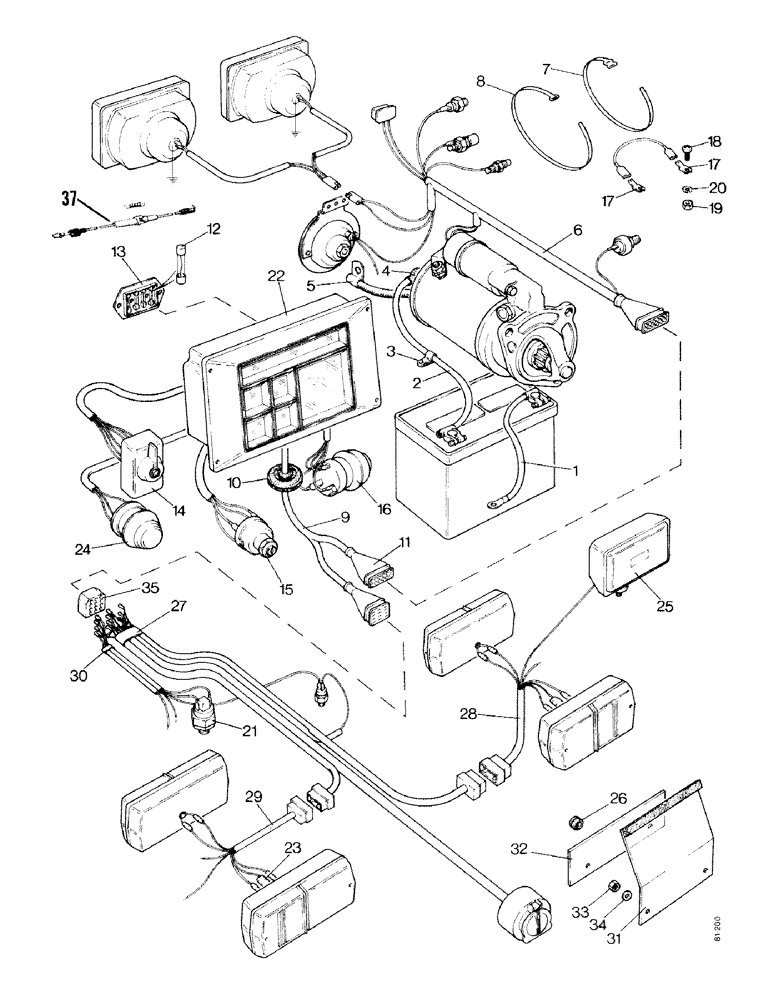

Запчасти Case IH 1490 (S13-1) - WIRING, HIGH PLATFORM (06) - ELECTRICAL SYSTEMS

1

K917372

CABLE

- ground

1шт.

2

K202240

CABLE

- positive

1шт.

3

K15518

CLAMP

CLIP - cable

2шт.

4

K87560

CONTACT HOUSING

RUBBER COVER - starter terminal

1шт.

5

K947336

CABLE

-, Serial Range: starter-ground

1шт.

6

K302413

HARNESS

- engine auxiliaries, Serial Range: -11184693

1шт.

6

K304905

HARNESS

AUXILIARY - engine auxiliaries, Start Serial: 11184693

1шт.

K304902

TERMINAL CONNECTOR

COVER - end, harness

1шт.

7

K19928

CLIP

STRAP - 7" (177.8 mm) long

3шт.

8

K621702

CLIP

STRAP - 10" (254.0 mm) long

2шт.

9

K300817

PANEL

HARNESS - cluster, Serial Range: -11184693

1шт.

Ref. 9 - (11 Blade connectors)

1шт.

9

K304222

PANEL

HARNESS - cluster, Start Serial: 11184693

1шт.

Ref. 9A - (12 Round Point Connectors)

1шт.

10

K627759

GROMMET

- harness

1шт.

11

K951338

BELLOWS

COVER - harness

2шт.

12

K947431

FUSE

- 35 amp

1шт.

13

K950625

BOX, FUSE

FUSE BOX - see Figure S09-1

1шт.

14

K300893

SWITCH

- flasher and turn signal

1шт.

Use K301091 switch and A77185 handle.

1шт.

15

K203992

IGNITION SWITCH

SWITCH - isolating/starter

1шт.

16

K300657

SWITCH

- lighting/horn push

1шт.

17

K925268

BLADE

CONNECTOR - wire

2шт.

18

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

- no. 10 x 1/2"

1шт.

19

K617080

NUT

- no. 10

1шт.

20

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

21

K200652

NEUTRAL START SWITCH

SAFETY SWITCH - starter

1шт.

22

K300268

CLUSTER

INSTRUMENT PANEL - see Figure B10-1

1шт.

23

K86230

CONNECTOR, ELEC

CONNECTOR - double

2шт.

24

K302399

SWITCH

- flood lamp (Replaces K303999)

1шт.

25

K302373

LAMP, WORK

LAMP - flood

4шт.

26

K627705

GROMMET

- split, 1/2" (12.7 mm) diameter

4шт.

27

K303912

HARNESS

- rear wiring assembly (Sekura 43192)

1шт.

28

K303913

HARNESS

- right-hand fender (Sekura 43193)

1шт.

29

K303914

HARNESS

- left-hand fender (Sekura 43194)

1шт.

30

K303915

HARNESS

- starter safety switch and fuel gauge (Sekura 43195)

1шт.

31

K302860

GUARD

- harness, rear lamps

2шт.

32

K302862

GUARD

- harness, front lamps

2шт.

33

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

16шт.

34

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

35

K303924

CONNECTOR, ELEC

CONNECTOR - rear wiring

1шт.

37

K304217

FUSE

HOLDER ASSEMBLY - fuse (On tractors with cab)

1шт.

K304216

FUSE

- 50 ampere

1шт.
