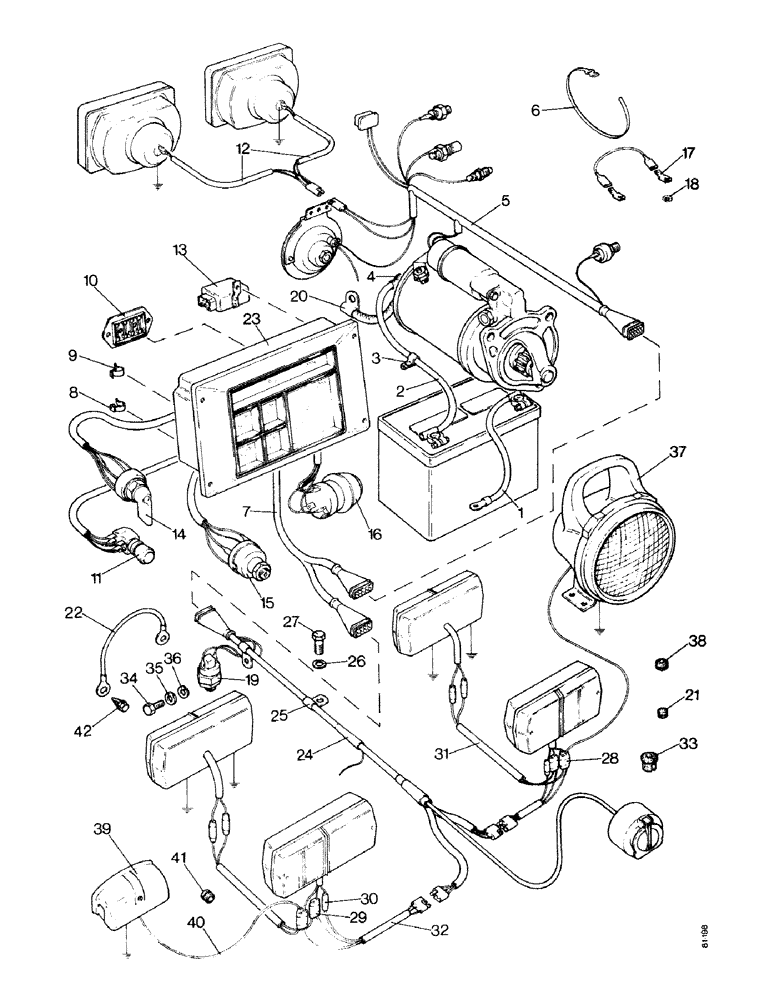

Запчасти Case IH 1490 (S12-1) - WIRING, LOW PROFILE (06) - ELECTRICAL SYSTEMS

1

K917372

CABLE

-, Serial Range: battery-ground

1шт.

2

K202240

CABLE

-, Serial Range: battery-starter

1шт.

3

K15518

CLAMP

CLIP - cable

2шт.

4

K87560

CONTACT HOUSING

RUBBER COVER - starter terminal

1шт.

5

K956790

HARNESS

- engine auxiliaries, Serial Range: -11185693

1шт.

5

K304907

HARNESS

- engine auxiliaries, Start Serial: 11185693

1шт.

6

K19928

CLIP

STRAP - retaining

3шт.

7

K300779

HARNESS

- instrument panel

1шт.

8

K625018

CLIP

- retaining

2шт.

9

K625019

CLIP

- retaining

2шт.

10

K950625

BOX, FUSE

FUSE BOX - see Figure S9

1шт.

11

K300833

SWITCH

- hazard warning

1шт.

12

K300731

HARNESS

- head lamps

1шт.

13

K948611

FLASHER UNIT

UNIT - flasher

1шт.

14

K300781

FLASHER SWITCH

SWITCH - direction indicators

1шт.

15

K203992

IGNITION SWITCH

SWITCH - isolating/starter

1шт.

16

K300657

SWITCH

- lighting/horn push

1шт.

17

K925268

BLADE

CONNECTOR - wire

1шт.

18

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

19

K200652

NEUTRAL START SWITCH

SAFETY SWITCH - starter

1шт.

20

K947336

CABLE

-, Serial Range: starter-ground

1шт.

21

K627713

PLUG

- 7/32" (5.556 mm) fender

2шт.

22

K200606

ELECTRICAL WIRE

LEAD - ground

1шт.

23

K300268

CLUSTER

INSTRUMENT PANEL - see Figure B10-1

1шт.

24

K300780

HARNESS

- rear lamps

1шт.

25

K621618

CLIP

- retaining

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW - 5/16 UNC x 5/8"

1шт.

28

K908905

CONNECTOR, ELEC

CONNECTOR - 3-way

1шт.

29

K86230

CONNECTOR, ELEC

CONNECTOR - double

3шт.

30

K67916

ELEC CONNECTOR

CONNECTOR - single

2шт.

31

K300730

HARNESS

- fenders

2шт.

32

K300854

HARNESS

- fenders

2шт.

33

K627716

GROMMET

- 13/16" (20.638 mm)

2шт.

34

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW - 5/16 UNC x 5/8"

1шт.

35

K626682

WASHER

- 5/16" (7.938 mm) special

1шт.

36

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

37

K301230

LAMP

- flood

1шт.

38

K627705

GROMMET

- 1/2" (12.7 mm)

1шт.

39

K943308

PLATE

LIGHT - number plate

1шт.

40

K301332

PLATE

LEAD - number plate light

1шт.

41

K627705

GROMMET

- 1/2" (12.7 mm)

1шт.

42

K624532

SCREW

- self-tapping

1шт.
