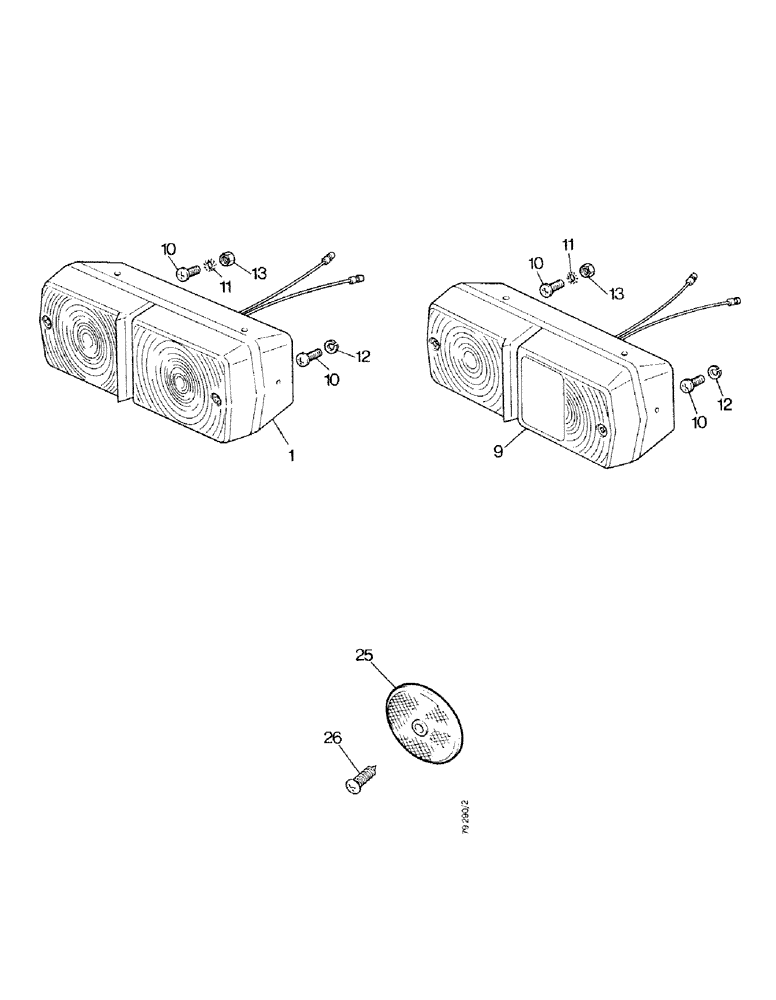

Запчасти Case IH 1490 (S11-1) - SIDE LAMPS AND REAR LAMPS, LOW PROFILE, HIGH PLATFORM (06) - ELECTRICAL SYSTEMS

1

K300195

LIGHT

SIDE/FLASHER LAMP - left-hand

1шт.

K260911

LENS

- lamp

1шт.

1

K300194

LIGHT

SIDE/FLASHER LAMP - right-hand

1шт.

K260911

LENS

- lamp

1шт.

9

K300189

LAMP

REAR/STOP/FLASHER LAMP - right-hand

1шт.

K260880

LENS

- lamp

1шт.

9

K302957

LAMP

REAR/STOP/FLASHER LAMP - left-hand

1шт.

K260880

LENS

- lamp

1шт.

9

K302956

LAMP

REAR/STOP/FLASHER LAMP - right-hand

1шт.

K260880

LENS

- lamp

1шт.

10

K652463

SCREW

- M5 x 12, lamps to fenders (Low Profile)

8шт.

10

K613147

SCREW

SETSCREW - 1/4 UNF x 1", lamps to fenders (High Platform)

8шт.

11

K11519

WASHER

- lock, 3/16", lamps to fenders (High Platform)

8шт.

12

K651846

WASHER, LOCK

WASHER - lock, 5 mm, lamps to fenders (Low Profile)

8шт.

13

K651525

NUT

- M5, lamps to fenders (High Platform)

8шт.

25

K302778

REFLECTOR

- red (High Platform)

2шт.

26

K624797

SCREW

- self-tapping, no. 6 x 1/2" (High Platform)

2шт.
