(20) - FENDER MOUNT VIBRATION KIT, 1412 TRACTORS

Запчасти Case IH 1412 (20) - FENDER MOUNT VIBRATION KIT, 1412 TRACTORS (09) - CHASSIS

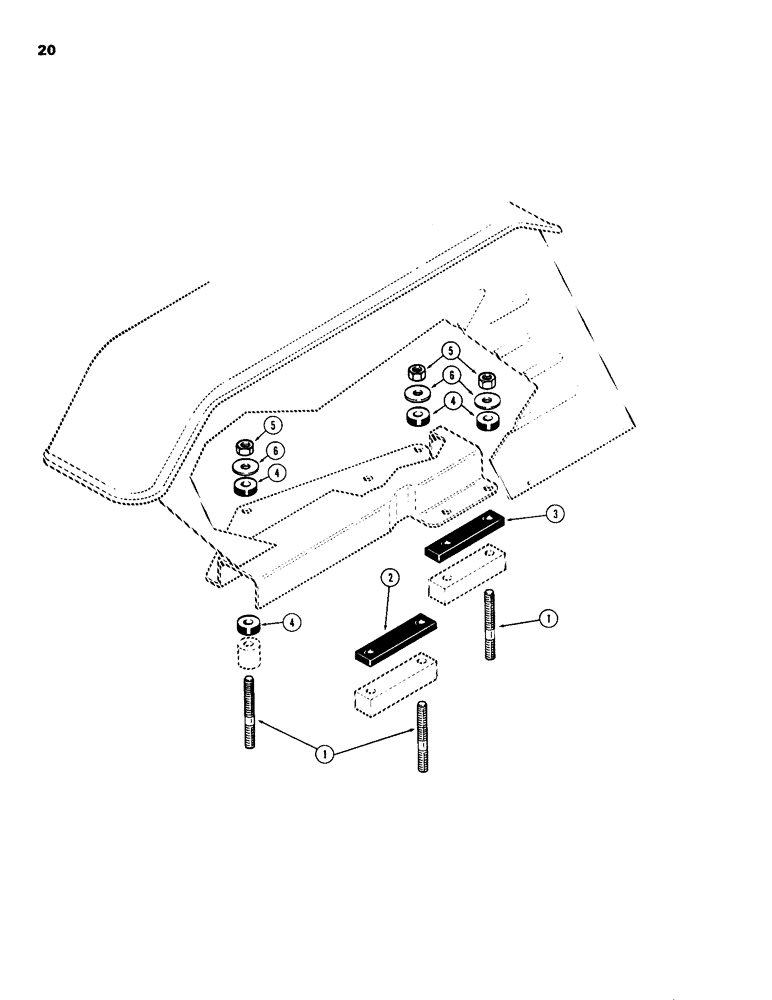

Схема запчастей Case IH 1412 - (20) - FENDER MOUNT VIBRATION KIT, 1412 TRACTORS (09) - CHASSIS
3
4
1
6
6
2
5
4
4
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A67390

MOUNTING PARTS

KIT mount, fender vibration, Includes Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

STUD fender mounting

10шт.

2

NSS

NOT SOLD SEPARAT

SPACER outer, fender

2шт.

3

NSS

NOT SOLD SEPARAT

SPACER inner, fender

2шт.

4

NSS

NOT SOLD SEPARAT

BUSHING fender, anti-vibration

12шт.

5

131-460

LOCK NUT,5/8"-11

NUT hex, 5/8 x 11" NC

10шт.

6

95-10

WASHER,5/8"

11/16 x 1-3/4 x 9/64", 17.5 x 44.5 x 3.6 mm

10шт.
