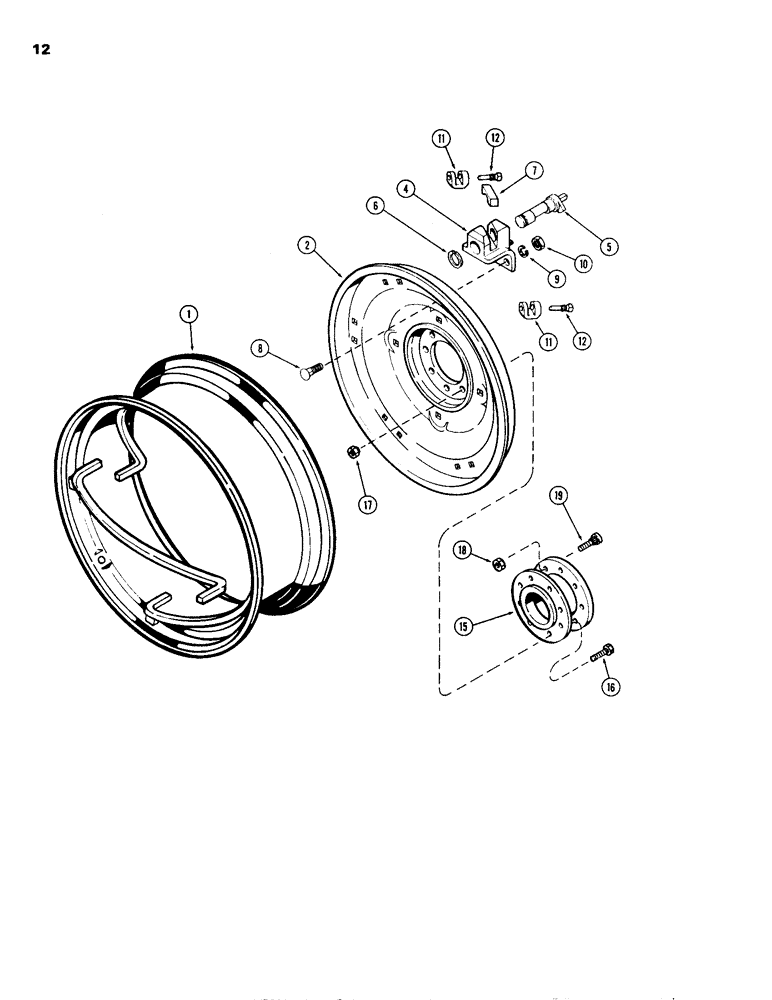

Запчасти Case IH 1412 (12) - REAR WHEELS, 990, 995 AND 1210, 1410 ROW CROP TRACTORS (06) - POWER TRAIN

A147232

RIM

WHEEL ASSEMBLY rear, W14L-38, Includes Ref. 2 - 12

2шт.

1

A45192

WHEEL

RIM power adjust rear wheel, takes 15.5 x 38 tire, Replaces A45191

1шт.

A147233

WHEEL ASSEMBLY rear, W11-38, Includes Ref. 2 - 12

2шт.

1

K917334

SPARE PART

RIM power adjust rear wheel, takes 13.6 x 38 tire, Replaces A45191

1шт.

2

A147234

DISC

wheel center

1шт.

A41739

ECCENTRIC

PIN ASSEMBLY eccentric, Includes Ref. 4, 5 and 6

6шт.

4

NSS

NOT SOLD SEPARAT

BODY eccentric pin

1шт.

5

A42898

PIN

eccentric

1шт.

6

A42897

RING snap, pin retaining

1шт.

7

A41741

BLOCK

eccentric pin

6шт.

8

111-614

CARRIAGE BOLT,Short NK, 5/8"-11 x 1 5/8", G5

BOLT round head square neck, 5/8 x 1-5/8" NC

12шт.

9

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

10

129-107

NUT,5/8"-11, G5

12шт.

11

A41740

STOP

BODY wheel stop

2шт.

12

A9440

STOP

SCREW lock, stop body

2шт.

15

A153472

SPACER rear wheel

2шт.

16

114-714

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

hex, 3/4 x 2-1/4" NF

16шт.

17

K617176

NUT

spacer to wheel, hex special, 3/4" NF

16шт.

18

129-128

NUT,3/4"-16, G5

hex, 3/4" NC

16шт.

19

K611463

STUD

BOLT, Serial Range: spacer-axle

16шт.
