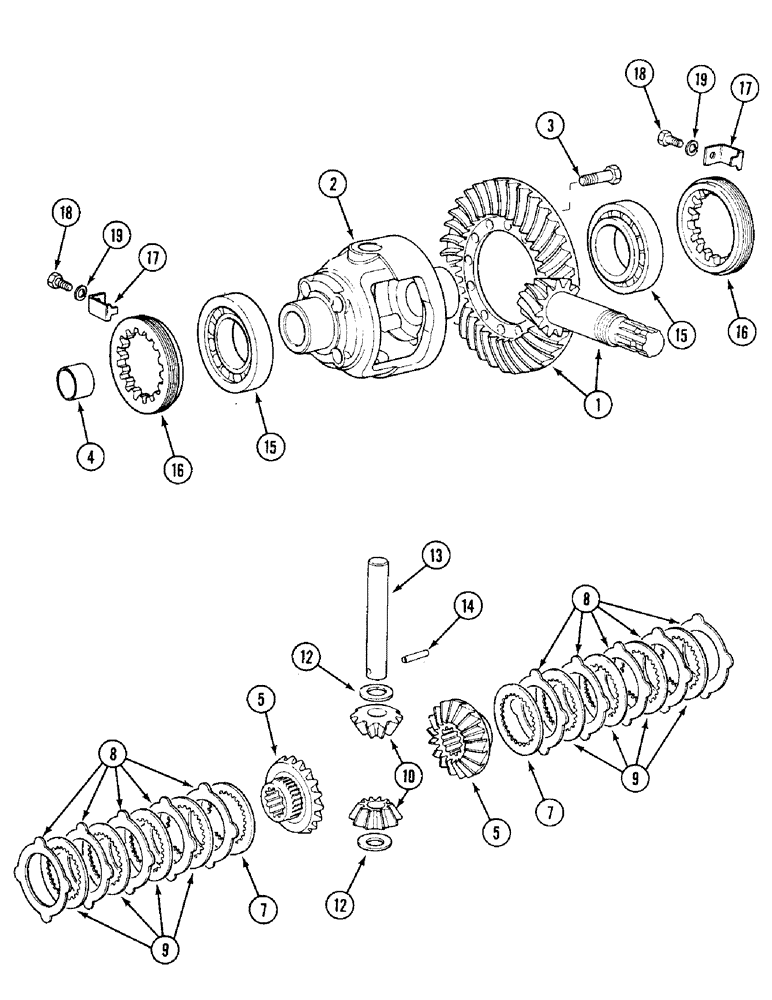

Запчасти Case IH 1394 (5-174) - FRONT AXLE DIFFERENTIAL, MFD TRACTORS, P.I.N. 11503001 AND AFTER (05) - STEERING

1

K262181

GEAR, BEVEL

GEAR AND PINION - 13/31 ratio (Carraro 65447) Standard tractor

1шт.

1

K262220

GEAR, BEVEL

GEAR AND PINION - 9/37 ratio (Carraro 65491) Vegetable special

1шт.

2

NSS

NOT SOLD SEPARAT

CAGE - differential, Includes: housing assembly, gears, and bolts

1шт.

109686A1

HOUSING ASSY.

HOUSING ASSEMBLY - differential

1шт.

1349057C1

PINION

GEAR - side

2шт.

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm, class 10.9

12шт.

4

K395085

BUSHING

- differential case

2шт.

5

K262508

GEAR

- sun

2шт.

7

1966154C1

PLATE

- backing

1шт.

7

1966154C1

PLATE

- backing

1шт.

8

1966155C1

PLATE

- drive

5шт.

9

1966156C1

WASHER

PLATE - driven

4шт.

10

K262507

GEAR

- sun

2шт.

12

K395075

THRUST WASHER

WASHER, THRUST

2шт.

13

K395087

SHAFT

PIN - differential pinions

1шт.

14

K395086

PIN

- locking

1шт.

15

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED

2шт.

16

1966559C1

NUT

RING, LOCKING

2шт.

17

1966153C1

LOCKING PLATE

BRACKET - lock

2шт.

18

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.
