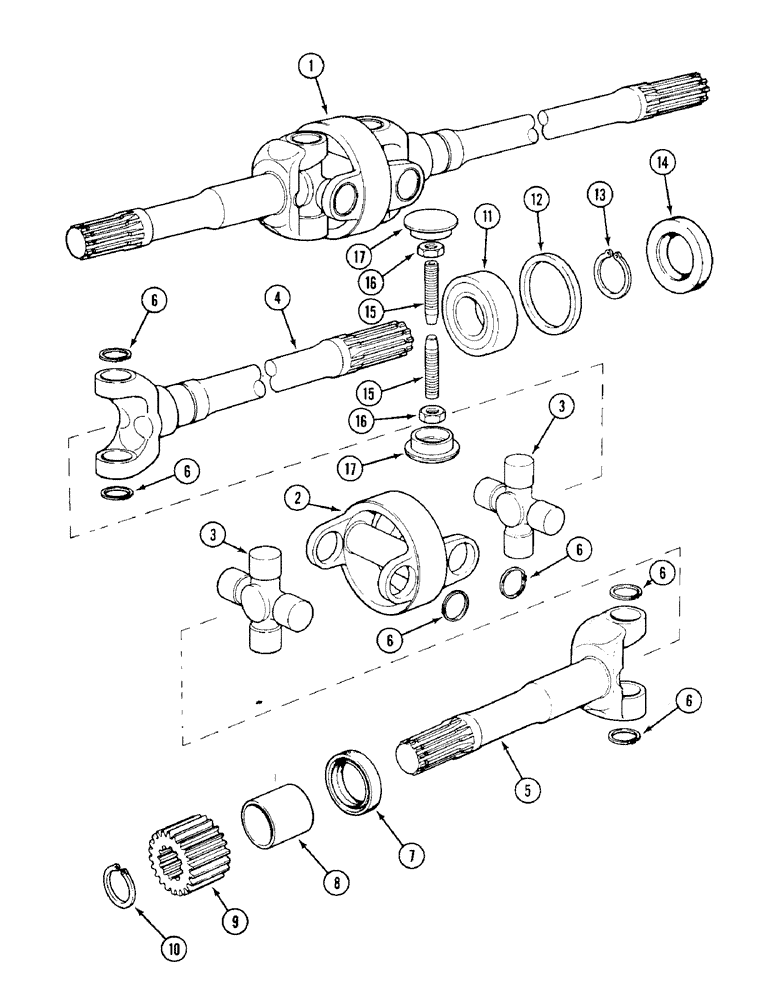

Запчасти Case IH 1394 (5-166) - AXLE HALF SHAFTS, MFD TRACTORS PRIOR TO P.I.N. 11503001 (05) - STEERING

1

NSS

NOT SOLD SEPARAT

HALF-SHAFT ASSEMBLY - axle (Standard tractor) Order components, Includes: Ref. 2 - 6

2шт.

2

K965332

HOUSING

- joint (Carraro 96868)

1шт.

3

K965331

SPIDER

UNIVERSAL JOINT - axle shaft (Carraro 96867)

2шт.

4

K965329

DRIVE

HALF-SHAFT - long (Carraro 102406)

1шт.

5

K965330

SHAFT

HALF-SHAFT - short (Carraro 96869)

1шт.

6

K965336

RING, SNAP

RING - snap (Carraro 40181)

8шт.

1

NSS

NOT SOLD SEPARAT

HALF-SHAFT ASSEMBLY - axle (Vegetable special) Order components, Includes: Ref. 2 - 6

2шт.

2

K260190

JOINT

HOUSING - joint

1шт.

3

K260189

JOINT

UNIVERSAL JOINT - axle shaft

2шт.

4

N7543

SHAFT

HALF-SHAFT - long

1шт.

5

N7542

SHAFT

HALF-SHAFT - short

1шт.

6

K260188

RING, SNAP

RING - snap

8шт.

7

N8897

OIL SEAL

SEAL - oil (Carraro 118675)

2шт.

8

K965322

BUSHING

- shaft (Carraro 88674)

2шт.

9

K965312

GEAR

- drive (Carraro 88558)

2шт.

10

800-1135

SNAP RING,M35, Ext

2шт.

11

K965333

BALL BEARING,40mm ID x 80mm OD x 23mm W

BEARING - shaft (Carraro 26024)

2шт.

12

K965337

SEAL

- bearing (Carraro 95951) (Vegetable special)

2шт.

13

800-1140

SNAP RING,M40, Ext

2шт.

14

K965335

OIL SEAL,40mm ID x 72mm OD x 10mm Thk

- oil (Carraro 25193)

2шт.

15

K965232

BOLT,M10 x 1.25 x 35mm, Cl 10.9

SCREW - bearing locating (Carraro 95952)

4шт.

16

825-1414

NUT,M14, Cl 8

- hex, 14 mm

4шт.

17

K260135

PLUG

- axle housing (Carraro 107811)

4шт.
