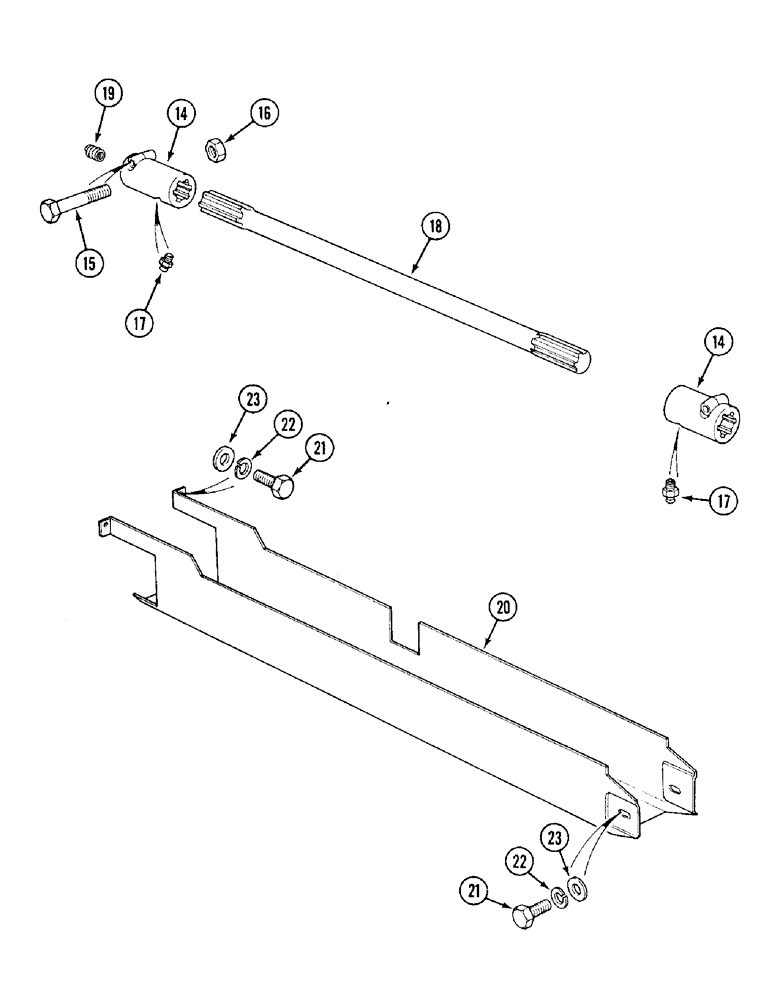

Запчасти Case IH 1394 (5-164) - FRONT DRIVE SHAFT, MFD TRACTORS PRIOR TO P.I.N. 11503001 (05) - STEERING

14

K260761

SPLINED COUPLING

SLEEVE - coupling (Carraro 102033/1)

2шт.

15

514-723

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

- hex, 10 - 1.25 x 60 mm

2шт.

16

K965414

NUT

- M10 (Carraro 22411)

2шт.

17

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

2шт.

18

K260759

DRIVE SHAFT

SHAFT - axle drive (Carraro 111246)

1шт.

19

K965410

SPRING

- tension (Carraro 83787)

2шт.

20

K205187

GUARD

- shaft (Carraro 117953) 40 inch

1шт.

21

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

4шт.

21

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

(Vegetable special) Hex, M8 x 40, 8.8

2шт.

22

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

23

K205188

BUSHING

SPACER - guard (Carraro 87166)

4шт.
