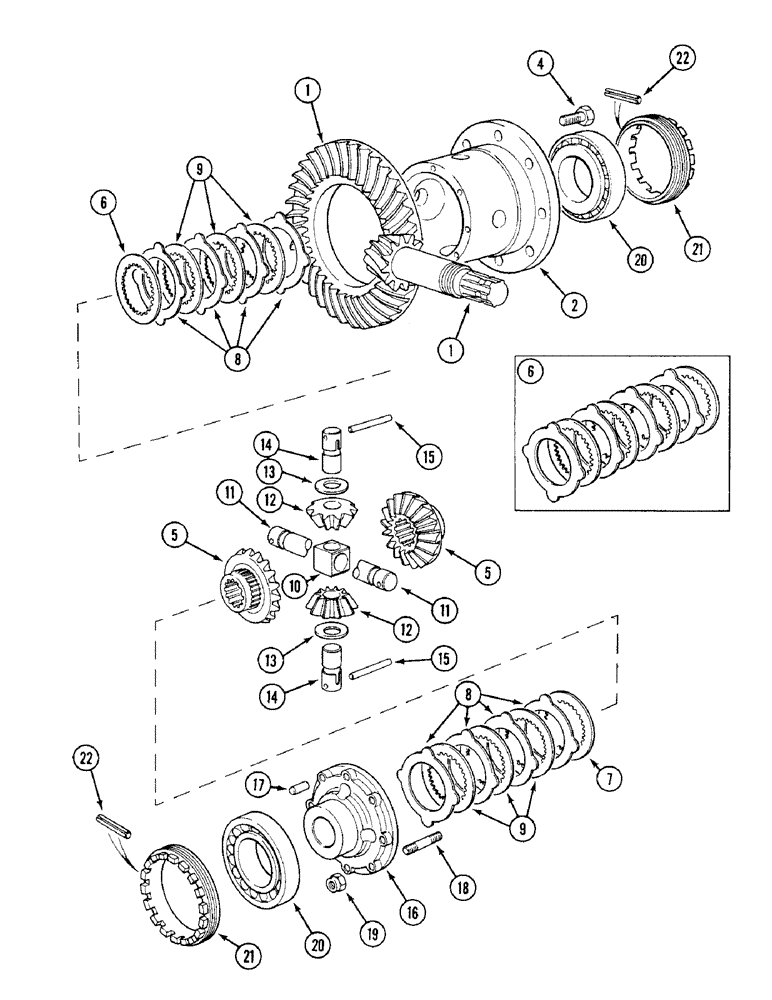

Запчасти Case IH 1394 (5-162) - FRONT AXLE DIFFERENTIAL, MFD TRACTORS PRIOR TO P.I.N. 11503001 (05) - STEERING

1

K261012

GEAR, BEVEL

SPIRAL GEAR AND PINION - spiral ratio 8/35 (Carraro 65397)

1шт.

2

K260763

HOUSING

CAGE - differential (Carraro 106764)

1шт.

4

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

5

K260774

GEAR

WHEEL - bevel (Carraro 112744)

2шт.

6

K261651

PLATE

PACK - friction, Includes: Ref. 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

PLATE - backing, 2.8 mm (Carraro 105946)

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - backing, 2.7 mm (Carraro 104299)

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - friction, outer, 1.3 mm (Carraro 104300)

4шт.

9

NSS

NOT SOLD SEPARAT

PLATE - friction, inner, 1.6 mm (Carraro 104298)

3шт.

10

K965353

BLOCK

- pin (Carraro 84171)

1шт.

11

K965352

PIN

- block (Carraro 70270)

1шт.

12

E43052

GEAR

PINION GEAR - pinion (Carraro 109848)

4шт.

13

1967521C1

WASHER

WASHER - special (Carraro 99901)

4шт.

14

K965354

PIN

- pinion (Carraro 84167)

2шт.

15

K965349

PIN

- dowel (Carraro 70273)

3шт.

16

K260762

PLATE

- end (Carraro 105947)

1шт.

17

K260177

PIN

DOWEL - plate (Carraro 72259)

2шт.

18

K260180

STUD

- plate (Carraro 104407)

6шт.

19

K260181

NUT

- self-locking (Carraro 22412)

6шт.

20

K965339

BEARING

- taper roller (Carraro 27307)

2шт.

21

K965338

LOCK

RING - lock (Carraro 88697)

2шт.

22

838-5422

LOCK PIN,M4 x 22, Slotted

PIN - roll

2шт.
