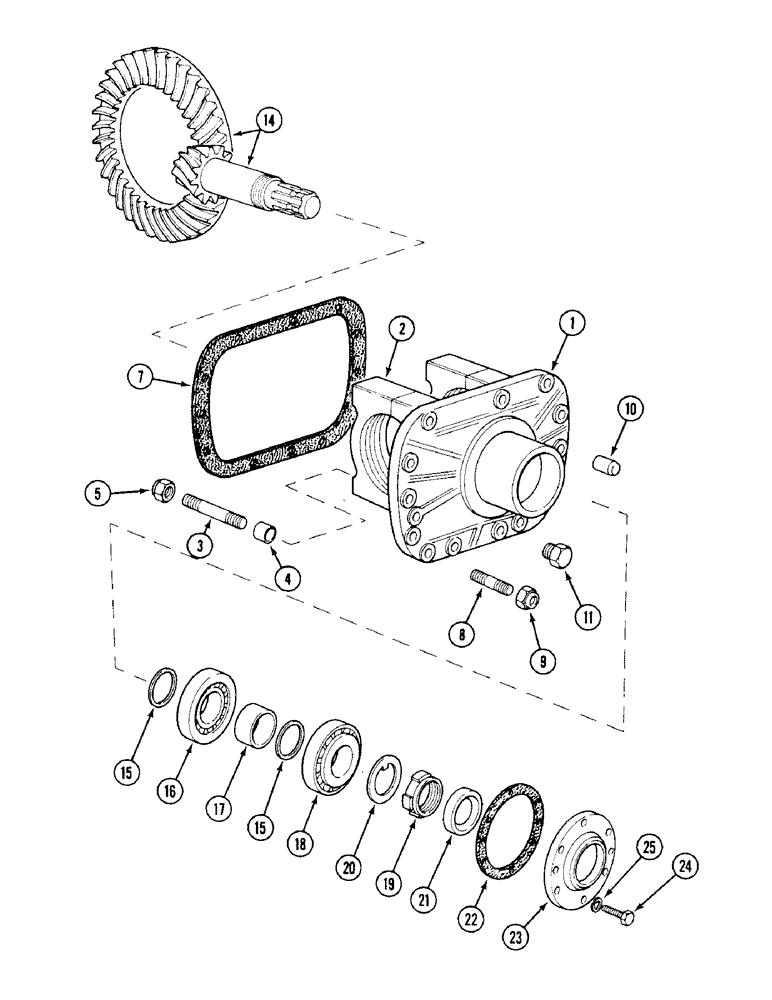

Запчасти Case IH 1394 (5-160) - FRONT AXLE DIFFERENTIAL HOUSING, VEGETABLE SPECIAL (05) - STEERING

1

N7528

SUPPORT

CARRIER ASSEMBLY - differential, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

3

K965257

STUD

- M14 (Carraro 95319)

4шт.

4

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

- ring

4шт.

5

905873R1

NUT,M14 x 1.5, G8

NUT - M14, self locking

4шт.

7

N7524

GASKET

GASKET - axle housing

1шт.

8

1966562C1

STUD

- M12 x 50 mm

9шт.

9

905834R1

THIN NUT,M12 x 1.25, Thin

Hex M12 x 1.25, Thin

9шт.

10

1966138C1

DOWEL

PIN - dowel, axle housing

1шт.

11

110782A1

PLUG, DRAIN

PLUG - differential housing

1шт.

14

K261012

GEAR, BEVEL

SPIRAL GEAR AND PINION - 8/35 ratio (Carraro 65397)

1шт.

15

K965280

SHIM,2.50mm Thk

(Carraro 98427) 2.50mm Thk

1шт.

15

K965282

SHIM,2.60mm Thk

(Carraro 98426) 2.60mm Thk

1шт.

15

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

(Carraro 98425) 2.70mm Thk

1шт.

15

K965286

SHIM,2.85mm Thk

(Carraro 98424) 2.80mm Thk

1шт.

15

K965288

SHIM,2.90mm Thk

(Carraro 98244) 2.90mm Thk

1шт.

15

K965290

SPACER

SHIM - 3.0 mm (Carraro 98239)

1шт.

15

K965292

SHIM,3.10mm Thk

(Carraro 98240) 3.10mm Thk

1шт.

15

K965293

SHIM,3.15mm Thk

(Carraro 100163) 3.15mm Thk

1шт.

15

K965294

SHIM,3.20mm Thk

(Carraro 98241) 3.20mm Thk

1шт.

15

K965295

SHIM,3.25mm Thk

(Carraro 100164) 3.25mm Thk

1шт.

15

K965296

SHIM,3.30mm Thk

(Carraro 98242) 3.30mm Thk

1шт.

15

K965298

SHIM,3.40mm Thk

(Carraro 98243) 3.40mm Thk

1шт.

16

K965357

BEARING

- pinion (Carraro 27406)

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - Order1349058C1 & 1349059C1

1шт.

18

1964249C1

TAPERED BEARING,40 mm ID x 90 mm OD x 25.25 mm

BEARING -

1шт.

19

K261014

RING NUT,M40 x 1.5

RING - lock, M40 (Carraro 115054)

1шт.

21

K965361

OIL SEAL,35mm ID x 55mm OD x 10mm Thk

- oil (Carraro 25372) (Prior to axle DB13V/349)

1шт.

21

N8895

OIL SEAL

- oil (Carraro 118674) (Axle DB13V/349 and after)

1шт.

22

K965364

GASKET

- flange (Carraro 96932)

1шт.

23

N8894

COVER

FLANGE - bearing (Carraro 115987)

1шт.

24

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

6шт.

25

8921108

WASHER - lock, 8 mm

6шт.
