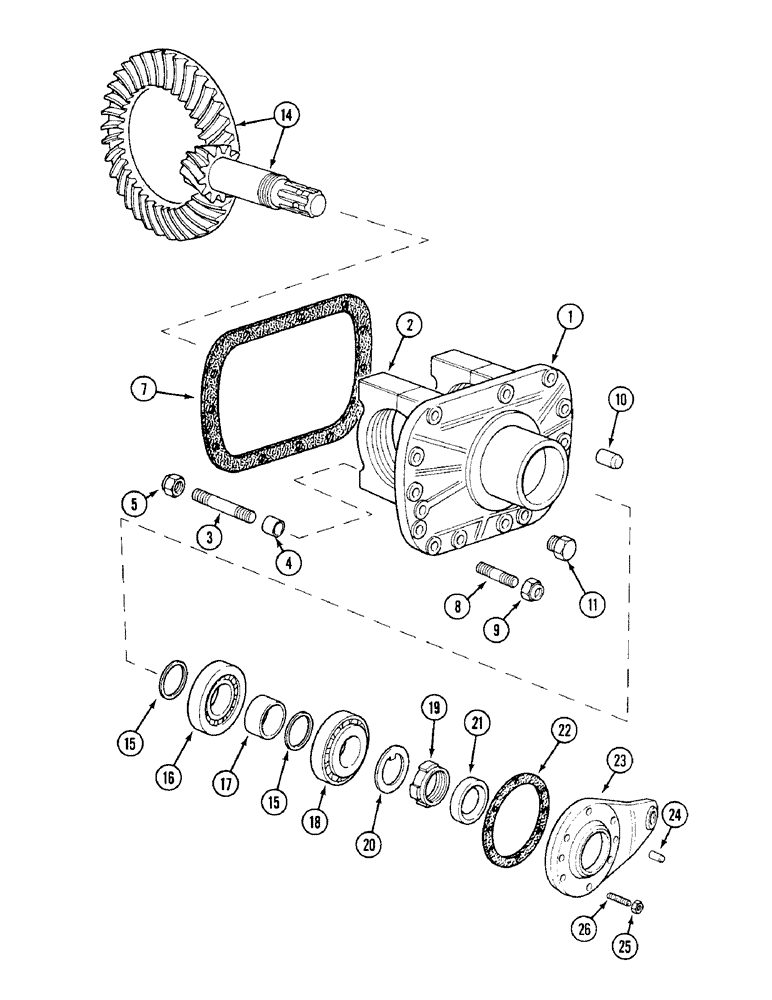

Запчасти Case IH 1394 (5-158) - FRONT AXLE DIFFERENTIAL HOUSING, MFD TRACTORS PRIOR TO P.I.N. 11503001 (05) - STEERING

1

K965258

DIFFERENTIAL

HOUSING - differential (Carraro 101426/2), Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

3

K965257

STUD

- M14 (Carraro 95319)

4шт.

4

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

- ring

4шт.

5

905873R1

NUT,M14 x 1.5, G8

NUT - M14, self locking

4шт.

7

K965251

GASKET

- axle housing (Carraro 101989)

1шт.

8

1966562C1

STUD

- M12 x 50 mm

9шт.

9

905834R1

THIN NUT,M12 x 1.25, Thin

Hex M12 x 1.25, Thin

9шт.

10

1966138C1

DOWEL

PIN - dowel

1шт.

11

K965253

STUD

PLUG - differential housing (Carraro 92269)

2шт.

14

K261012

GEAR, BEVEL

SPIRAL GEAR AND PINION - 8/35 ratio (Carraro 65397)

1шт.

15

K965280

SHIM,2.50mm Thk

(Carraro 98427) 2.50mm Thk

1шт.

15

K965282

SHIM,2.60mm Thk

(Carraro 98426) 2.60mm Thk

1шт.

15

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

(Carraro 98425) 2.70mm Thk

1шт.

15

K965286

SHIM,2.85mm Thk

(Carraro 98424) 2.80mm Thk

1шт.

15

K965288

SHIM,2.90mm Thk

(Carraro 98244) 2.90mm Thk

1шт.

15

K965290

SPACER

SHIM - 3.0 mm (Carraro 98239)

1шт.

15

K965292

SHIM,3.10mm Thk

(Carraro 98240) 3.10mm Thk

1шт.

15

K965293

SHIM,3.15mm Thk

(Carraro 100163) 3.15mm Thk

1шт.

15

K965294

SHIM,3.20mm Thk

(Carraro 98241) 3.20mm Thk

1шт.

15

K965295

SHIM,3.25mm Thk

(Carraro 100164) 3.25mm Thk

1шт.

15

K965296

SHIM,3.30mm Thk

(Carraro 98242) 3.30mm Thk

1шт.

15

K965298

SHIM,3.40mm Thk

(Carraro 98243) 3.40mm Thk

1шт.

16

K965357

BEARING

- pinion (Carraro 27406)

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - Order 1349058C1 & 1349059C1

1шт.

18

1964249C1

TAPERED BEARING,40 mm ID x 90 mm OD x 25.25 mm

BEARING -

1шт.

19

K261014

RING NUT,M40 x 1.5

RING - nut, lock, M40 (Carraro 115054)

1шт.

20

K261065

LOCK WASHER

- special

1шт.

21

K965361

OIL SEAL,35mm ID x 55mm OD x 10mm Thk

- oil (Carraro 25372) (Prior to axle DB14/1440)

1шт.

21

N8895

OIL SEAL

- oil (Carraro 118674) (Axle DB14/1440 and after)

1шт.

22

K965364

GASKET

- flange (Carraro 96932)

1шт.

23

K262148

LEVER

FLANGE - bearing (Carraro 118402)

1шт.

24

K260163

PIN

DOWEL - locating (Carraro 79582)

1шт.

25

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm - 1.25, class 10.9

6шт.

26

K262031

STUD

- M8 (Carraro 111321)

6шт.
