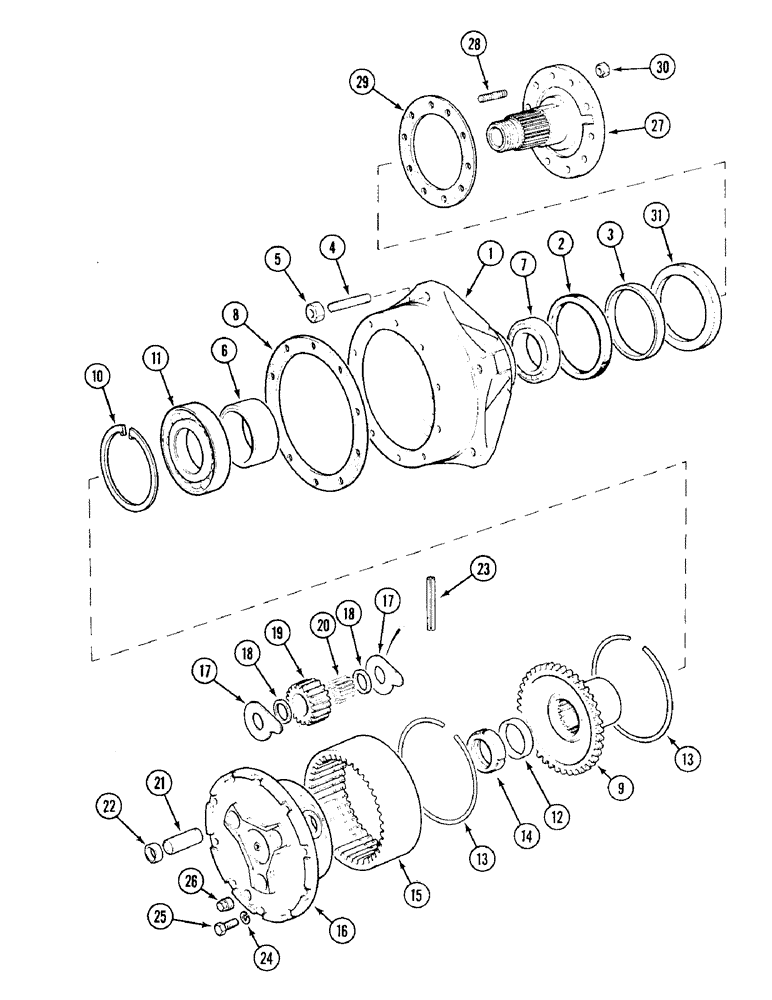

Запчасти Case IH 1394 (5-156) - FRONT HUBS AND PLANETARIES, MFD TRACTORS PRIOR TO P.I.N. 11503001 (05) - STEERING

1

REF

INSTRUCTION

HUB - wheel (Standard tractor), Order 1349389C1 and N8898

2шт.

Tractors with axles prior to number JB13V/349.

1шт.

1

1349389C1

HOUSING

HUB - wheel (Vegetable special)

1шт.

Tractors with axles number DB13V/349 and after

1шт.

2

K965323

GASKET

- felt (Carraro 102148) (Standard tractor)

2шт.

Tractors with axles prior to number JB13V/349.

1шт.

3

K965324

SEAL,140mm ID x 170mm OD x 15mm Thk

- hub (Carraro 25346) (Standrad tractor)

2шт.

Tractors with axles prior to number JB13V/349.

1шт.

3

N8898

OIL SEAL

- hub (Vegetable special)

2шт.

Tractors with axles number DB13V/349 and after

1шт.

4

K205125

STUD

- M14 x 52 mm (Carraro 104781) Steel wheel center

12шт.

4

K260765

STUD,M14 x 1.5 x 62mm, Cl 10.9

- M14 x 62 mm (Carraro 106198) Cast wheel center

12шт.

5

K965326

WHEEL NUT

- wheel, M14, hub stud (Carraro 104782)

12шт.

6

K965320

SPACER

- bearing (Carraro 88641)

1шт.

7

K965321

BALL BEARING

BEARING - inner (Carraro 25745)

2шт.

8

K965304

GASKET

- hub (Carraro 88643)

2шт.

9

K965317

CARRIER

GEAR - support (Carraro 88670)

2шт.

10

K965318

RING, SNAP

RING - snap (Carraro 24950)

2шт.

11

K965319

BEARING ASSY

BEARING - outer (Carraro 25817)

2шт.

12

K965316

BUSHING

SPACER - bearing (Carraro 88673)

2шт.

13

K965306

SNAP RING

RING - snap, snap (Carraro 88678)

4шт.

14

K965315

RING NUT

- lock, gear (Carraro 23319)

2шт.

15

K965314

GEAR

- internal (Carraro 88671)

2шт.

16

N7546

SUPPORT ASSY.

HOUSING - hub

2шт.

17

K965310

BEARING WASHER

RETAINER - bearing (Carraro 104479)

12шт.

18

K965311

WASHER

- gear (Carraro 100150)

12шт.

19

K965308

GEAR

- planetary (Carraro 100005)

6шт.

20

K965309

NEEDLE

BEARING - needle (Carraro 100148)

138шт.

21

K965307

AXLE PIN

SHAFT - gear (Carraro 100003)

6шт.

22

K965301

HOLE PLUG BUTTON

PLUG - shaft (Carraro 100002)

6шт.

23

110677A1

SPLIT PIN/SAFETY PIN

PIN - roll

6шт.

24

892-11010

LOCK WASHER,M10

(Carraro 22859) M10

20шт.

25

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

20шт.

26

110782A1

PLUG, DRAIN

PLUG - 24 mm, level

2шт.

27

K262149

SHAFT

AXLE - stub, stub (Carraro 118399)

2шт.

28

K965249

STUD

- axle stub (Carraro 96840)

20шт.

29

K965237

GASKET

- stub axle (Carraro 92522)

2шт.

30

905873R1

NUT,M14 x 1.5, G8

NUT - self-locking, M14

20шт.

31

K261816

WEAR RING

SLEEVE - wear

1шт.

Tractors with axles prior to number JB13V/349.

1шт.

31

1348396C1

SLEEVE - wear

1шт.

Tractors with axles number DB13V/349 and after

1шт.
