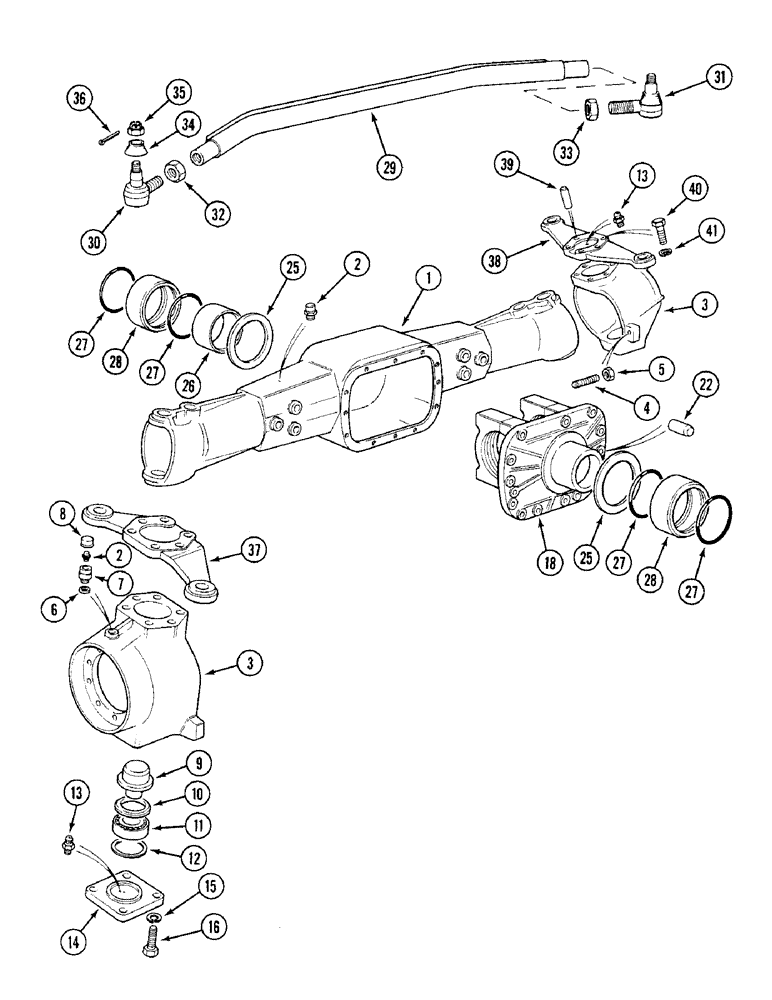

Запчасти Case IH 1394 (5-154) - FRONT AXLE HOUSING, MFD VEGETABLE SPECIAL (05) - STEERING

1

N7627

SHAFT

HOUSING - axle (Carraro 112865)

1шт.

2

1966149C1

BREATHER

- axle housing (Carraro 104988)

3шт.

3

N7523

STEERING KNUCKLE

SWIVEL HOUSING - stub axle (Carraro 113367)

2шт.

4

N7527

ADJUSTMENT SCREW

STUD - steering stop

2шт.

5

K965369

JAM NUT

- lock, M12 (Carraro 22123)

2шт.

6

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

2шт.

7

K260137

BLEEDER

RETAINER - breather (Carraro 107610)

2шт.

8

K956999

PLUG

COVER - breather (Carraro 30055)

2шт.

9

N7532

PIN,60mm OD x 57mm L

- bearing

4шт.

10

N7533

SEALING RING

- bearing

4шт.

11

N7534

ROLLER BEARING,30mm ID x 62mm OD x 17.25mm W

TAPERED ROLLER BEARING - swivel pin

4шт.

12

K965243

SHIM,0.1mm Thk

(Carraro 91179) 0.1mm Thk

1шт.

12

K965244

SHIM,0.3mm Thk

(Carraro 91180) 0.3mm Thk

1шт.

12

K965245

SHIM,0.5mm Thk

(Carraro 91181) 0.5mm Thk

1шт.

13

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

6шт.

14

K965242

COVER

- bearing (Carraro 88721)

3шт.

15

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

12шт.

16

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

BOLT - special, M14 x 35 mm

12шт.

18

N7528

SUPPORT

CARRIER ASSEMBLY - differential, See Figure 5-147

1шт.

25

K965264

WASHER

- thrust (Carraro 83352)

1шт.

26

K965266

BUSHING

SLEEVE - bushing (Carraro 101565/1)

1шт.

27

K965267

O-RING,0.07" Thk x 4.489" ID

RING - sealing (Carraro 28103)

4шт.

28

K965265

BUSHING

- steel (Carraro 101575/1)

2шт.

29

K261617

ROD

- track (Carraro 115609)

1шт.

30

K260254

BALL JOINT

ROD END - track, left-hand (Carraro 87031)

1шт.

31

K260250

BALL JOINT

ROD END - track, right-hand (Carraro 88759)

1шт.

32

K261615

NUT

RH Thread, M24 x 1.5 (Carraro 114857)

1шт.

33

K261616

NUT

LH Thread, M24 x 1.5 (Carraro 114749)

1шт.

34

K956939

CAP

BOOT - ball joint, rubber (Carraro 43962)

2шт.

35

K956938

SLOTTED NUT

- rod end (Carraro 22357)

2шт.

36

733-4032

COTTER PIN,M4 x 32

PIN, SPLIT (COTTER), M4 x 32

2шт.

37

N7551

ARM

LEVER - steering, left-hand

1шт.

38

N7550

ARM

LEVER - steering, right-hand

1шт.

39

K965275

PIN

DOWEL - locating (Carraro 93818)

2шт.

40

N7552

BOLT,M14 x 50mm

BOLT - steering lever, M18 (Carraro 21240)

8шт.

41

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

8шт.
