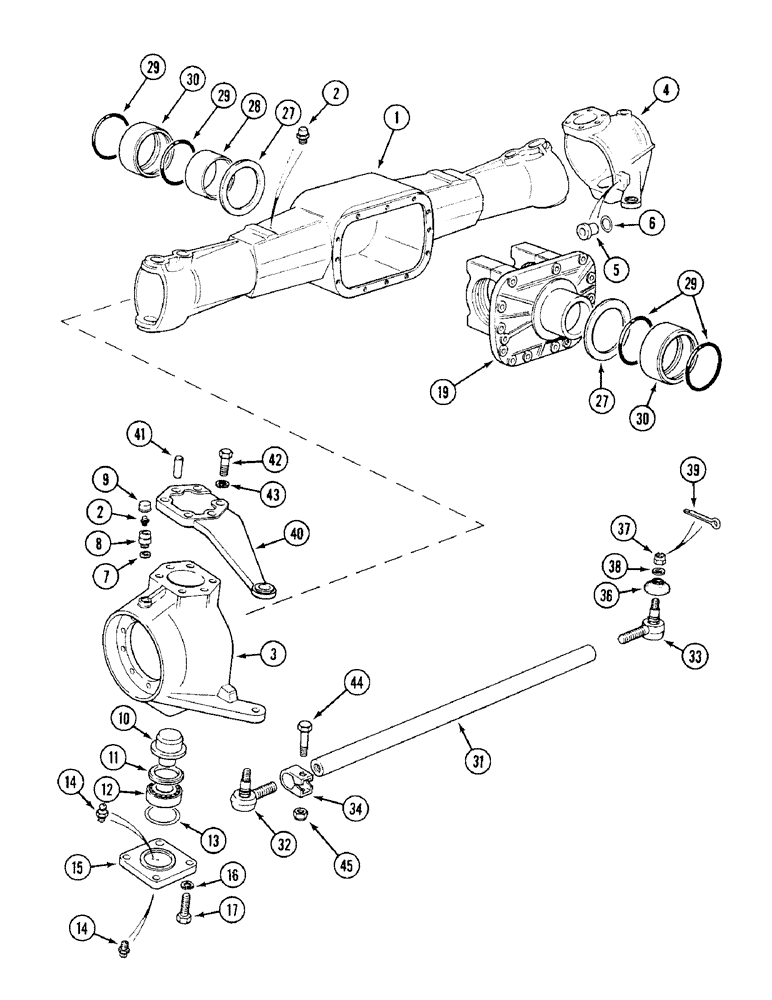

Запчасти Case IH 1394 (5-152) - FRONT AXLE HOUSING, MFD TRACTORS PRIOR TO P.I.N. 11503001 (05) - STEERING

1

K965230

AXLE

HOUSING - axle (Carraro 102177)

1шт.

2

1966149C1

BREATHER

- axle housing

3шт.

3

K262021

HOUSING

- stub axle, left-hand (Carraro 118087)

1шт.

4

K262020

HOUSING

- stub axle, right-hand

1шт.

5

K260775

STOP

- axle (Carraro 101034)

2шт.

6

K965261

SHIM

- 1.0 mm(Carraro 101035)

1шт.

7

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Retainer M18 x 24 x 1.5

2шт.

8

K260137

BLEEDER

RETAINER - breather (Carraro 107610)

2шт.

9

K956999

PLUG

COVER - breather (Carraro 30055)

2шт.

10

K965239

PIN

- bearing, bearing (Carraro 96851)

4шт.

11

K965240

BEARING COVER

SEAL - bearing (Carraro 88987)

4шт.

12

905845R91

TAPERED BEARING,25mm ID x 62mm OD x 25.25mm W

CONE AND CUP ASSEMBLYBEARING - pin (Carraro 27402)

4шт.

13

K965243

SHIM,0.1mm Thk

(Carraro 91179) 0.1mm Thk

1шт.

13

K965244

SHIM,0.3mm Thk

(Carraro 91180) 0.3mm Thk

1шт.

13

K965245

SHIM,0.5mm Thk

(Carraro 91181) 0.5mm Thk

1шт.

14

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

6шт.

15

K965242

COVER

- bearing (Carraro 88721)

3шт.

16

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

12шт.

17

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

BOLT - special, M18 x 55 mm (Carraro 20967)

12шт.

19

K965258

DIFFERENTIAL

HOUSING - differential, See Figure 5-145

1шт.

27

K965264

WASHER

- tthrust (Carraro 83352)

1шт.

28

K965266

BUSHING

SLEEVE - bushing (Carraro 101565/1)

1шт.

29

K965267

O-RING,0.07" Thk x 4.489" ID

RING - sealing (Carraro 28103)

4шт.

30

K965265

BUSHING

- steel (Carraro 101575/1)

2шт.

31

K205148

ROD

- track (Carraro 114853)

1шт.

32

K260250

BALL JOINT

ROD END - track, left-hand (Carraro 88759)

1шт.

33

K260254

BALL JOINT

ROD END - track, right-hand (Carraro 87031)

1шт.

34

N8904

CLAMP

- track rod (Carraro 114840)

2шт.

36

K260769

COVER

- rubber (Carraro 41437)

2шт.

37

1966626C1

NUT

- rod end (Carraro 41431)

2шт.

38

K262022

BUSHING

WASHER - rod end (Carraro 117577)

2шт.

39

733-3232

COTTER PIN,M3.2 x 32

PIN, SPLIT (COTTER), M3.2 x 32

2шт.

40

K260767

LEVER

ARM - steering (Carraro 112038)

1шт.

41

K965275

PIN

DOWEL - locating, (Carraro 93818)

2шт.

42

N7552

BOLT,M14 x 50mm

BOLT - steering lever, M18 (Carraro 21240)

4шт.

43

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

44

N8905

BOLT

- M16

2шт.

45

K260157

NUT

- self-locking M16

2шт.
