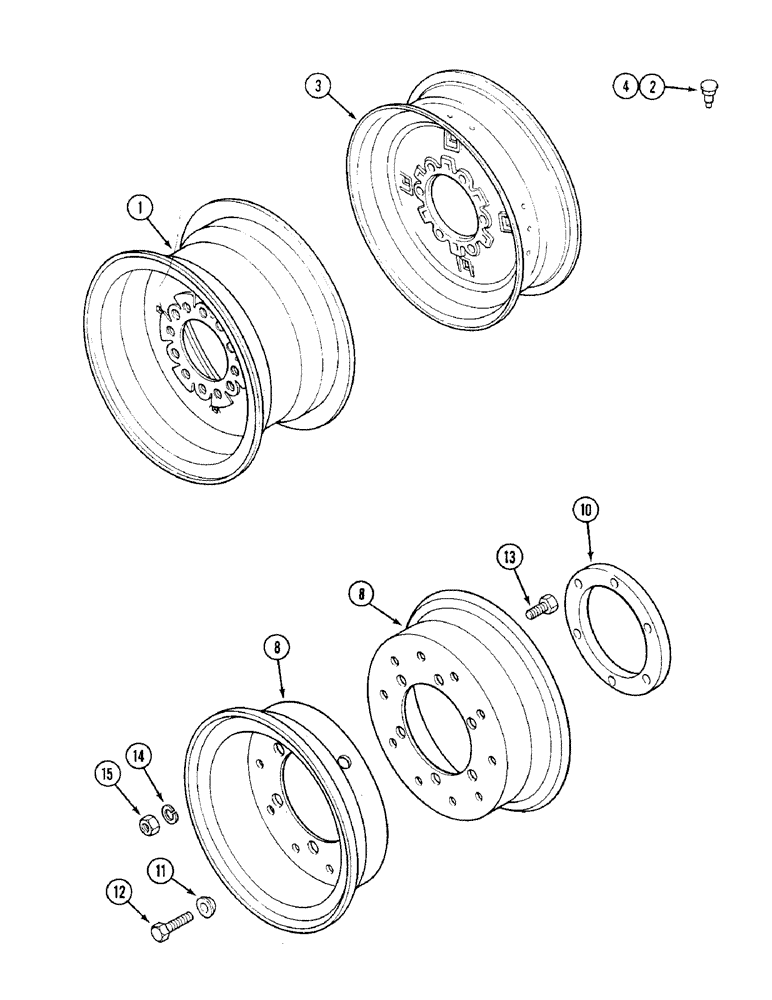

Запчасти Case IH 1394 (5-144) - FRONT WHEELS, LOW PROFILE SPECIAL (05) - STEERING

1

K309951

WHEEL

- front, 8.00 LBH x 15 inch (Takes 9.5L x 15 tire) (Replaces K952716)

2шт.

2

A38261

VALVE

- air, tire

2шт.

3

G57046

WHEEL ASSY.

WHEEL - front, 5.50F x 16 (Takes 7.50 - 1611 tires)

2шт.

4

A38261

VALVE

- air, tire

2шт.

8

NSS

NOT SOLD SEPARAT

WHEEL ASSEMBLY - front, 5.50 x 10 (Takes 9.00-10 tire)

2шт.

10

K910174

BUSHING

SPACER - front wheel

2шт.

11

K626687

WASHER

- wheel bolt, 1/2 inch (13 mm) Special

12шт.

12

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

13

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

20шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

20шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

20шт.
