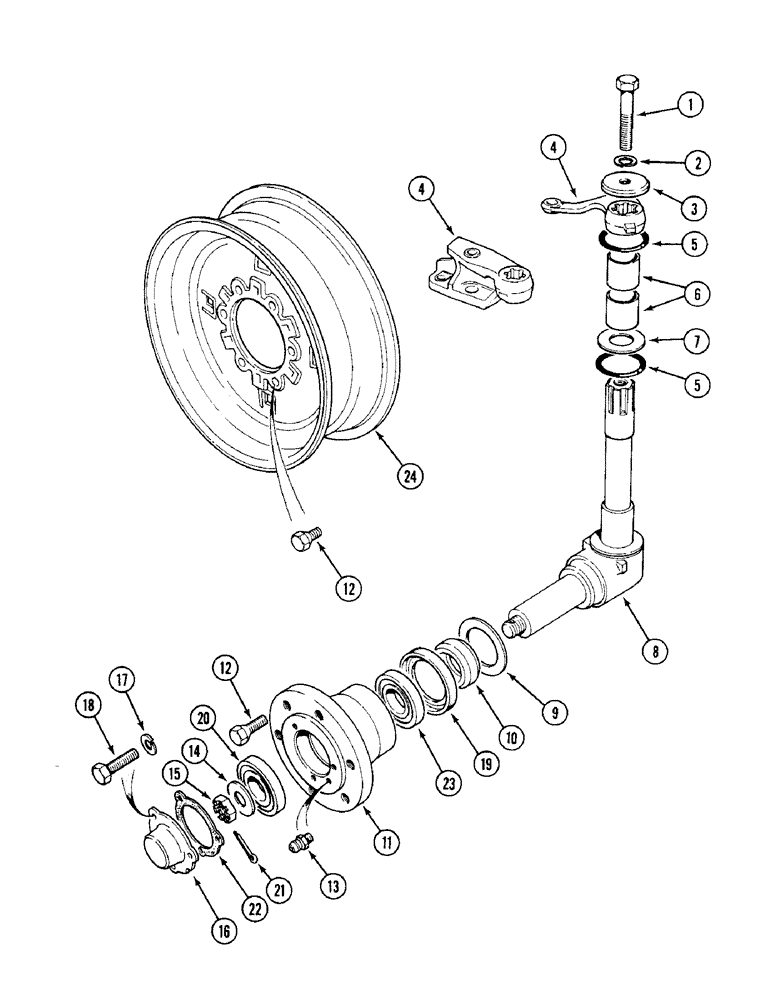

Запчасти Case IH 1394 (5-142) - FRONT HUBS, STUB AXLES AND WHEELS, TWO-WHEEL DRIVE TRACTOR (05) - STEERING

1

K601210

BOLT (SPREADER)

BOLT - 5/8 UNC x 2-3/4 inch

1шт.

1

K601213

BOLT

- 5/8 UNC x 3-1/4 inch

1шт.

2

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

K15595

WASHER

- 5/8 inch (16 mm) special

2шт.

4

K942525

LEVER

- steering, right-hand (Prior to P.I.N. 11503201)

1шт.

4

K200597

LEVER

- steering left-hand (Prior to P.I.N. 11503201)

1шт.

4

K208037

LEVER

- steering, right-hand (P.I.N. 11503201 and after)

1шт.

4

K208038

STEERING LEVER

LEVER - steering, left-hand (P.I.N. 11503201 and after)

1шт.

5

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

4шт.

6

K11598

BUSHING

- beam extension

4шт.

7

K33682

WASHER,35.24mm ID x 55.56mm OD x 4.78mm Thk

- thrust

2шт.

8

K262209

STEERING KNUCKLE

AXLE ASSEMBLY - stub, standard clearance, Includes: Ref. 9 & 10

2шт.

8

K262207

STEERING KNUCKLE

AXLE ASSEMBLY - stub, low profile special, Includes: Ref. 9 & 10

2шт.

8

K262211

SHAFT

AXLE ASSEMBLY - stub, high clearance, Includes: Ref. 9 & 10

2шт.

9

K906568

RING

SEAL - dirt

1шт.

10

K906569

SLEEVE

- oil seal

1шт.

10

K207397

SLEEVE

- oil seal

1шт.

11

K910176

HUB

- front

2шт.

12

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

BOLT - wheel, 1/2 UNC x 1 inch

12шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

14

K626321

WASHER

- idler shaft, 3/4 inch (19 mm)

2шт.

15

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - 3/4 inch, slotted special

2шт.

16

K908913

CAP

- hub

2шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

6шт.

18

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

6шт.

NSS

NOT SOLD SEPARAT

BEARING AND SEAL KIT - axle (Prior to P.I.N. 11504412), Includes: Ref. 19 - 22

2шт.

19

K623450

OIL SEAL

- oil, 2-1/8 x 3 x 1/2 inch (54 x 76 x 13 mm)

1шт.

20

NSS

NOT SOLD SEPARAT

KIT - bearing, Order 618023R91 & 618024R1

1шт.

21

K623603

PIN

- cotter, 5/32 x 1-1/8 inch

1шт.

22

K15344

GASKET,0.25mm Thk

- hub cap

1шт.

23

NSS

NOT SOLD SEPARAT

KIT - bearing, Order 618023R91 & 618024R1 (Prior to P.I.N. 11504412)

1шт.

NSS

NOT SOLD SEPARAT

BEARING AND SEAL KIT - axle (P.I.N. 11504412 and after), Includes: Ref. 19 - 23

2шт.

19

K623450

OIL SEAL

- oil, 2-1/8 x 3 x 1/2 inch (54 x 76 x 13 mm)

1шт.

20

NSS

NOT SOLD SEPARAT

KIT - bearing, Order 618023R91 & 618024R1

1шт.

21

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

22

K15344

GASKET,0.25mm Thk

- hub cap

1шт.

23

NSS

NOT SOLD SEPARAT

KIT - bearing, Order 160558C91 & 478793R1

1шт.

24

G57046

WHEEL ASSY.

WHEEL - front, 5.50F x 16, fits 7.50-16 tires

2шт.
