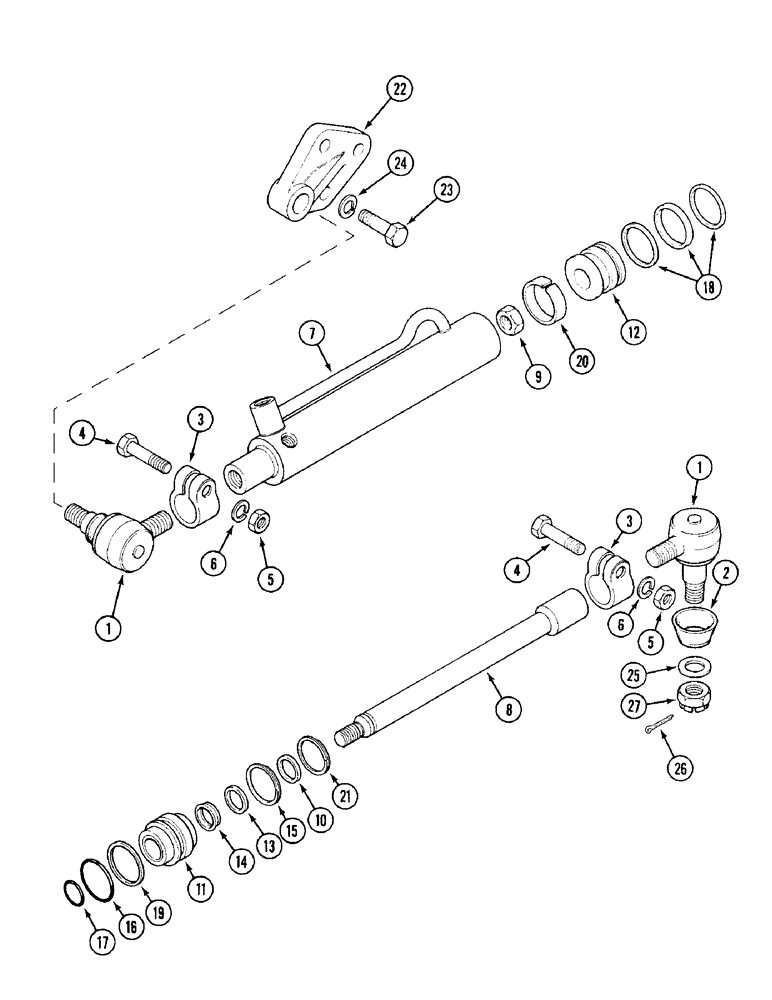

Запчасти Case IH 1394 (5-140) - STEERING CYLINDER ASSEMBLY - MFD, VEGETABLE SPECIAL PRIOR TO P.I.N. 11503201 (05) - STEERING

234466A1

STEERING CYLINDER,19.05mm Rod, 165.1mm Stroke

STEERING, Includes: Ref. 1 - 21

2шт.

234466A1R

REMAN-HYD CYLINDER

1394, (1/83-12/87)

2шт.

234466A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

A40962

BALL JOINT

END ASSEMBLY - male thread, Includes: Ref. 2

2шт.

2

A41424

SEAL

- dust cover

1шт.

3

A27080

CLAMP

ASSEMBLY - end, Includes: Ref. 4 - 6

2шт.

4

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- hex., 3/8 NF x 1-1/2 inch (Order 114-203)

1шт.

5

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8 inch NF (Order 129-123)

1шт.

6

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

8

NSS

NOT SOLD SEPARAT

CYLINDER - (Order 234466A1)

1шт.

9

131-1145

JAM NUT,5/8" - 18

NUT - self-locking hex., 9/16 inch NF

1шт.

10

A44641

SPACER,31.62mm ID x 34.37mm OD x 7.7mm L

- head, head

1шт.

11

D83189

GLAND

ASSEMBLY - cylinder, Includes: bushing

1шт.

12

D83190

PISTON

- cylinder

1шт.

D148100

GASKET KIT

KIT - cylinder repair, Includes: Ref. 13 - 20

1шт.

13

A44651

WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk

WIPER - rod

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - rod (Order D148100)

1шт.

15

102-23150

SNAP RING,#150, 1.591", Int, Spiral

RING - lock, gland

1шт.

16

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

Outer gland -218, 90 Duro, 1.234" ID x .139" Thk

1шт.

17

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

Rod to piston -113, 70 Duro, .549" ID x .103" Thk

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston (Order D148100)

1шт.

19

A45035

SEALING RING,34.88mm ID x 38mm OD x 1.58mm W

RING - backup

1шт.

20

NSS

NOT SOLD SEPARAT

RING - wear

1шт.

21

A44654

SNAP RING,#125, 1.188", Ext Spiral

RING - lock, outer

1шт.

22

N7525

BRACKET

- cylinder support

2шт.

23

614-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd

Bracket Hex, M14 x 40, 8.8, Full Thd

6шт.

24

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

6шт.

25

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 1/8 inch

4шт.

26

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

4шт.

27

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

4шт.
