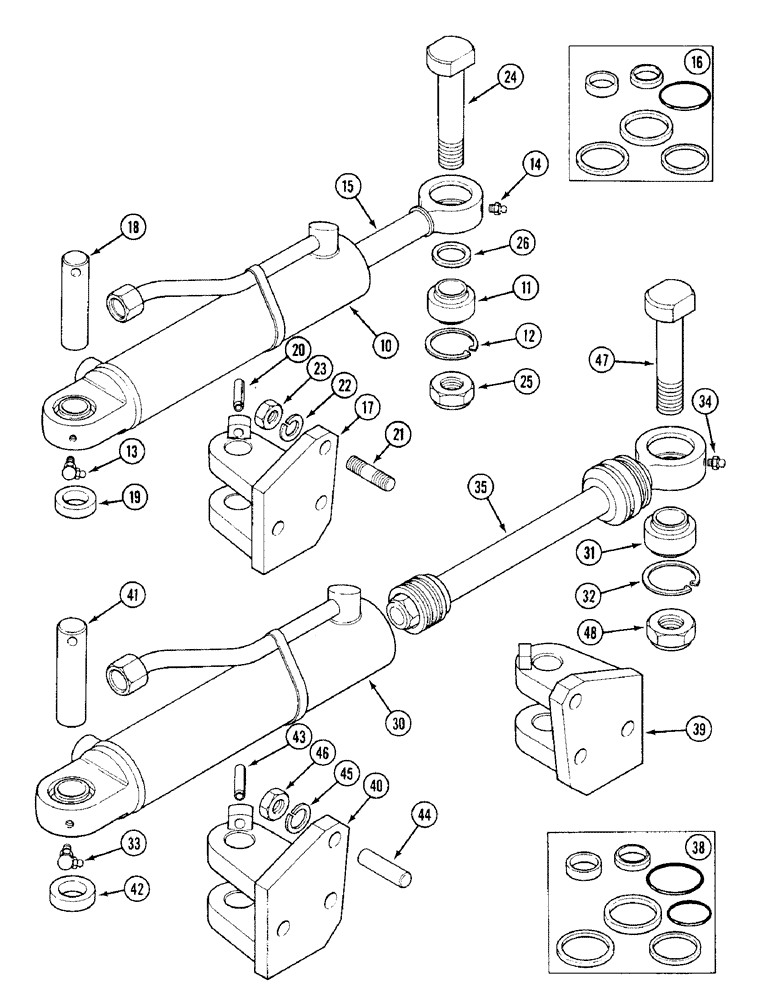

Запчасти Case IH 1394 (5-138) - STEERING CYLINDER, MFD TRACTORS - P.I.N. 11503001 AND AFTER (05) - STEERING

K262503

CYLINDER

ASSEMBLY - steering, left-hand, See Figure 5-139

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

11

1966059C1

BEARING CAP

BEARING - cylinder and piston rod

2шт.

12

K262195

RING, LOCKING

RING - snap

2шт.

13

713608R91

LUBE NIPPLE,90 Degree, M8 x 1

1шт.

14

A52236

LUBE NIPPLE,M8 x 1

FITTING - grease

2шт.

15

K262196

PISTON ROD

ROD - piston

1шт.

16

K262197

KIT

- repair (Piston, sleeve and seals) (Carraro 43423), Includes: Ref. 16

1шт.

16

K262193

SEAL

KIT - seals (O-rings, seals etc.) (Carraro 43421)

1шт.

17

K395127

BRACKET

- cylinder anchor left-hand

1шт.

18

K395107

PIN,22mm OD x 97mm L

- cylinder to bracket (Carraro 119298)

1шт.

19

1966158C1

SPACER

- pivot pin

1шт.

20

K395057

PIN

- 8 x 36 mm (Carraro 24445)

1шт.

21

K395109

STUD

- M14, axle housing

3шт.

22

933828R1

BELLEVILLE WASHER,M14 Bolt Size x 28.6mm OD x 1.5mm Thk

WASHER - lock, 14 mm

3шт.

23

905873R1

NUT,M14 x 1.5, G8

NUT - M14

3шт.

24

K395106

BOLT

- M22 x 100 mm

1шт.

25

905877R1

NUT,M22 x 1.5, G8

NUT - self-locking, M22

1шт.

26

K395146

SPACER

- pivot bolt

1шт.

K262503

CYLINDER

ASSEMBLY - steering, left-hand, See Figure 5-139, MFD vegetable special - P.I.N. 11503001 and after, Includes: Ref. 30 - 38

1шт.

K262504

CYLINDER

ASSEMBLY - steering, right hand, See Figure 5-139, MFD vegetable special - P.I.N. 11503001 and after, Includes: Ref. 30 - 38

1шт.

30

NSS

NOT SOLD SEPARAT

TUBE - cylinder, MFD vegetable special - P.I.N. 11503001 and after

1шт.

31

1966059C1

BEARING CAP

BEARING - cylinder and piston rod, MFD vegetable special - P.I.N. 11503001 and after

2шт.

32

K262195

RING, LOCKING

RING - snap, MFD vegetable special - P.I.N. 11503001 and after

2шт.

33

713608R91

LUBE NIPPLE,90 Degree, M8 x 1

MFD vegetable special - P.I.N. 11503001 and after 90º, M8 x 1

1шт.

34

A52236

LUBE NIPPLE,M8 x 1

FITTING - grease, MFD vegetable special - P.I.N. 11503001 and after

2шт.

35

K262196

PISTON ROD

ROD - piston, MFD vegetable special - P.I.N. 11503001 and after

1шт.

36

K262197

KIT

- repair (Piston, sleeve and seals) (Carraro 43423), MFD vegetable special - P.I.N. 11503001 and after

1шт.

37

K311656

PISTON

MFD vegetable special - P.I.N. 11503001 and after

1шт.

38

K262480

SEAL KIT

- seals (O-rings, seals etc.), MFD vegetable special - P.I.N. 11503001 and after

1шт.

39

K395143

BRACKET

- cylinder anchor, (Carraro 119297) Right-hand, MFD vegetable special - P.I.N. 11503001 and after

1шт.

40

K395127

BRACKET

- cylinder anchor, (Carraro 118998) left-hand, MFD vegetable special - P.I.N. 11503001 and after

1шт.

41

K395107

PIN,22mm OD x 97mm L

- cylinder to bracket, MFD vegetable special - P.I.N. 11503001 and after

2шт.

42

1966158C1

SPACER

- spacer pivot pin, MFD vegetable special - P.I.N. 11503001 and after

2шт.

43

K395057

PIN

- 8 x 36 mm (Carraro 24445), MFD vegetable special - P.I.N. 11503001 and after

2шт.

44

K395109

STUD

- M14, axle housing (Carraro 71288), MFD vegetable special - P.I.N. 11503001 and after

6шт.

45

933828R1

BELLEVILLE WASHER,M14 Bolt Size x 28.6mm OD x 1.5mm Thk

WASHER - 14 mm, MFD vegetable special - P.I.N. 11503001 and after

6шт.

46

905873R1

NUT,M14 x 1.5, G8

NUT - M14, MFD vegetable special - P.I.N. 11503001 and after

6шт.

47

K395106

BOLT

- M22 x 100 mm, MFD vegetable special - P.I.N. 11503001 and after

2шт.

48

905877R1

NUT,M22 x 1.5, G8

NUT - M22, MFD vegetable special - P.I.N. 11503001 and after

2шт.
