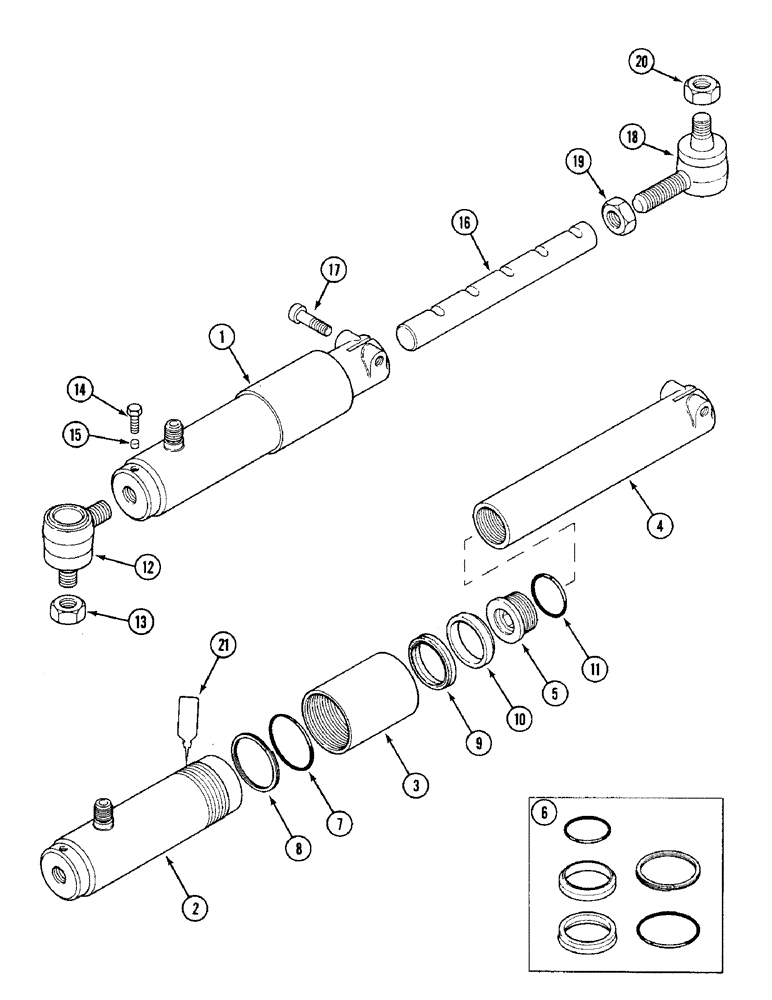

Запчасти Case IH 1394 (5-134) - STEERING CYLINDER ASSEMBLIES, TWO-WHEEL DRIVE TRACTORS, P.I.N. 11504412 AND AFTER (05) - STEERING

K308653

CYLINDER

ASSEMBLY - steering, Includes: Ref. 2 - 11

2шт.

2

K308655

CYLINDER

HOUSING - cylinder

1шт.

3

K308665

SLEEVE

- housing

1шт.

4

K308657

PISTON

ROD - piston

1шт.

5

K307345

PLUG

CAP - piston rod

1шт.

6

NSS

NOT SOLD SEPARAT

KIT - seals, Includes: Ref. 7 - 11

1шт.

7

238-5141

O-RING,0.103" Thk x 2.3" ID, -141, Cl 5, 75 Duro

1шт.

8

K628924

RING

- back up

1шт.

9

K654865

OIL SEAL

- oil

1шт.

10

K654910

WIPER,50mm ID x 60mm OD x 10mm Thk

SEAL - scraper

1шт.

11

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Elbow

1шт.

12

K207720

BALL JOINT

SOCKET - ball housing, 64 to 88 inch track widths

2шт.

13

131-377

LOCK NUT,5/8"-11, GC

NUT - lock, ball joint, 5/8 inch UNC

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

1шт.

15

K656781

PAD

- nylon

1шт.

16

K307346

PISTON

ROD - track, 52 to 72 inch track

2шт.

16

K308662

ROD

- track, 56 to 80 inch track

2шт.

17

K653659

SCREW

- M10, piston rod

2шт.

18

K207940

BALL JOINT

SOCKET - ball track rod

2шт.

19

K622500

LOCK NUT

- lock, 3/4 inch

1шт.

20

131-377

LOCK NUT,5/8"-11, GC

NUT - lock, ball joint, 5/8 inch UNC

1шт.

21

K962357

ADHESIVE

SEALANT - loctite 542

1шт.
