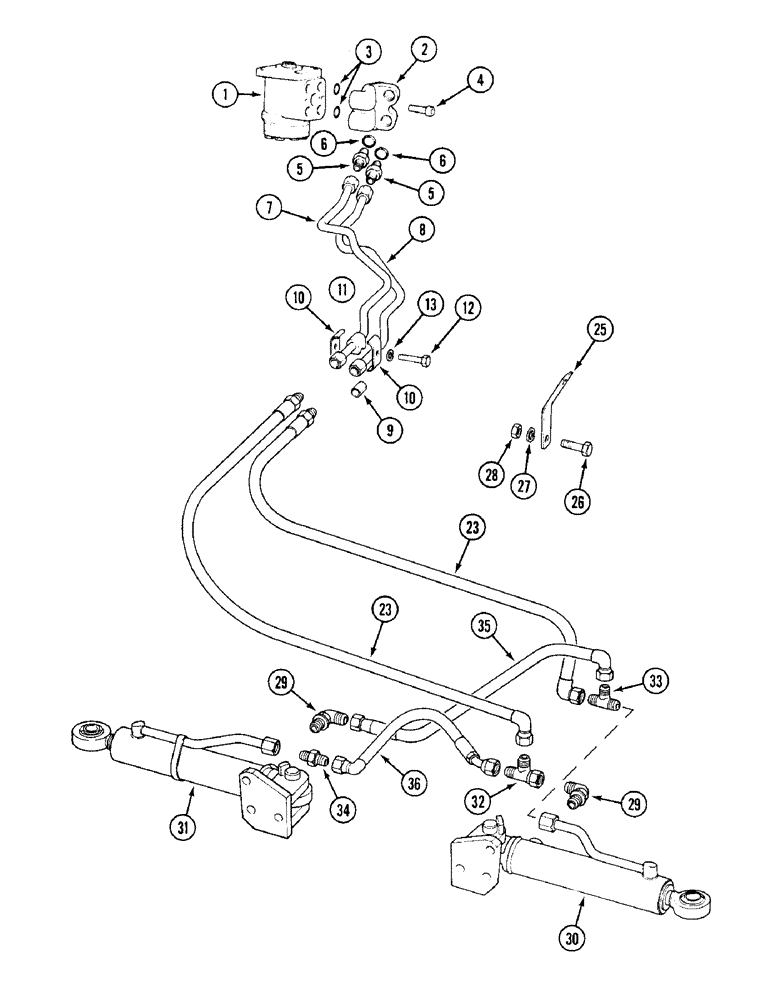

Запчасти Case IH 1394 (5-128) - STEERING CYLINDER AND TUBES, MFD VEGETABLE SPECIAL WITH CAB, P.I.N. 11503201 AND AFTER (05) - STEERING

1

K207419

VALVE

ASSEMBLY - steering, Orbitol OSP125, See Figure 5-120

1шт.

2

K207388

BLOCK

- valve connections

1шт.

3

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

4шт.

4

K653941

HEX SOC SCREW,M10 x 1 x 30mm, Cl 12.9

- M10 x 30 mm

2шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

6

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

7

K207442

PIPE

TUBE - upper

1шт.

8

K207443

PIPE

TUBE - lower

1шт.

9

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE - nylon

2шт.

10

K951982

SHIM

CLAMP - tube

2шт.

11

K951993

SLEEVE

- tube, nylon

2шт.

12

K650664

BOLT

- M10 x 45 mm

1шт.

13

892-11010

LOCK WASHER,M10

1шт.

23

K210214

HOSE

TUBE - flexible, 3/4 UNF x 36 inch

2шт.

25

K330092

BRACKET

- clamp support

1шт.

26

K650364

BOLT

- M10 x 45 mm

1шт.

27

892-11010

LOCK WASHER,M10

1шт.

28

825-1410

NUT,M10, Cl 8

1шт.

29

K395116

FITTING

ELBOW - M18 x 3/4 inch UNF(Carraro 117895)

2шт.

30

K311680

CYLINDER

ASSEMBLY - steering, left-hand, See Figure 5-138

1шт.

31

K262504

CYLINDER

ASSEMBLY - steering, right hand, See Figure 5-138

1шт.

32

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- swivel, 3/4-16 inch flare branch x flare x swivel

1шт.

33

K622160

FITTING

TUBE FITTING - 3/4 inch UNF

1шт.

34

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, 3/4-16 inch flare

1шт.

35

K210343

HOSE

TUBE - flexible, 3/4 UNF x 23-1/2 inch

1шт.

36

K210344

HOSE

TUBE - flexible, 3/4 UNF x 3-1/2 inch x 45 degree

1шт.
