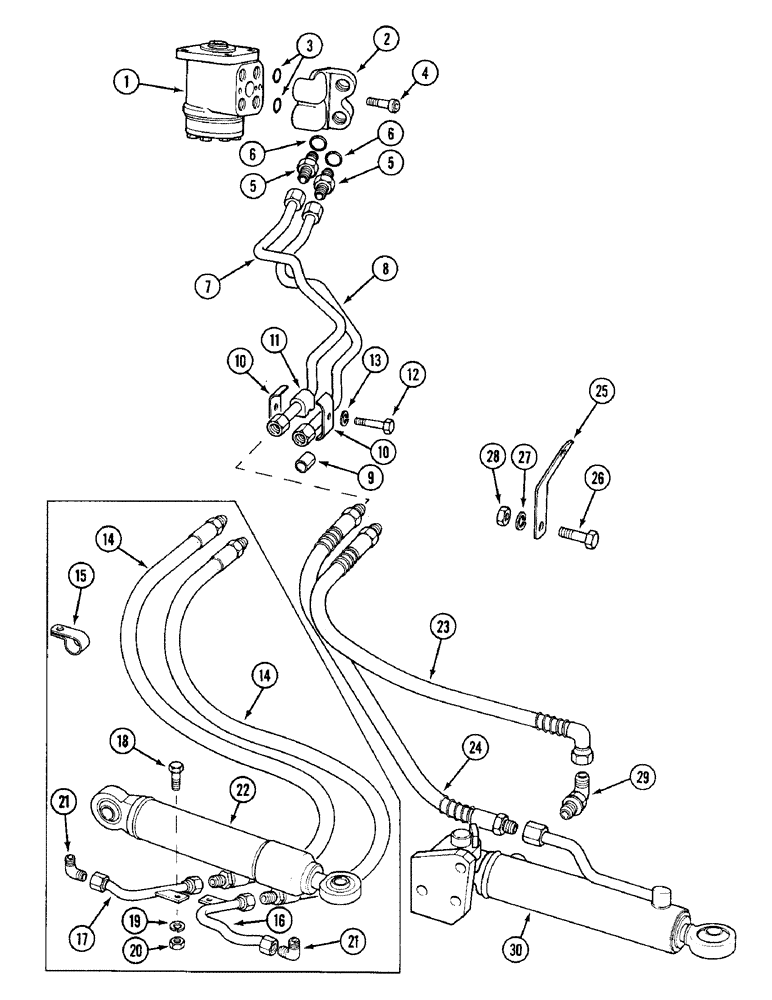

Запчасти Case IH 1394 (5-126) - STEERING CYLINDER AND TUBES, MFD TRACTORS WITH CAB (05) - STEERING

1

K207419

VALVE

ASSEMBLY - steering, Orbitrol OSP125, See Figure 5-120

1шт.

2

K207388

BLOCK

- valve connections

1шт.

3

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

Block to valve -118, 90 Duro, .862" ID x .103" Thk

4шт.

4

K653941

HEX SOC SCREW,M10 x 1 x 30mm, Cl 12.9

- M10 x 30 mm

2шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

6

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

7

K207442

PIPE

TUBE - upper

1шт.

8

K207443

PIPE

TUBE - lower

1шт.

9

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE - nylon

2шт.

10

K951982

SHIM

CLAMP - tube

2шт.

11

K951993

SLEEVE

- tube

2шт.

12

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm

1шт.

13

892-11010

LOCK WASHER,M10

1шт.

14

K204854

HOSE

TUBE - flexible, tractors prior to P.I.N. 11503001

2шт.

15

K621686

CLIP

- tube, tractors prior to P.I.N. 11503001

1шт.

16

K260227

PIPE

TUBE - left-hand (Carraro 101521), tractors prior to P.I.N. 11503001

1шт.

17

K260226

PIPE

TUBE - right-hand (Carraro 101520), tractors prior to P.I.N. 11503001

1шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, tractors prior to P.I.N. 11503001

1шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Tractors prior to P.I.N. 11503001 M8

1шт.

20

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Tube Screw (Carraro 22115), Tractors prior to P.I.N. 11503001

1шт.

21

K260225

FITTING

ELBOW - cylinder tube (Carraro 101522), tractors prior to P.I.N. 11503001

2шт.

22

K260281

STEERING CYLINDER

CYLINDER ASSEMBLY - steering (Carraro 104773), See Figure 5-136, tractors prior to P.I.N. 11503001

1шт.

K621686

CLIP

- tube, hose, tractors prior to P.I.N. 11503001

1шт.

23

K210214

HOSE

TUBE - flexible, 3/4 UNF x 36 inch, tractors P.I.N. 11503001 and after

1шт.

24

K210218

HOSE

TUBE - flexible, 3/4 UNF x 42 inch, tractors P.I.N. 11503001 and after

1шт.

25

K330092

BRACKET

- clamp support, tractors P.I.N. 11503001 and after

1шт.

26

K650364

BOLT

- M10 x 45 mm, tractors P.I.N. 11503001 and after

1шт.

27

892-11010

LOCK WASHER,M10

Tractors P.I.N. 11503001 and after M10

1шт.

28

825-1410

NUT,M10, Cl 8

Tactors P.I.N. 11503001 and after M10, Cl 8

1шт.

29

K395116

FITTING

ELBOW - M18 x 3/4 inch UNF (Carraro 117895), tractors P.I.N. 11503001 and after

1шт.

30

K262503

CYLINDER

ASSEMBLY - steering, left-hand, See Figure 5-138, tractors P.I.N. 11503001 and after

1шт.
