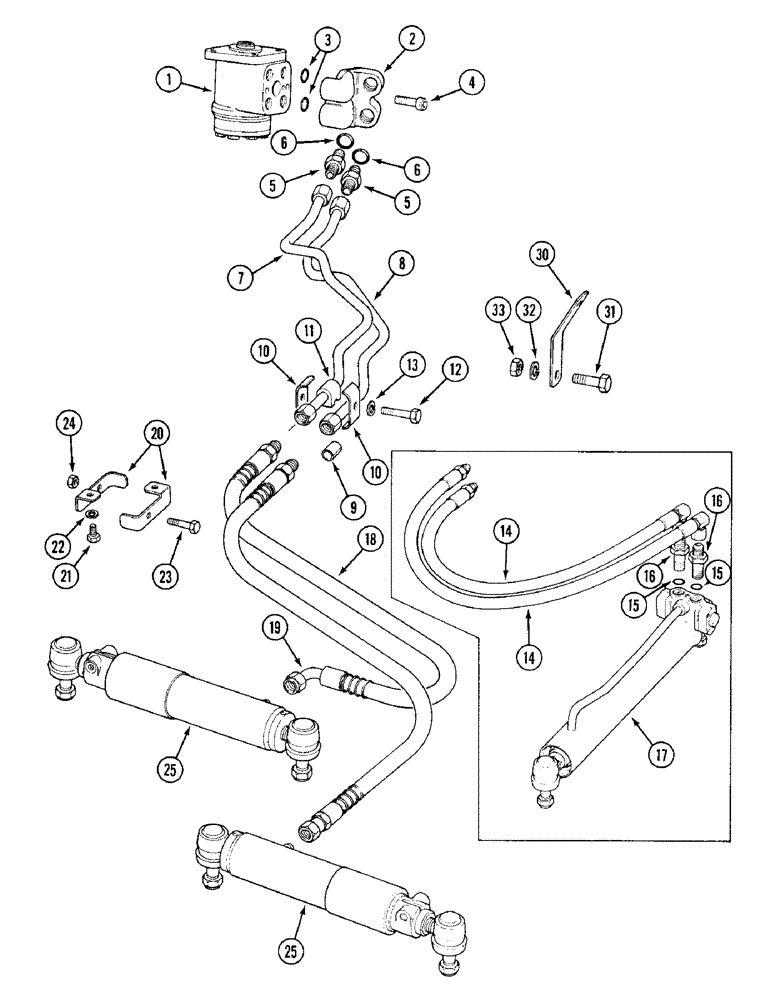

Запчасти Case IH 1394 (5-124) - STEERING CYLINDER AND TUBES, TWO-WHEEL DRIVE TRACTORS WITH CAB (05) - STEERING

1

K207419

VALVE

ASSEMBLY - steering, Orbitol OSP-125

1шт.

2

K207388

BLOCK

- valve connections

1шт.

3

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

4шт.

4

K653941

HEX SOC SCREW,M10 x 1 x 30mm, Cl 12.9

- M10 x 30 mm

2шт.

4

B92570

BOLT

- allen headed, (For recessed Holes)

2шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

6

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

7

K207442

PIPE

TUBE - upper

1шт.

8

K207443

PIPE

TUBE - lower

1шт.

9

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE - nylon

2шт.

10

K951982

SHIM

CLAMP - tube

2шт.

11

K951993

SLEEVE

- tube

2шт.

12

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm

1шт.

13

892-11010

LOCK WASHER,M10

1шт.

14

K207517

HOSE

TUBE - flexible, tractors prior to P.I.N. 11504412

2шт.

15

K623591

O-RING

- 5/8 inch (16 mm) ID, tractors prior to P.I.N. 11504412

2шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, tractors prior to P.I.N. 11504412

2шт.

17

K210207

STEERING CYLINDER

CYLINDER ASSEMBLY - steering (P.I.N. 11490224 and after), tractors prior to P.I.N. 11504412

1шт.

18

K210239

HOSE

TUBE - flexible, 3/4 UNF x 40 inch, tractor P.I.N. 11504412 and after

1шт.

19

K210240

HOSE

TUBE - flexible, 3/4 UNF x 45 inch, tractor P.I.N. 11504412 and after

1шт.

20

K656965

CLAMP

- tube, tubes, tractor P.I.N. 11504412 and after

2шт.

21

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch, tractor P.I.N. 11504412 and after

2шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Tractor P.I.N. 11504412 and after 1/4"

3шт.

23

K600006

BOLT

- 1/4 UNC x 1-1/2 inch, tractor P.I.N. 11504412 and after

1шт.

24

231-1444

NUT,1/4"-20, GB

NUT, LOCK, , Tractor P.I.N. 11504412 and after 1/4"-20, GB

1шт.

25

K308653

CYLINDER

ASSEMBLY - steering, See Figure 5-134, tractor P.I.N. 11504412 and after

1шт.

30

K330092

BRACKET

- clamp support, tractor P.I.N. 11504412 and after

1шт.

31

K650364

BOLT

- M10 x 45 mm, tractor P.I.N. 11504412 and after

1шт.

32

892-11010

LOCK WASHER,M10

Tractor P.I.N. 11504412 and after M10

1шт.

33

825-1410

NUT,M10, Cl 8

Tractor P.I.N. 11504412 and after M10, Cl 8

1шт.
