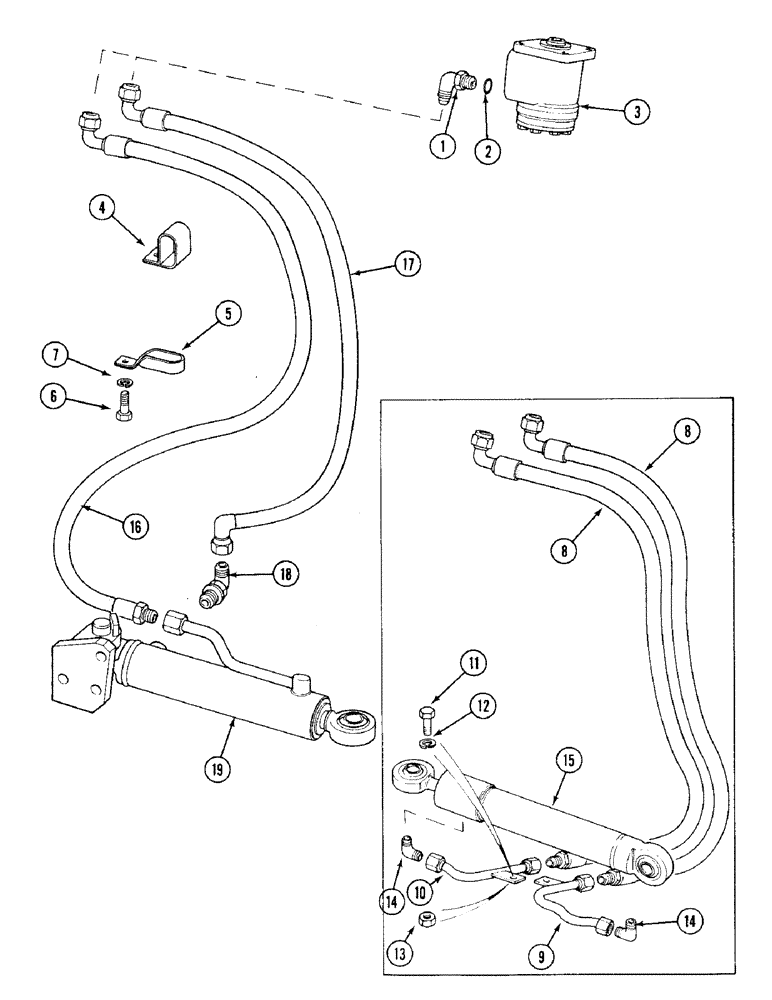

Запчасти Case IH 1394 (5-114) - STEERING CYLINDER AND TUBES, MFD TRACTORS WITHOUT CAB (05) - STEERING

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

2шт.

2

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

3

K207419

VALVE

ASSEMBLY - steering (See figure 5-108)

1шт.

4

K628367

CLIP

- tube

1шт.

5

K628368

CLIP

- tube

1шт.

6

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 UNC x 1/2 inch

1шт.

7

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

K204853

HOSE

TUBE - flexible, 3/4 UNF x 59 inch, MFD tractors prior to P.I.N. 11503001

2шт.

9

K260227

PIPE

TUBE - rigid, left-hand (Carraro 101521), MFD tractors prior to P.I.N. 11503001

1шт.

10

K260226

PIPE

TUBE - rigid, right-hand (Carraro 101520), MFD tractors prior to P.I.N. 11503001

1шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, tube, MFD tractors prior to P.I.N. 11503001

1шт.

12

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , MFD tractors prior to P.I.N. 11503001 M8

1шт.

13

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Tube Bolt (Carraro 22115), MFD tractors prior to P.I.N. 11503001

1шт.

14

K260225

FITTING

ELBOW - cylinder tube (Carraro 101522), MFD tractors prior to P.I.N. 11503001

2шт.

15

K260281

STEERING CYLINDER

CYLINDER ASSEMBLY - steering (Carraro 104773), See Figure 5-136, MFD tractors prior to P.I.N. 11503001

1шт.

16

K210215

HOSE

TUBE - flexible, 3/4 UNF x 62 inch, MFD tractors P.I.N. 11503001 and after

1шт.

17

K206875

HOSE

TUBE - flexible, 3/4 UNF x 59 inch, MFD tractors P.I.N. 11503001 and after

1шт.

18

K395116

FITTING

ELBOW - M18 x 3/4 inch UNF (Carraro 117895), MFD tractors P.I.N. 11503001 and after

1шт.

19

K262503

CYLINDER

ASSEMBLY - steering, (Carraro 119900), See Figure 5-136, MFD tractors P.I.N. 11503001 and after

1шт.
