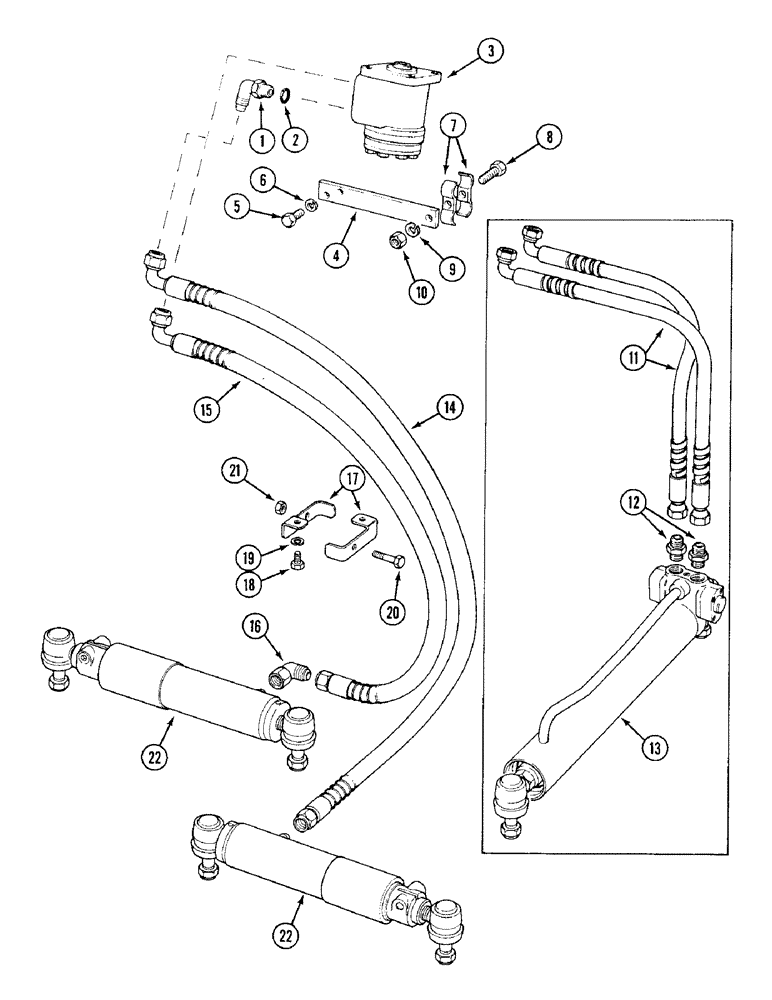

Запчасти Case IH 1394 (5-112) - POWER STEERING CYLINDER AND TUBES, TWO-WHEEL DRIVE TRACTORS WITHOUT CAB (05) - STEERING

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

2шт.

2

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

3

K207419

VALVE

ASSEMBLY - steering (See figure 5-108)

1шт.

4

K302459

SUPPORT

STRIP - support

1шт.

5

K650342

BOLT

- M8 x 20 mm

2шт.

6

592-6

WASHER

- lock, 8 mm

2шт.

7

K950703

SHIM

CLIP - tube

2шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

9

280136

NUT,3/8"-16, G8

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

K204279

HOSE

TUBE - f flexible, 3/4 UNF x 37 inch, two-wheel drive tractors prior to P.I.N. 11504412

2шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, two-wheel drive tractors prior to P.I.N. 11504412

2шт.

13

K210207

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, See Figure 5-132, two-wheel drive tractors prior to P.I.N. 11504412

2шт.

14

K210241

HOSE

TUBE - flexible, left-hand, 3/4 UNF x 61 inch, two-wheel drive tractors P.I.N. 11504412 and after

1шт.

15

K210242

HOSE

TUBE - flexible, right-hand, 3/4 UNF x 1 inch, two-wheel drive tractors P.I.N. 11504412 and after

1шт.

16

K622115

NUT

ELBOW - swivel nut, 3/4 inch UNF, two-wheel drive tractors P.I.N. 11504412 and after

1шт.

17

K656965

CLAMP

- tube, two-wheel drive tractors P.I.N. 11504412 and after

2шт.

18

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 UNC x 1/2 inch, two-wheel drive tractors P.I.N. 11504412 and after

2шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Two-wheel drive tractors P.I.N. 11504412 and after 1/4"

2шт.

20

K600006

BOLT

- 1/4 UNC x 1-1/2 inch, two-wheel drive tractors P.I.N. 11504412 and after

1шт.

21

231-1444

NUT,1/4"-20, GB

NUT, LOCK, , TWD tractors P.I.N. 11504412 and after 1/4"-20, GB

1шт.

22

K308653

CYLINDER

ASSEMBLY - steering, See Figure 5-134, two-wheel drive tractors P.I.N. 11504412 and after

2шт.
