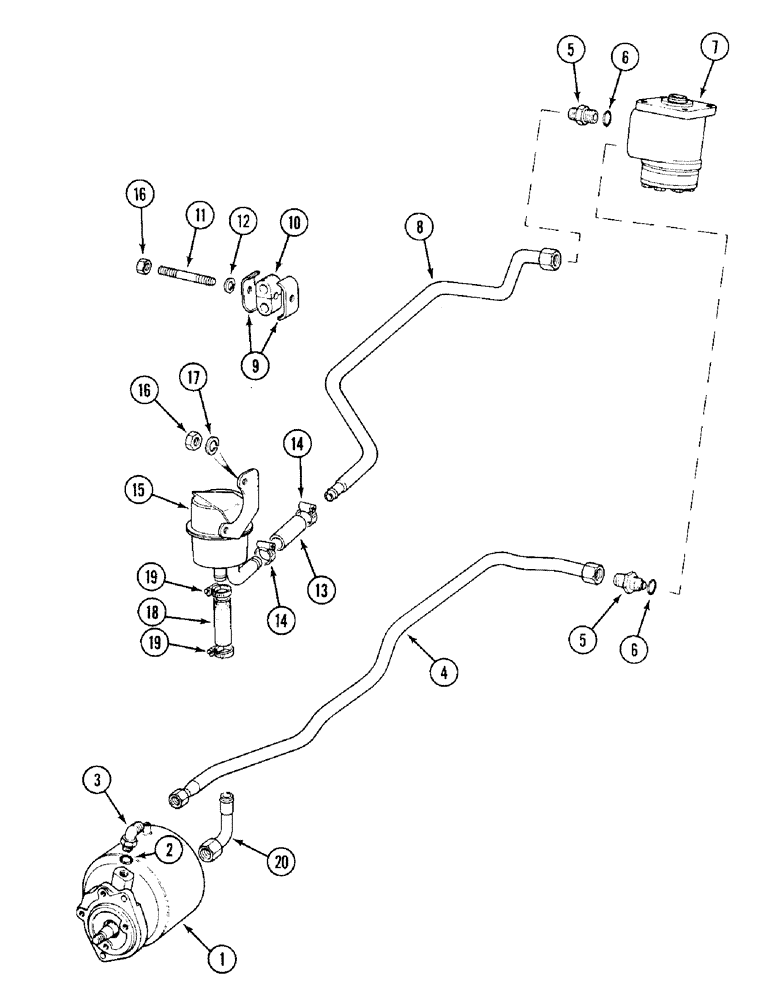

Запчасти Case IH 1394 (5-110) - STEERING PUMP AND TUBES, TRACTORS WITHOUT CAB (05) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY, See Figure 5-130

1шт.

3

K622110

FITTING

ELBOW - 9/16 inch UNF

1шт.

4

K201661

PIPE,0.625" DIA

TUBE - pump outlet

1шт.

5

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss

2шт.

6

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

7

K207419

VALVE

ASSEMBLY - steering, OSP125, See Figure 5-108

1шт.

8

K204349

PIPE

TUBE - pump return

1шт.

9

K951982

SHIM

CLAMP - tube

2шт.

10

K951993

SLEEVE

- rubber

2шт.

11

K201667

STUD

- special, 3/8 inch UNC

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

K626809

HOSE

- return connector, 1/2 x 2-5/8 inch (13 x 67 mm)

1шт.

14

K622024

CLAMP

CLIP - hose, 3/4 inch (19 mm)

2шт.

15

K302508

TANK

RESERVOIR - steering fluid

1шт.

16

280136

NUT,3/8"-16, G8

3шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

K204350

HOSE

- 1/2 x 3 inch (13 x 76 mm)

1шт.

19

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

20

K204351

PIPE,0.625" OD x 4.5, 3.187" L

TUBE - pump inlet

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
